ASTRA PROFILE 600 IP
![](/Admin/Public/GetImage.ashx?crop=5&height=70&width=120&Compression=75&DoNotUpscale=true&image=/Files/Images/brand-logos/prolights.png)
7° to 62° linear zoom
4-layer motorized framing shutters, Linear CMY+CTO, 5,600K high CRI filter, animation wheel, gobo and colour wheels, one frost filter, prism and iris

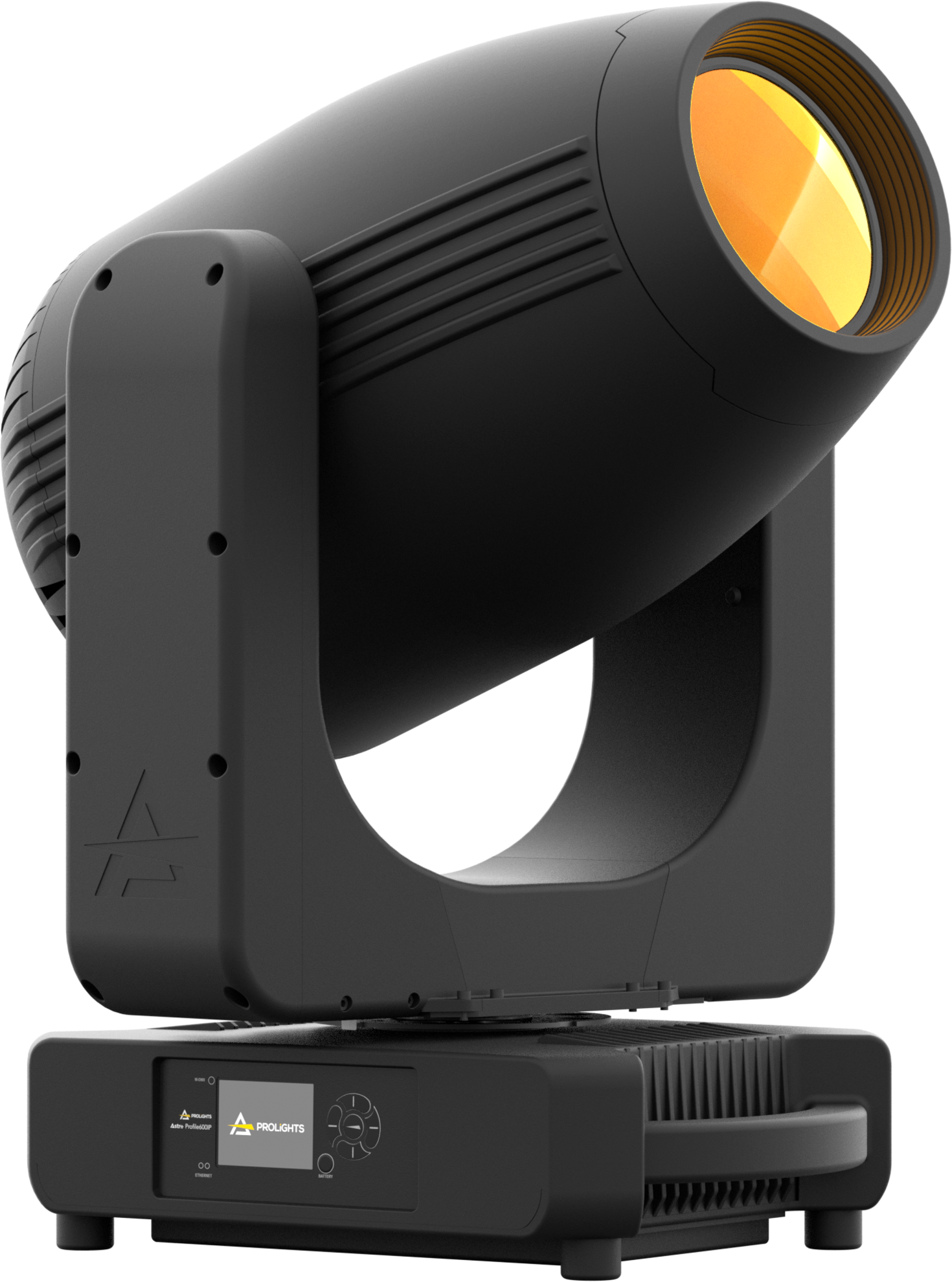

The Astra Profile600IP is a bright, waterproofed (IP65) LED profile moving light, designed for any large-scale touring applications and exterior installations.
Despite its waterproof exterior, this unit is tremendously bright and offers a superior evenness compared to other fixtures in the same class.
Its light source delivers a pure white light emission at 6,500K, reaching 21,200 lumens whilst achieving a flat field beam projection.
The Astra Profile600IP's optical system moves linearly from 7° to 62°, and it's equipped with a brand-new 600W LED source
The extensive feature set of the Astra Profile600IP includes a 4-layer motorized framing system, linear CMY and CTO, 5,600K high CRI filter, colour and gobo wheels, frost filter, prism, and an iris.
Features:
IP65 LED Moving Profile equipped with a 600W long life LED source (6,500K)
7° to 62° linear zoom
4-layer motorized framing shutters, Linear CMY+CTO, 5,600K high CRI filter, animation wheel, gobo and colour wheels, one frost filter, prism and iris
- Source: 600W
- White LED CCT: 6.500K Luminous flux: (7°) 14'877 lm - (62°) 21'200 lm
- Lux: (7°) 57'569 lx - (62°) 1'144 lx @5 m
- CRI: > 70 (CCT 5.600K and CRI > 90 with high CRI filter on color wheel)
- Source life expectancy: >30.000 h
OPTICS:
- Zoom: 7° - 62° motorised linear zoom
- Lens diameter: 150mm
- Lens type: HD anti-reflection lenses with achromatic coating
- Focus: motorised
COLOUR SYSTEM:
- Colour mixing: linear CMY
- CCT: linear CTO correction 2.700 K ~ 6.500 K
- Colour wheel: open + 5,600K high CRI filter + 6 colour filters
- Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
- Animation wheel: animation wheel with CW and CCW rotation
- Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
- Gobo size: outer: 29,9 mm - image: 22 mm - thickness: up to 3 mm
- Circular prism: 4f with bi-directional rotation, indexing
- Frost: linear 0 - 100% frost filter
- Iris: 5 - 100 % motorised iris
- Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
- Pan angle: 540°
- Tilt angle: 270°
- Pan/Tilt resolution: bit 8 / 16-bit
- Feedback: automatic repositioning after accidental movement
- Body: weatherproof IP65 construction
- Body colour: black
- Protocols: DMX512, RDM, ArtNet, sACN, W-DMX + CRMX
- DMX channels: 29 / 39 / 54 channel
- Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
- Other:16bit control of dimmer and colour
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Display battery: self-charging battery backup
- Operating temperature: -20° ~ +45°
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 600 ~ 50.000 Hz
- Mains power supply:100-240V - 50/60Hz
- Max power consumption: 750W
- Power factor: >0,97
- Inrush current: 240VAC/34.7A, 115VAC/18.4A
- IP rating: 65 for temporary outdoor use (*)
- Cooling: combination of heat pipe cooling system and low noise fan
- Suspension and fixing: any position with quick-lock omega brackets
- Pan / tilt lock: for transportation and maintenance
- Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
- Data connection: IP65 Art-Net RJ45 IN/OUT
- Power connection: Seetronic powerCON TRUE IP65 IN

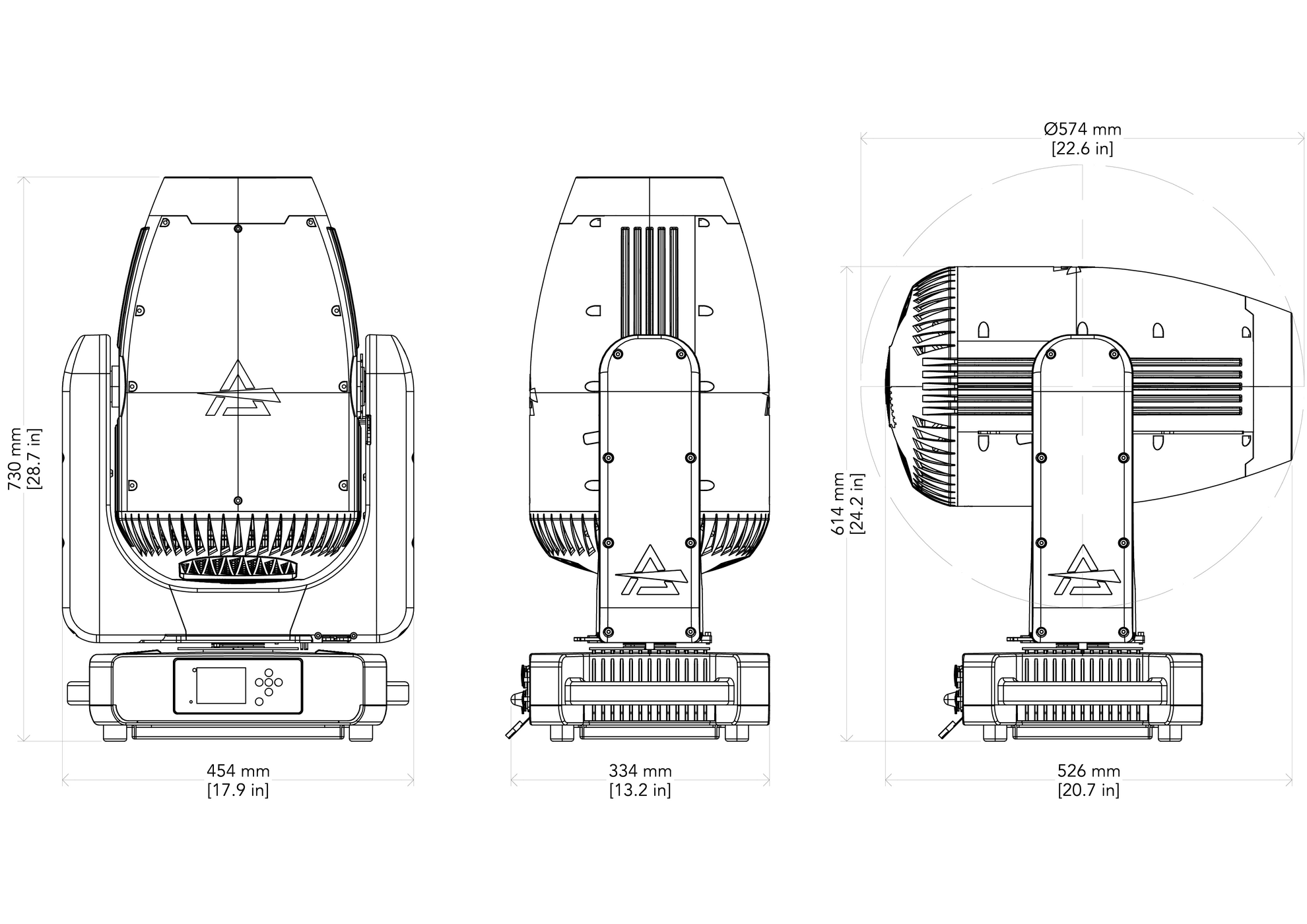

- Dimensions (WxHxD): 454x730x334mm
- Weight: 45,6 kg
(*)
NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.
Certifications / Approvals: CE, UKCA, RCM
BOX CONTENT- 1 x ASTRAPROFILE600IP
- 1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
- 2 x OSIP
- 1 x Antenna
- User Manual
