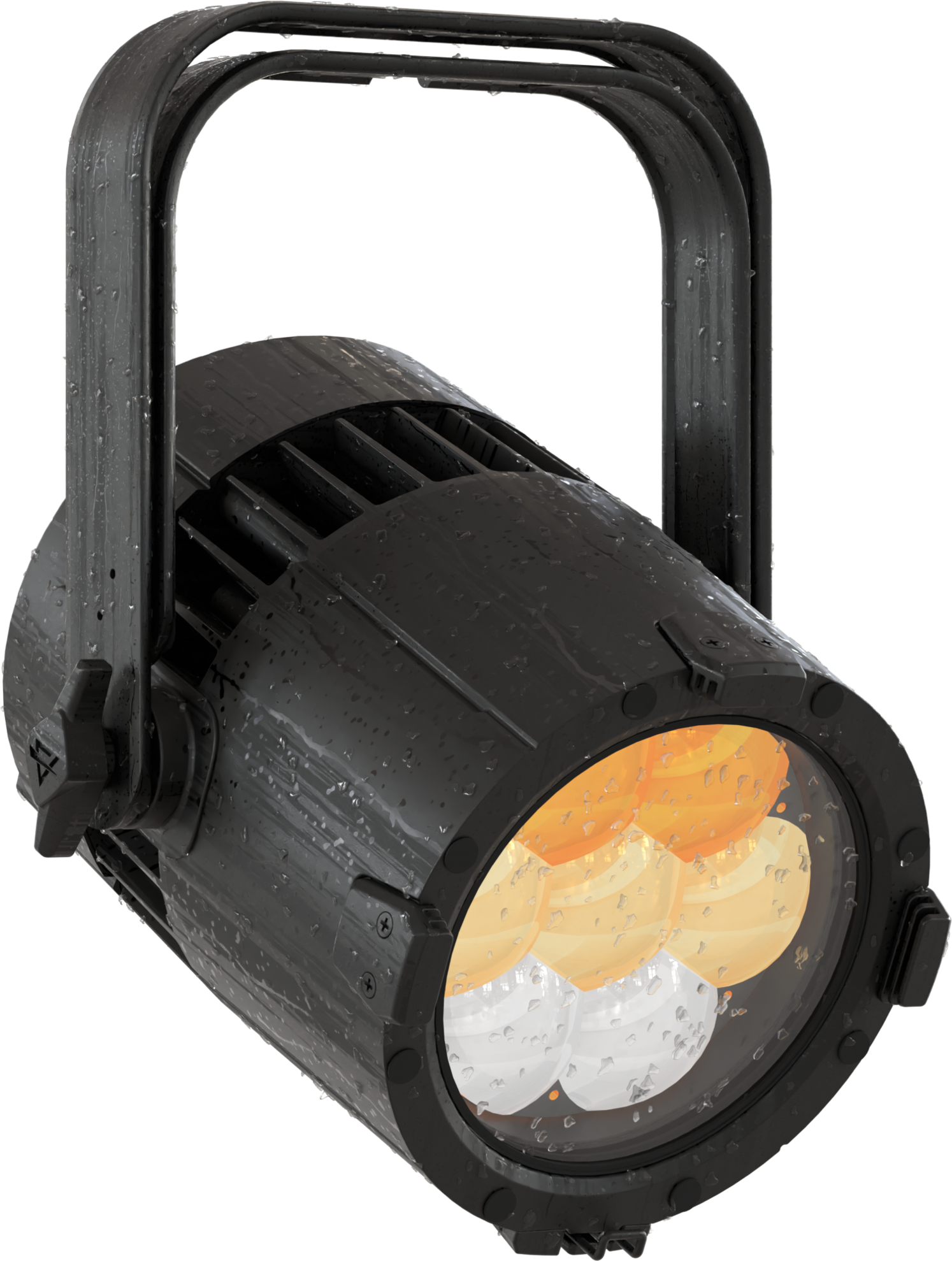

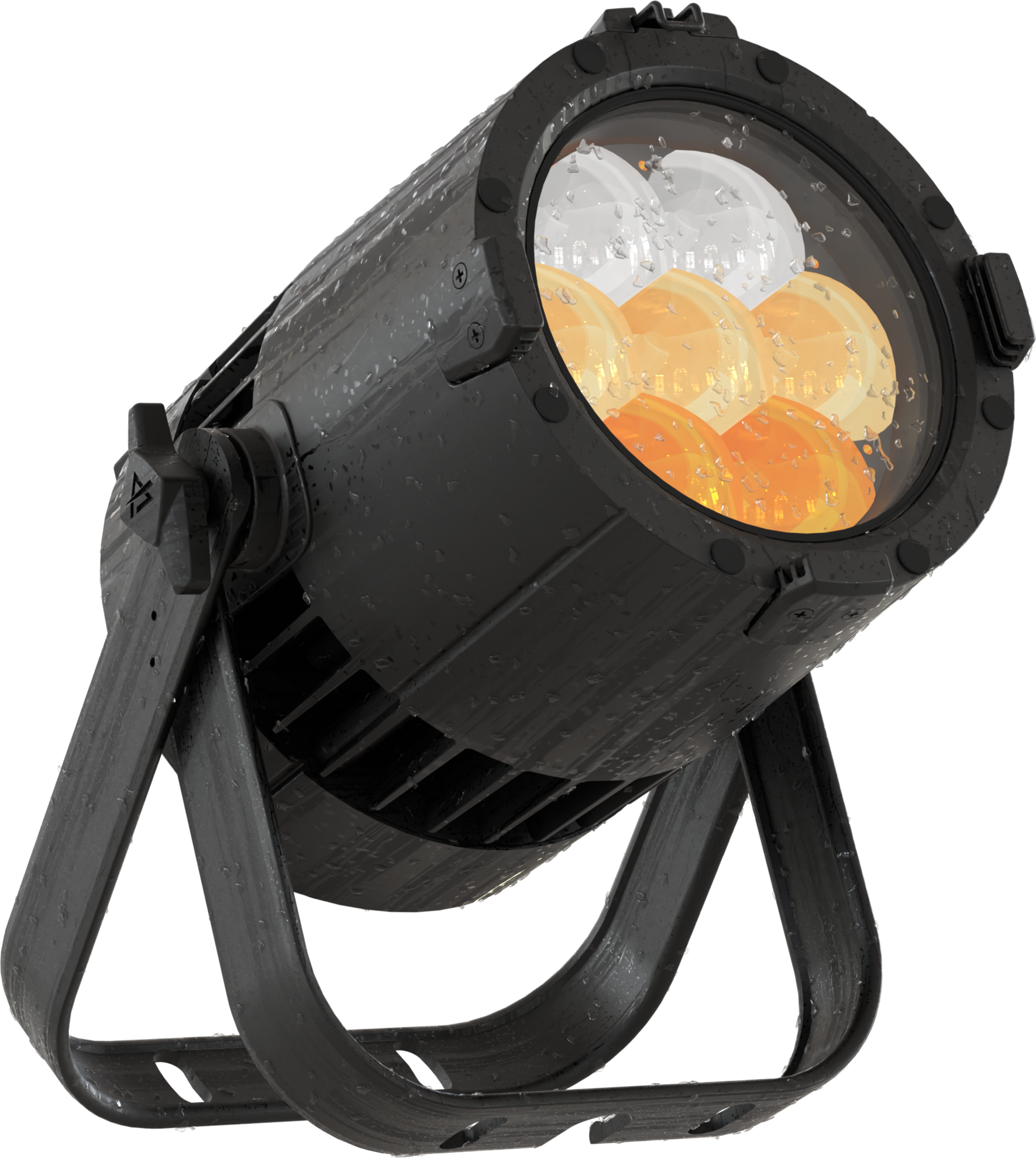

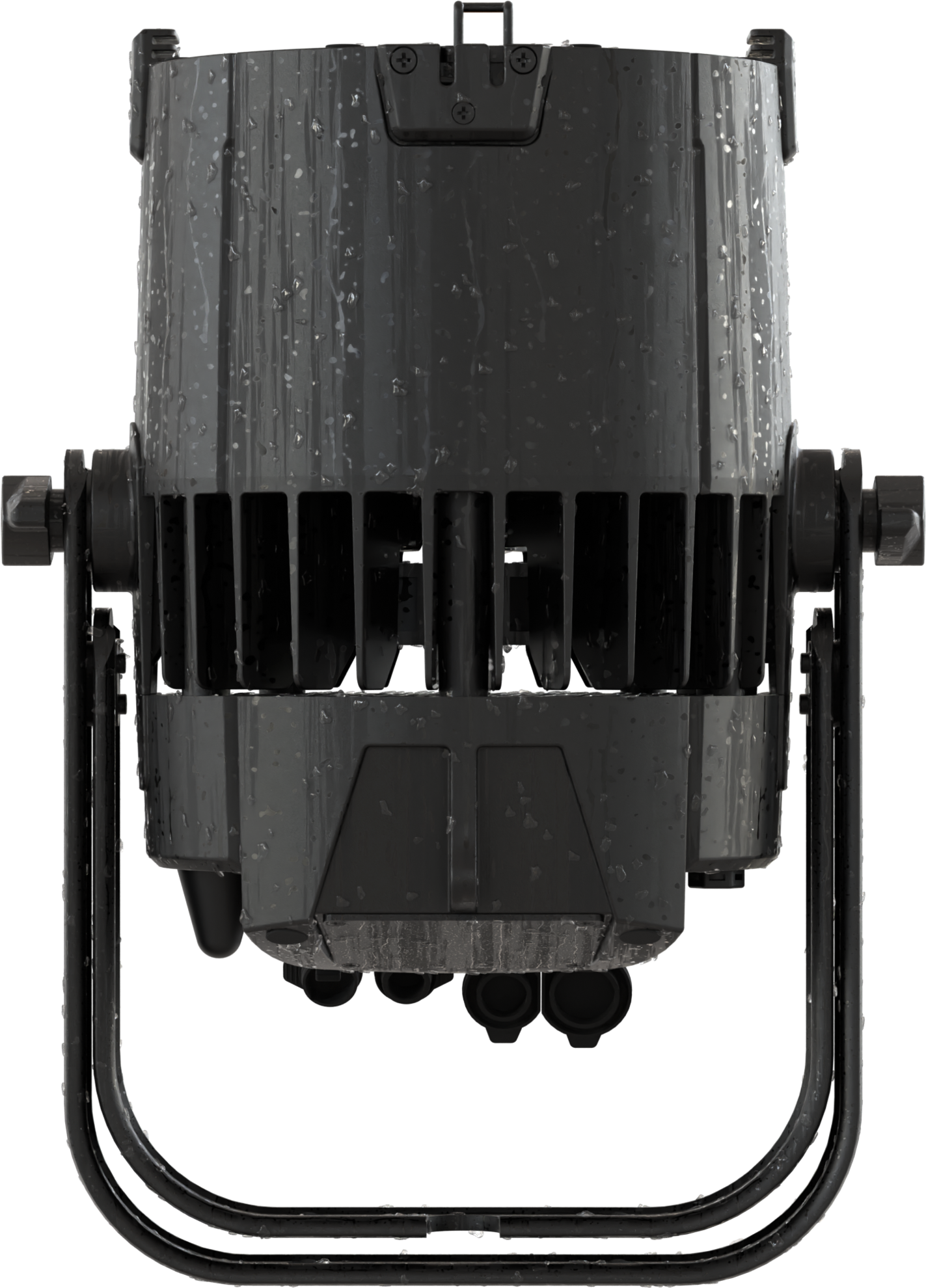

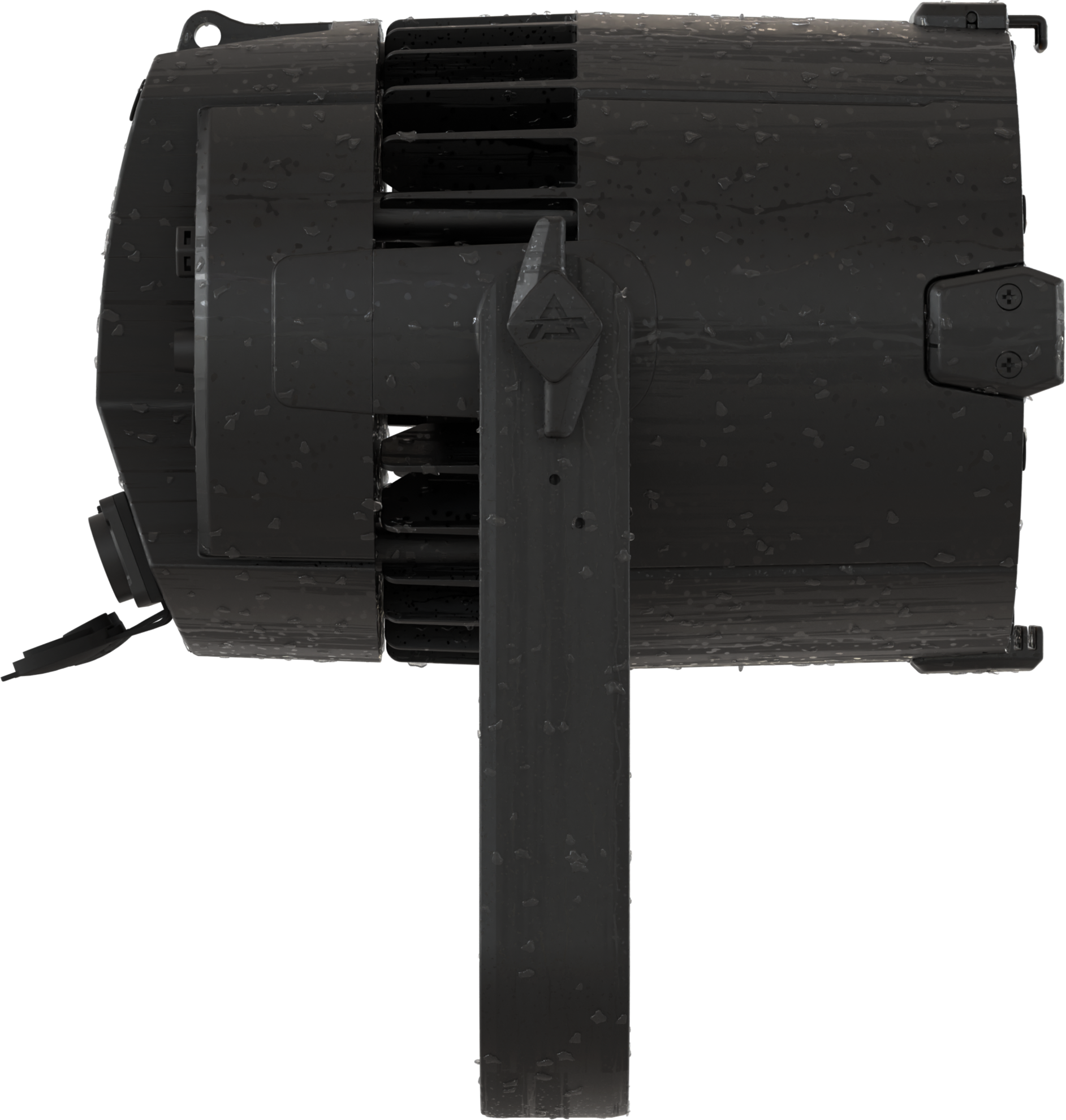

Astra PARZIP zoom LED PAR, 4,5°-53°, Black

Astra PARZIP zoom LED PAR, 4,5°-53°, Black

Name: Astra PARZIP zoom LED PAR, 4,5°-53°, Black
Brand: Prolights

530005208

7x40W IP65 RGB+WW

Description Specification Brand information Downloads

Astra Par7ZIP is a bright IP65 rated LED zoom PAR featuring a 7x40W RGB + WarmWhite LED source delivering phenomenal output and great flexibility for both indoor and outdoor application.
Its Spektra calibrated LED source delivers a high-quality white reproduction with high CRI and TLCI scores as well an extremely precise colour tuning.
Astra Par7ZIP is truly focusable through the motorized zoom system ranging from 4.5° to 53°, being a truly versatile workhorse for any application requiring an advanced control of the light and weatherproof.
The on board CRMX transceiver card allow also a simplified wiring and remote wireless control of the unit.
Astra Par7ZIP is single pixel controllable, with multiple on-board FX, and allows access to a precise and advanced white and colour control, all through DMX, CRMX+W-DMX and RDM.

Main features:

7x40W Spektra calibrated RGB + Warm White LED delivering high CRI, TLCI, TM30 values
4.5° to 53° motorized linear zoom
Pixel control, precise white CCT and multiple FXs and colour features
IP65 for exterior application, with CRMX wireless transceiver on-board

Technical Specifications

LIGHT SOURCE

Source: 7x40W RGB + Warm White LED
Luminous flux: preliminary data: (4,5°) 1'513 lm - (53°) 2'604lm @full
Lux: preliminary data: (4,5°) 12'541 lx - (53°) 304lx @5 m full
CRI: preliminary data: 94,8 @ 3'200K; 92,9 @ 5'600K
R9: preliminary data: 97,6 @ 3'200K; 79,8 @ 5'600K
Source life expectancy: > 50.000 h

OPTICS

Zoom: 4,5° - 53° motorised linear zoom
Lens type: honeycomb gapless plano-convex optics

COLOUR SYSTEM

Colour mixing: RGBW / FC
CCT: CCT control, + / - green correction, tungsten emulation
White presets: 2.800 K ~ 10.000K
Colour wheel: gel filters included
Macros: several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

Control Resolution: 16-bit dimmer
Pixel patterns: pre-programmed dynamic and static patterns
FX generator: adjustable foreground/background colour, index, speed, direction
Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

Body: weatherproof IP65 construction
Body colour: RAL 9004
Other: Front mount holder for accessories as Barndoor, filterframe

CONTROL

Protocols: DMX512, RDM, CRMX
DMX channels: 1 / 2 / 6 / 12 / 14 / 21 / 33channel
Pixel control: OFF, ring and pixel2pixel selectable options
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: LCD high resolution colour display
Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -20° C / +45° C (-4° F / +113° F)
LED Control: flicker free operation
Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 263W
Output (at 230V): 10 units on a single power line
Power factor: > 0,93

PHYSICAL

IP rating: 65 for outdoor installations
Cooling: active, silent operation
Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

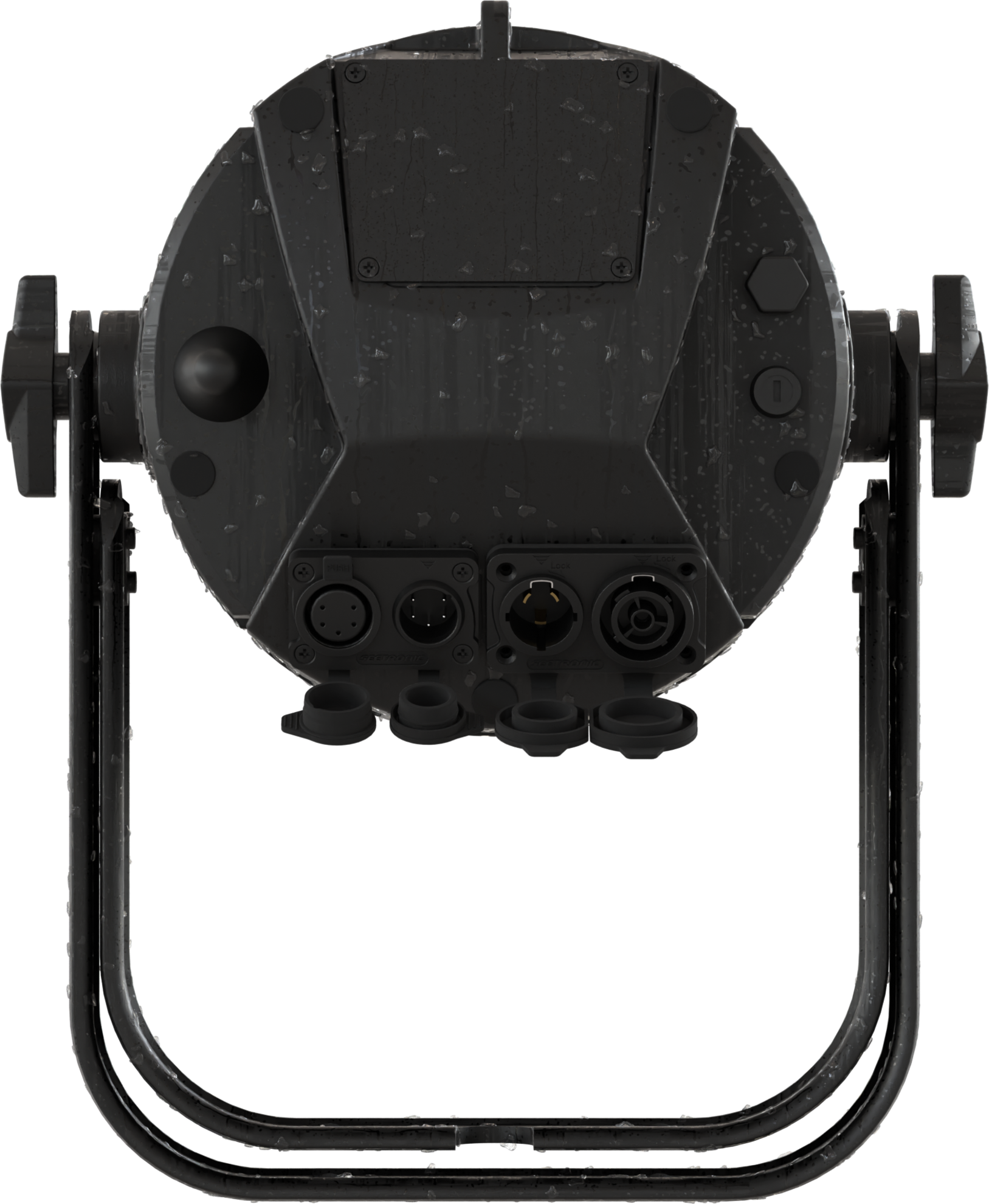

Signal connection: Seetronic XLR 5p IN/OUT connectors
Power connection: Seetronic powerCON TRUE IP65 IN/OUT

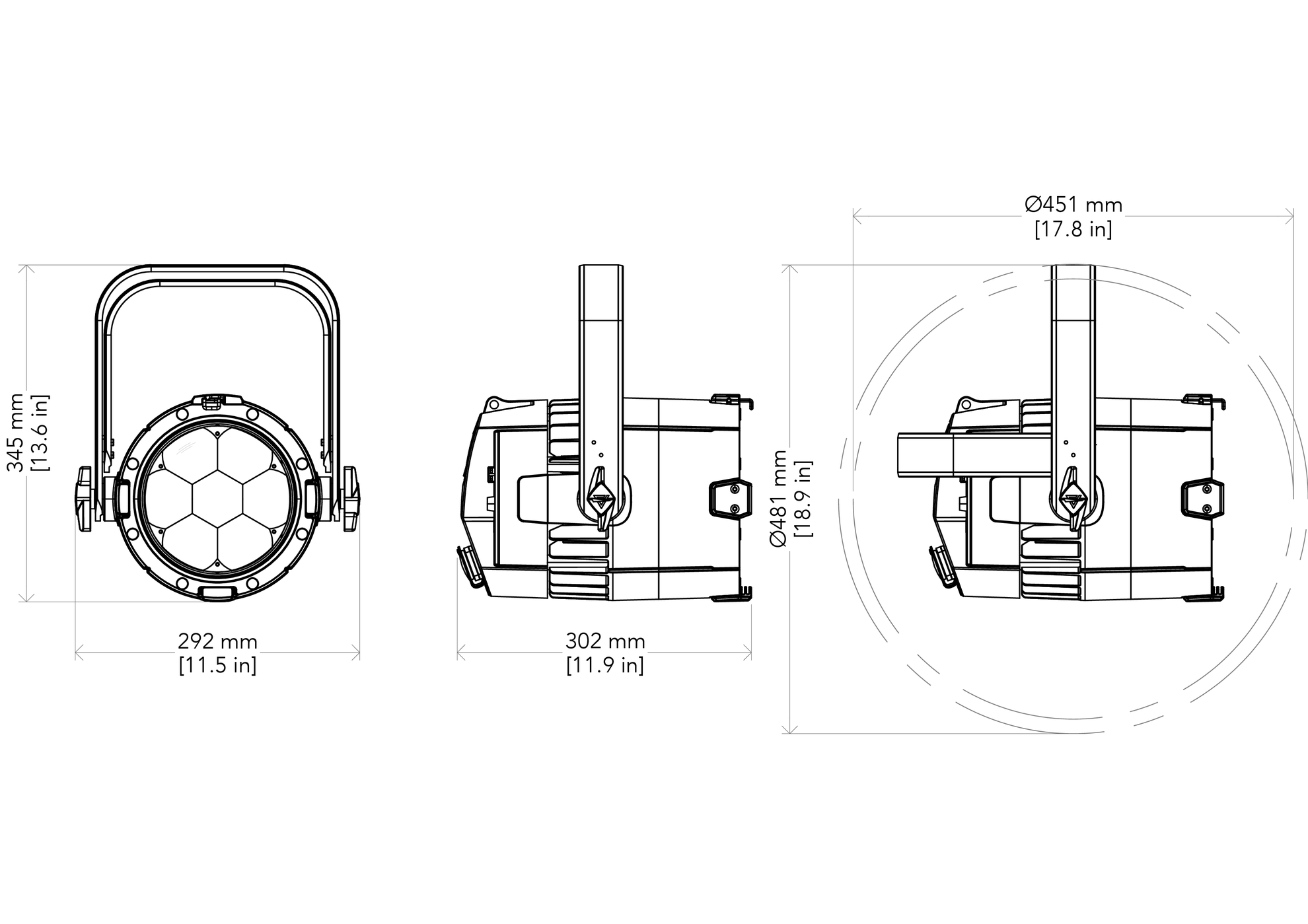

Dimensions (WxHxD): 291x347x300mm / 11.46''x13.66''x11.81''
Weight: ()9,3kg / 0lbs

(*)

NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC

BOX CONTENT

1 x ASTRAPAR7ZIP
1 x 1,5 meters power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65)

Supplier SKU

ASTRAPAR7ZIPBK

IP Rating

IP65

Prolights

PROLIGHTS is the professional lighting division of Music & Lights S.r.l., an Italian company specialized in the manufacture of technologies for the show industry.

The PROLIGHTS brand was established in 2001 with a focus on the design and manufacture of professional lighting & video products for the entertainment, event, broadcast and installation markets.

PROLIGHTS is headquartered in Minturno, Italy, where the companies commerical, operational and R&D centres are all located.

PROLIGHTS continues to experience a sustained growth across all sectors, with its products found on stages and in studios all over the world. Founder Franco Sorabella, and his son Fabio, are both actively involved in the day-to-day running of the business and in the development of the product range.

http://www.prolights.it
