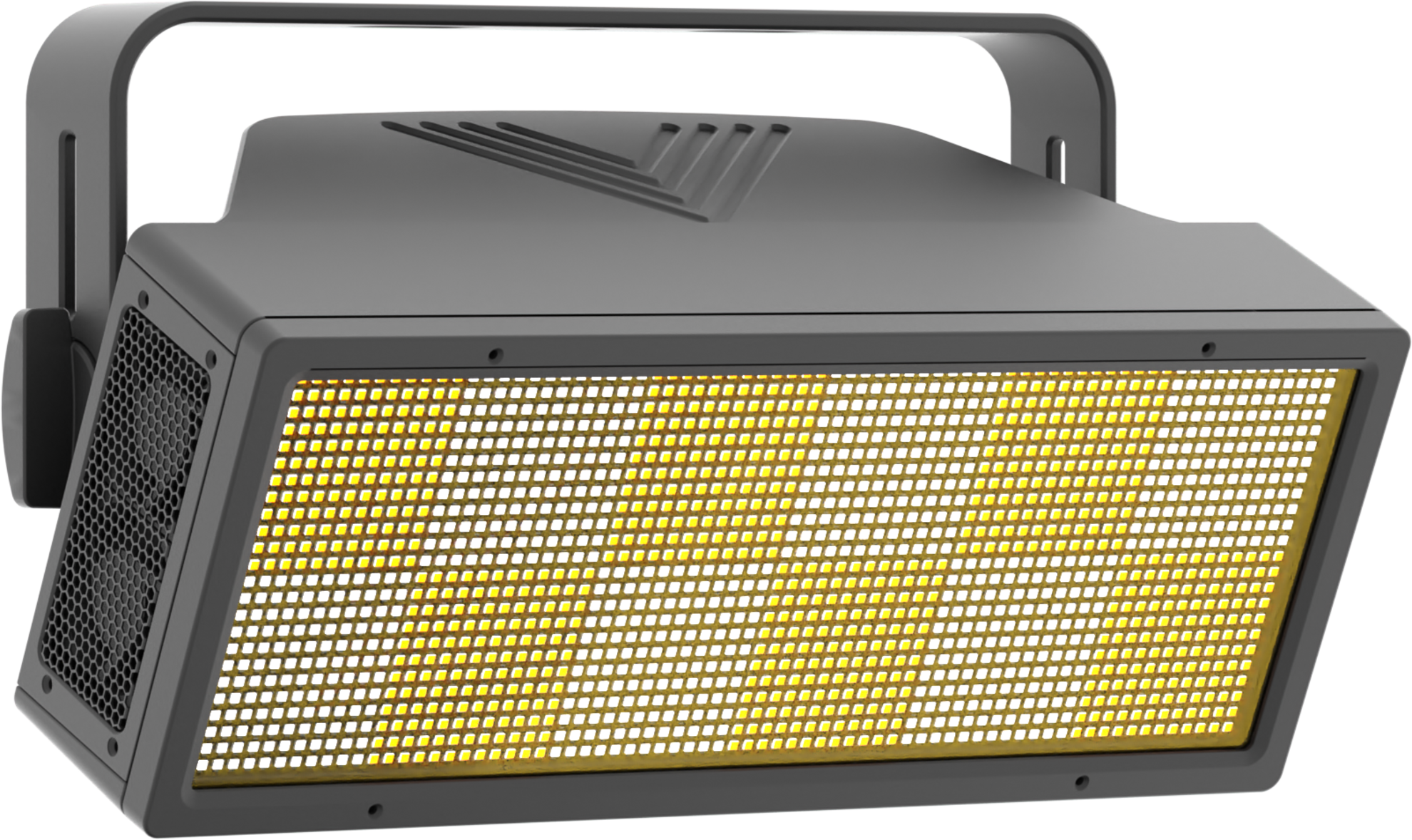

SUNBLAST 3000 FC - IP65 High power LED strobe

SUNBLAST 3000 FC - IP65 High power LED strobe

Name: SUNBLAST 3000 FC - IP65 High power LED strobe
Brand: Prolights

530200400

High power LED strobe, 1728x1W RGBW LED, 48 section control, 180k lm, 1500W

Description Specification Brand information Downloads

Sunblast 3000FC is an exceptionally powerful IP65 graphic strobe, blinder and flood. Available in white or full colour versions and designed to deliver simply staggering light levels, this versatile fixture can provide an unbelievable punch over a huge area.

Technical Specifications

LIGHT SOURCE

Source: 1.728x1W RGBW LEDs
CCT: full ON 6.500K
Luminous flux: strobing: 180'000 lm - full static: 31'792lm
Lux: full static: 1'570lx @3 m full
Lux: strobing: 565lx @5 m full
Source life expectancy: > 30.000 h

OPTICS

Beam angle: 120°
Field angle: 155°

COLOUR SYSTEM

Colour mixing: RGBW / FC

DYNAMIC EFFECTS

Rotating gobos: dynamic patterns with speed and rotation control
Pixel patterns: pre-programmed dynamic and static patterns
FX generator: adjustable foreground/background colour, index, speed, direction
Static mode: selection of static colour
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment

BODY

Body: sturdy die-cast aluminium body
Body colour: black

CONTROL

Protocols: DMX512, RDM, Art-Net, Kling-Net
Pixel control: 1 / 2 / 4 / 8 / 16 / 48 individually select and control sections
RDM: RDM for remote monitoring and settings
Display: black TFT touch display
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: -10° ~ +45°
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: strobe : 1.500 W (peak) - static: 589W
Max power consumption (at 120V): strobe: 1.550 W (peak) - static 602W
Output (at 230V): 2 units on a single power line
Output (at 120V): 1 units on a single power line

PHYSICAL

IP rating: 65 for temporary outdoor application, not for fixed installation
Cooling: active, silent operation
Suspension and fixing: hanging bracket for floor positioning with "Quick-Lock" system
Signal connection: Seetronic XLR 5p IN/OUT connectors
Data connection: Art-Net RJ45 IN/OUT
Power connection: Seetronic powerCON waterproof IN/OUT connectors
Dimensions (WxHxD): 468x179x268mm
Weight: 14kg
