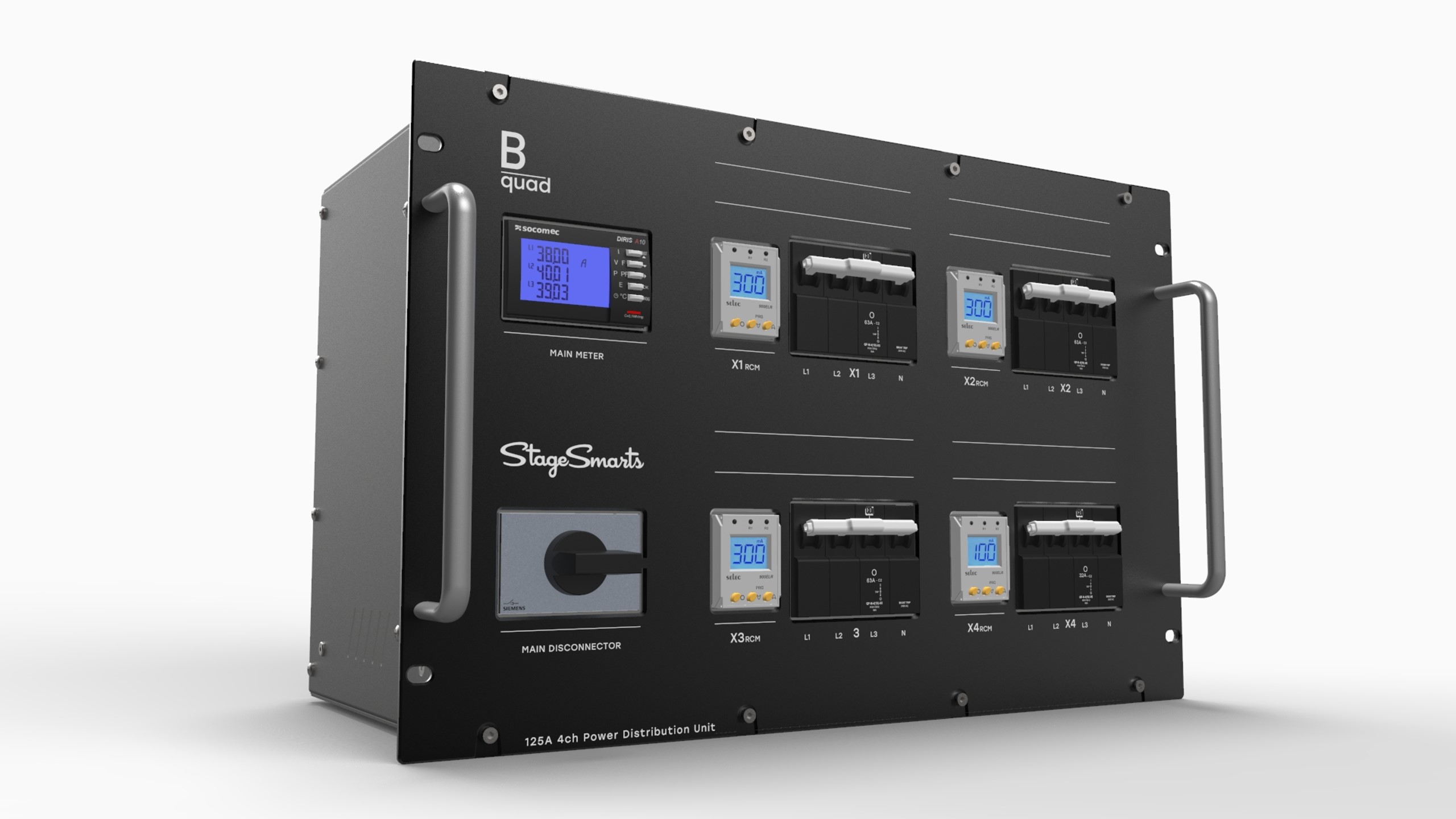

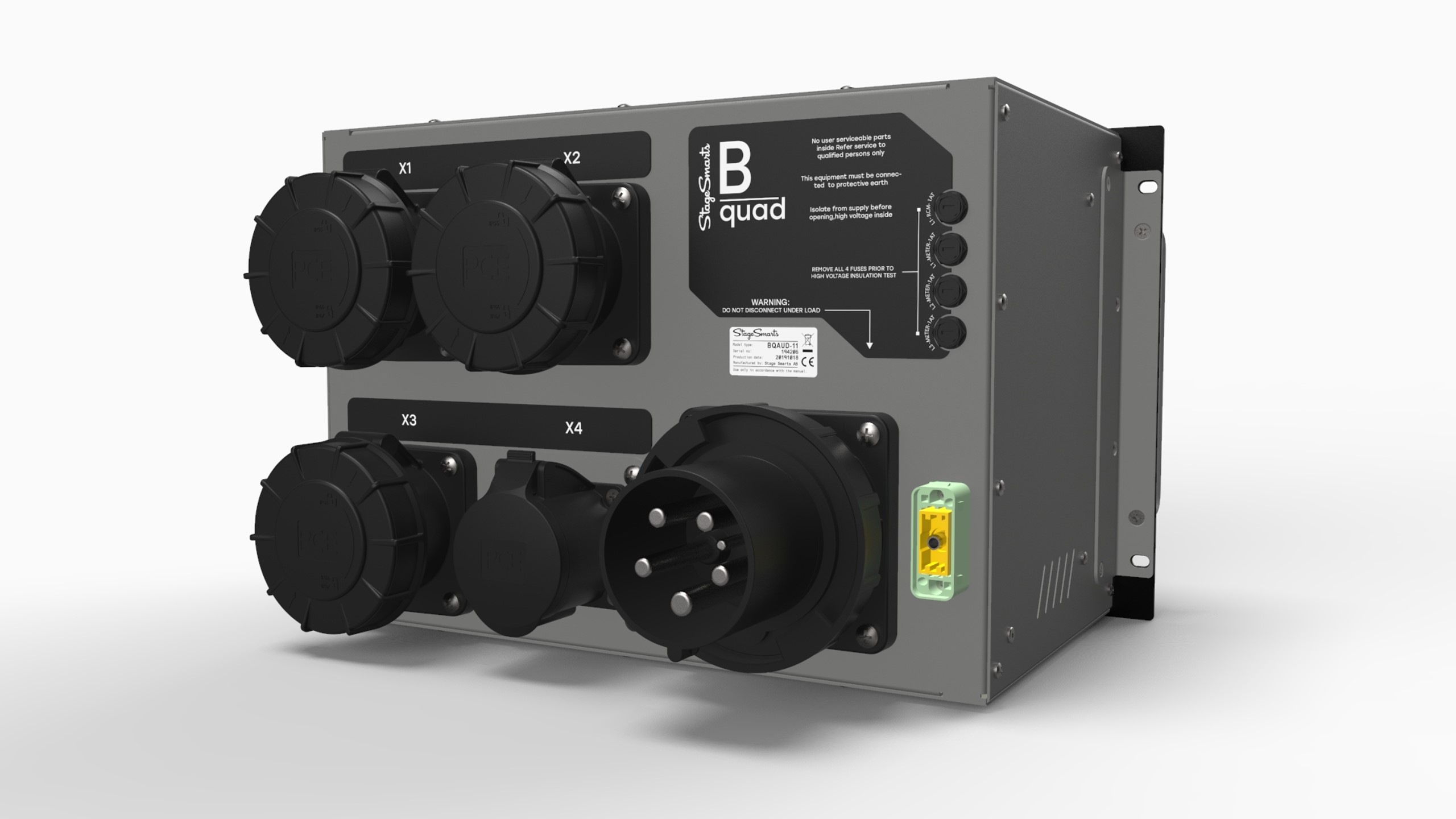

B-Quad base unit, CEE 125A input,
The B-quad serves as the heart in any B-series power distribution solution together with the B12 and the B24 units. It provides power and metering for up to four separate B-series units but can of course be used in any situation where a reliable and flexible 3-phase power distribution unit is needed.
The B-quad is a fully customizable, four output, 3-phase power distribution that’s fitted with the same high grade hydraulic-magnetic circuit breakers as the acclaimed C-series, providing you with market leading thermal stability, precise specifications, and superior handling of intermittent peak currents.
The B-quad can be customized to fit your specific needs on order, enabling you to choose between 125A or 63A power-inlet connections. An optional Diris A10 multimeter can be fitted enabling reliable measurements of total current consumption, voltages and more. Each of the four outputs can be fitted with 16, 32 or 63A circuit breakers and corresponding CEE output connector. Furthermore, each separate output can have an individual programmable residual current measurement meter fitted, enabling you to fine tune the outputs residual current protection to fit your needs in any given situation without tampering with the safety of people and equipment.
The B-quad gives you the ability to easily adapt to the ever changing challenges of the entertainment industry market in a compact, flexible and reliable unit that will keep you and your staff safe at any time.
Power input
- 125A or 63A CEE, 5-wire (TN-S) 230/400V
Main breaker
- Disconnector, 4-pole 125A
Main input
- metering (optional) All incoming voltages, all currents (including neutral current), power factor, frequency
No of main channels
- 4
Channel capacity and protection
- 16A-63A, 4-pole breaker, (optional) programmable RCM (10mA-30A) (0.0-99.9s)
Main output connections
- 16A, 32A or 63A CEE, 5-wire (TN-S) 230/400V
Dimensions & weight
- 483(19″) x 311(7U) x 373mm, 18kg
Certifications, standards
- EN 61439-1, EN 62368-1:2014, EN 61000-6-1:2007,EN 55015:2006+A2:2009, BS7671, BS7909
|
