Dmx cable w. Neutrik 5 pin connectors. (TOUR53415)

Dmx cable w. Neutrik 5 pin connectors. (TOUR53415)

Name: Dmx cable w. Neutrik 5 pin connectors. (TOUR53415)
Brand: Prolights

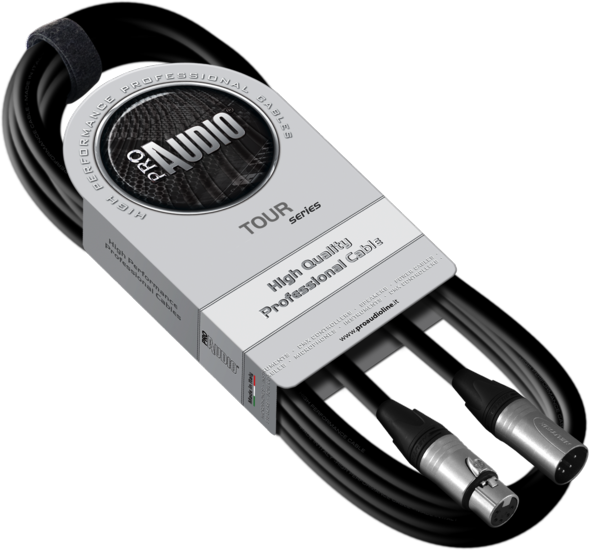

High quality DMX cable with Neutrik Connectors.

Length (Metres)

Please select variant!

Description Specification Brand information Downloads

High flex 120ohm DMX cable.

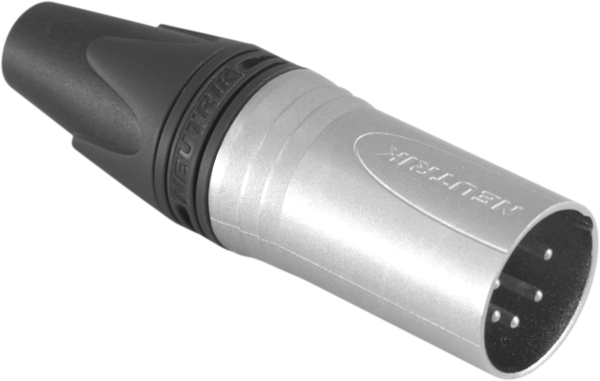

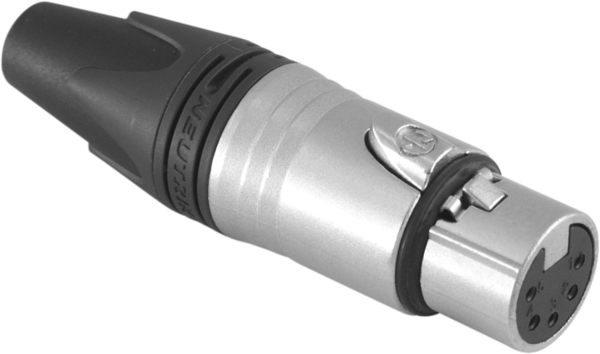

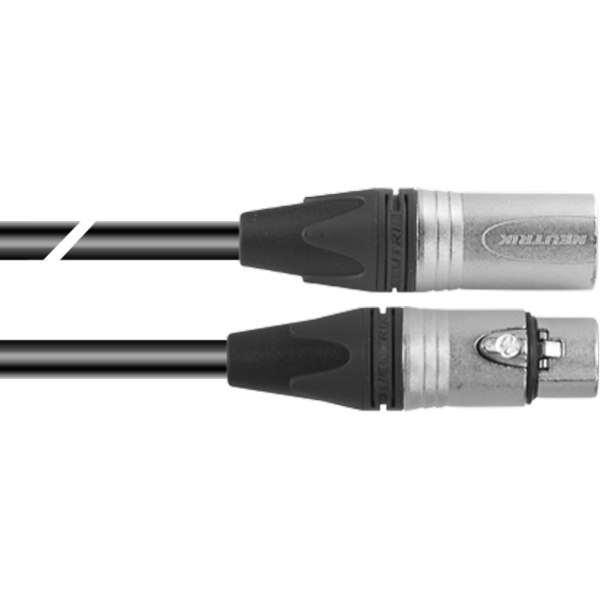

Connectors: Neutrik XLR-male 5p. –> Neutrik XLR-female 5p.

With velcro strap.

Technical Specifications

Connectors.

Neutrik 5 pin XLR

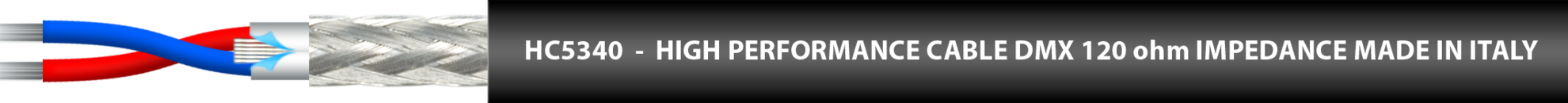

Cable.

O.F.C. (Oxygen Free Copper).

Specific for the connection of devices using DMX512 protocol featuring a 120 Ohm nominal impedance.

Inner conductor: tinned copper AWG24, 2x7x0.20 mm.

Insulation: polyethene 1.35 mm diameter, foil tape with spiral cotton filler.

Shield: tinned copper 6x16x0.10 mm, 90%± 5%.

Outer jacket: PVC diameter 6.40 mm, 60 Shore.

Supplier SKU

TOUR53415L01BK

Prolights

PROLIGHTS is the professional lighting division of Music & Lights S.r.l., an Italian company specialized in the manufacture of technologies for the show industry.

The PROLIGHTS brand was established in 2001 with a focus on the design and manufacture of professional lighting & video products for the entertainment, event, broadcast and installation markets.

PROLIGHTS is headquartered in Minturno, Italy, where the companies commerical, operational and R&D centres are all located.

PROLIGHTS continues to experience a sustained growth across all sectors, with its products found on stages and in studios all over the world. Founder Franco Sorabella, and his son Fabio, are both actively involved in the day-to-day running of the business and in the development of the product range.

http://www.prolights.it
