GigaCore 30i - up to 10G
GigaCore 30i comes fully optimized out of the box to be used with the most advanced AV protocols. Preconfigured Quality of Service (QoS), IGMP multicast, and PTPv2 settings
10Gb Network switch for converged AV networks
GigaCore 30i comes fully optimized out of the box to be used with the most advanced AV protocols.
Preconfigured Quality of Service (QoS), IGMP multicast, and PTPv2 settings will assure a responsive and extremely stable network environment for the most demanding time-critical audio protocols like Dante™, AES67, Q-SYS, and many more.
With up to 1000W of total PoE budget and PoE++ on every copper port, this GigaCore switch can drive any IP PTZ camera or loudspeaker on the market today.
GigaCore 30i is the ideal solution for AV networks in fixed installations, integration and touring for lighting, audio, and video.
Most suitable applications: Fixed installations
RLinkX (Link redundancy): Yes
Groups (VLAN segmentation): Yes
MultiLinkX (Link aggregation): Yes
Profile manager: Yes
Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
MAC address table: 16384 entries
Address learning / Aging: Self learning, Auto aging
Switching throughput: 168Gbps
Jumbo frames: MTU up to 12000
IGMP support: Yes (V1/V2/V3)
IGMP snooping: Yes, enabled by default
Port sensing: Auto negotiation
Auto crossover: MDI / MDIX
Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)
Ethernet connectivity: 24 x RJ45 connectors (1Gbps))
Fiber connectivity: 6 x SFP+ cages (10Gbps/1Gbps) (independent from other ports)
Ethernet port speed: 1Gbps
Serial: 1 x USB C

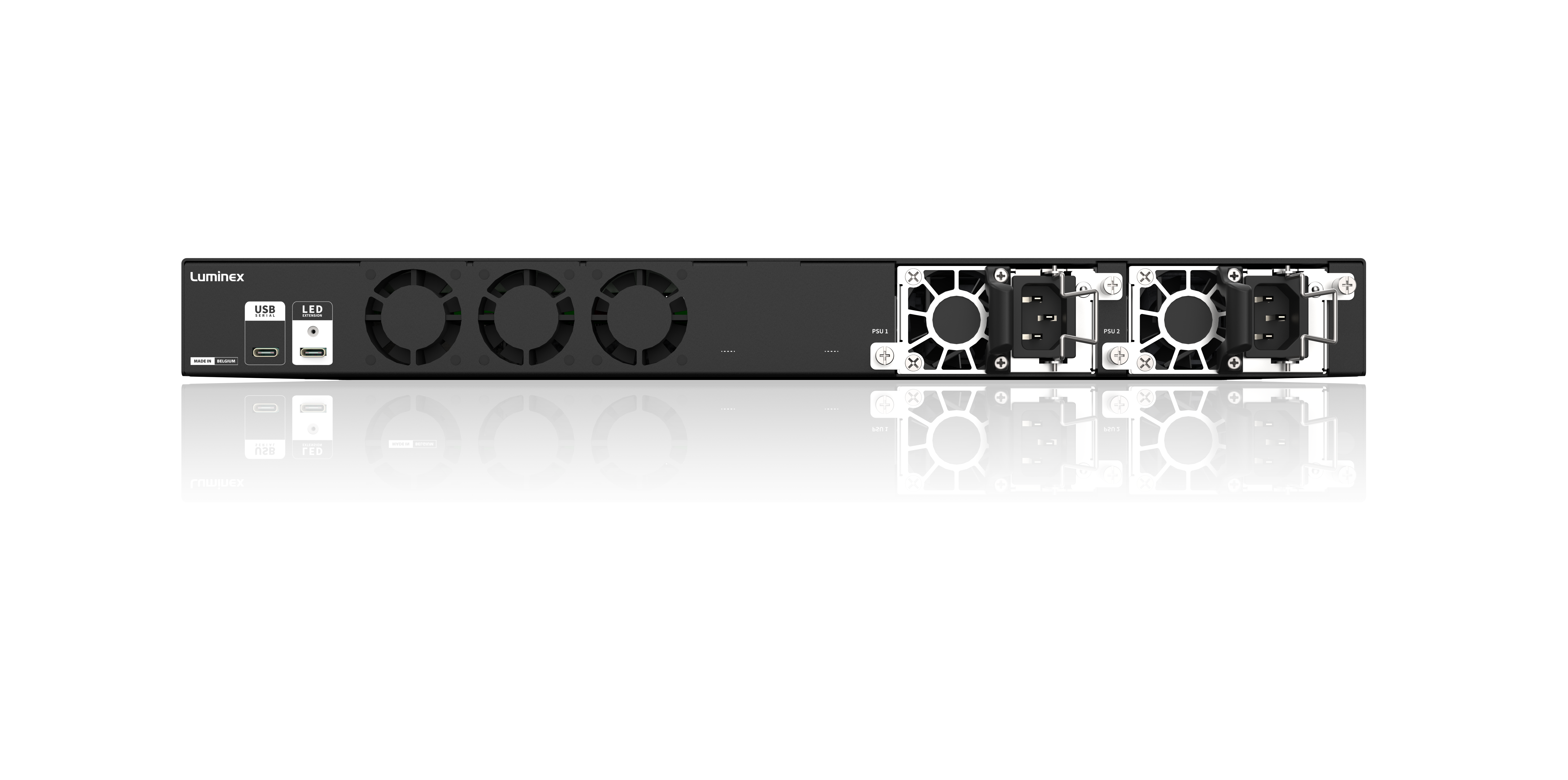

Power connectivity: 1 x IEC (14C) inlet for each PSU
Power input: 100-240VAC, 50-60Hz
Power consumption: Maximum 40W non PoE version Maximum 500W/1000W with PoE
Fuse: NA
Backup power input: 100-240VAC, 50-60Hz (through second hot swappable PSU)
Backup PoE power input: 100-240VAC, 50-60Hz (through second hot swappable PSU)
PoE: PoE ++ Optional (up to 1000W)
Supported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, REAC©, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), IEEE 1588 PTP V2
Sound protocol compliance: Yes (low jitter)
Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE, IEEE 802.3at PoE+, IEEE 802.3bt PoE++ 90W, IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ad LACP, IEEE 802.1ab LLDP, IEEE 1588-2008 PtPv2, IEEE 802.1 BA-2011, IEEE 802.1 Q-2011, IEEE 802.1 AS-2011
Display and jog: NA
Configuration: Through the built-in web server, Network wide configuration through Araneo software
Status LEDs:
Global status LEDs: Device, power, PoE power, RLinkX and mode
Port status LEDs: PoE, MultiLinkX, RLinkX, groups, link/activity and port speed
Dark mode available
Colored RGB LEDs: Yes
Mounting: Rack
Enclosure: Robust metal housing
Dimensions (W x D x H): 482 x 309 x 44 mm (19" x 12,2" x 1,73")
Weight: 4,72 kg
Packaging: 545 x 335 x 125 mm
Environment:
Operating temperature: 0 to +50 °C
Storage temperature: -10 to +70 °C
Humidity (non condensing): 5 to 95% RH
Noise level @1m: TBD
Certificates/Approvals: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHS
Standards: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024
Product codes:
LU 01 00077-10-1S1 / GigaCore 30i - 24x1G – 6x10G(SFP+)
LU 01 00077-10-2S1 / GigaCore 30i - 24x1G – 6x10G(SFP+) - 2nd PSU 100W
LU 01 00077-10P-1S5 / GigaCore 30i - 24x1G – 6x10G(SFP+) - PoE++
LU 01 00077-10P-2S5 / GigaCore 30i - 24x1G – 6x10G(SFP+) - PoE++ - 2nd PSU 550W
LU 70 00639 / GigaCore Slide-in PSU 100W
LU 70 00640 / GigaCore Slide-in PSU 550W
