GigaCore 10t

Find 1G and 10G models with and without POE
Configuration
Connectors
Fiber Options
POE Options
Please select variant!

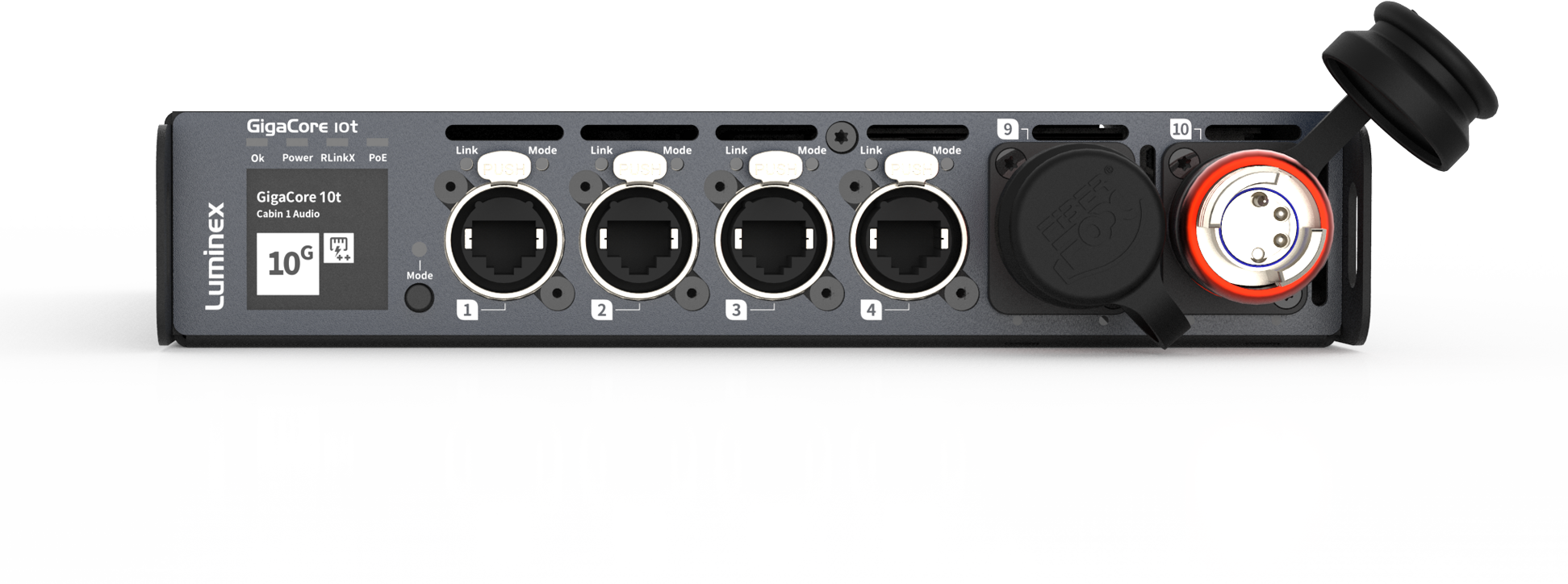

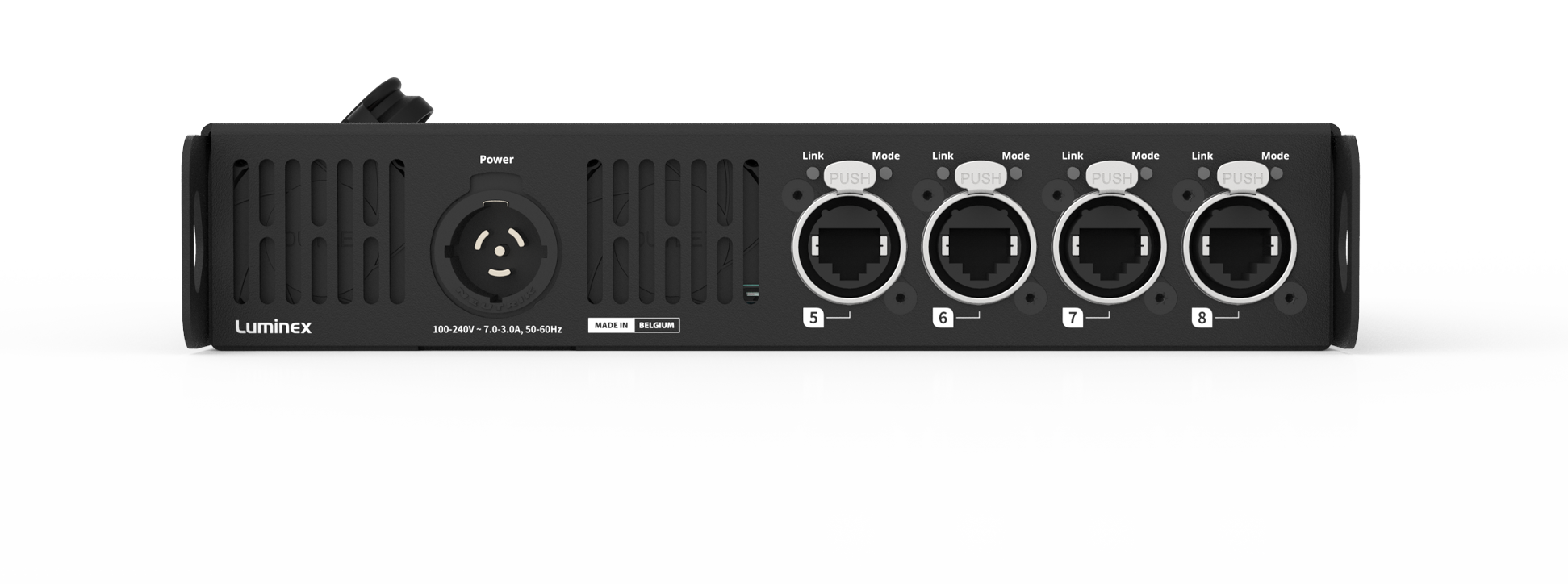

The GigaCore 10t is a 1&10 Gigabit Ethernet switch (depending of model) for Professional touring applications in lighting, audio and video with a frequent tear-down & built-up requirement or for any other application where ruggedized connectivity is necessary.

It is designed to support the most advanced AV protocols out of the box and is the backbone for a converged net-work, allowing multiple applications to co-exist on the same network.

Thanks to its half 19” form factor, GigaCore 10t is ideal for ideal for creating a fully redundant A/B network in one single rack space. It also features two M10 inserts so it can be flexibly mounted in any rig or truss.

The combination of GigaCore 10t and Araneo software platform, is the ideal solution to deploy an entire AV network in just a few clicks. Each GigaCore switch can still be configured by an intuitive built-in AV Web UI.

Araneo, the network monitoring, planning and management software will ensure consistent management across the entire Luminex network. The use of Araneo together with GigaCore switches will increase your productivity and confidence in the network as well as significantly reduce commissioning time.

An e-ink display informs the user about important parameters of the switch also when the device is not powered.

GigaCore 10t is an indispensable part of any mobile AV network where reliability and a quick and easy setup are needed.

A robust & silent small form factor 10Gb switch with ruggedised connectivity.

Technical Specifications
  • Most suitable applications: Touring applications, Rack mount and Truss mount (through 2x M10) applications
  • PoE: PoE ++ Optional (up to 450W)
  • RLinkX (Link redundancy): Yes
  • Groups (VLAN segmentation): Yes
  • MultiLinkX (Link aggregation): Yes (With future FW upgrade)
  • Profile manager: Yes
  • Memory: Flash 1Gb RAM – 8Mb NOR flash 4Gb EMMC storage
  • MAC address table: 16384 entries
  • Address learning / Aging: Self learning, Auto aging
  • Switching throughput 64 Byte:
    • 1G Models: 14881Mpps
    • 10G Models: 41667Mpps
  • Switching capacity:
    • 1G Models: 20Gbps
    • 10G Models: 56Gbps
  • Jumbo frames: MTU up to 12000
  • IGMP support: Yes (V1/V2/V3)
  • IGMP snooping: Yes, enabled by default
  • Port sensing: Auto negotiation (Copper ports)
  • Auto crossover: MDI / MDIX
  • Auto sensing: Full or Half Duplex (Gigabit is Full Duplex)

  • Ethernet connectivity: 8 x EtherCon connectors ) (4x front, 4x rear) (1Gbps)
  • Fiber connectivity: 2 x rugged fiber connectors (optional) (10Gbps/1Gbps) (independent from other ports) (front panel)
  • Ethernet port speed: 1Gbps
  • Serial: No
  • Power connectivity: 1 x PowerCON True 1 in
  • Power input: 100-240VAC, 50-60Hz
  • Power consumption: Maximum 40W - Maximum 550W (Depending on configuration)
  • Fuse: NA
  • Backup power input: No
  • Backup PoE power input: No
  • PoE: PoE ++ Optional (up to 450W)

  • Supported protocols: Dante©, RAVENNA/AES67©, Ethersound©, Q-SYS/Q-LAN, sACN, ArtNet, MANet2, HogNet, RTTrPL (BlackTraX), IEEE 802.1p CoS (Class of Service), DiffServ (DSCP), PoE (802.3af) (optional), PoE+ (optional), PoE++ (802.3bt) (optional), IEEE 1588 PTP V2, AVB/MILAN
  • Sound protocol compliance: Yes (low jitter)
  • Ethernet compliance: IEEE 802.2, IEEE 802.3, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.3ab Gigabit Ethernet, IEEE 802.3af PoE(optional), IEEE 802.3at PoE+(optional), IEEE 802.3bt PoE++ 90W(optional), IEEE 802.1p CoS, IEEE 802.1d Spanning Tree, IEEE 802.1w Rapid Spanning Tree, EEE 802.1s Multiple Spanning Tree, IEEE 802.1Q VLAN, IEEE 802.1ab LLDP, IEEE 1588-2008 PtPv2, IEEE 802.1 BA-2011 AVB

  • Display and jog: No
  • Configuration: Through the built-in web server, Network wide configuration through Araneo software
  • Status LEDs:
  • Global status LEDs: Device, power, PoE power and mode
  • Port status LEDs: PoE, groups, link/activity and port speed
  • Dark mode available
  • Colored RGB LEDs: Yes
  • Mounting: Rack, Truss (2x M10)
  • Enclosure: Robust metal housing
  • Dimensions (W x D x H): 220 x 330 x 44 mm (8,66" x 13" x 1,73")
  • Weight: 3,4kg
  • Packaging: TBC
  • Environment:
  • Operating temperature: 0 to +50 °C
  • Storage temperature: -10 to +70 °C
  • Humidity (non condensing): 5 to 95% RH
  • Noise level @1m: TBC
  • BTU:
  • Certificates/Approvals: Pending: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHS
  • Standards: Pending: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024

Product codes:
LU 01 00079-NDM-10G / GigaCore 10t -10G-(Neutrik DUOMMF)
LU 01 00079-POE-NDM-10G / GigaCore 10t -10G-(Neutrik DUOMMF + PoE++)
LU 01 00079-NQM-10G / GigaCore 10t -10G-(NeutrikQUAD MMF)
LU 01 00079-POE-NQM-10G / GigaCore 10t -10G-(NeutrikQUAD MMF + PoE++)
LU 01 00079-NDS-10G / GigaCore 10t -10G-(NeutrikDUO SMF)
LU 01 00079-POE-NDS-10G / GigaCore 10t-10G- (NeutrikDUO SMF + PoE++)
LU 01 00079-NQS-10G / GigaCore 10t -10G-(NeutrikQUAD SMF)
LU 01 00079-POE-NQS-10G / GigaCore 10t-10G- (NeutrikQUAD SMF + PoE++)
LU 01 00079-F2M-10G / GigaCore 10t-10G- (Fiberfox 2ch MMF)
LU 01 00079-POE-F2M-10G / GigaCore 10t-10G- (Fiberfox 2ch MMF)
LU 01 00079-F4M-10G / GigaCore 10t-10G-(Fiberfox 4ch MMF)
LU 01 00079-POE-F4M-10G / GigaCore 10t-10G-(Fiberfox 4ch MMF + PoE++)
LU 01 00079-1G / GigaCore 10t -1G-(8 etherCON)
LU 01 00079-POE-1G / GigaCore 10t -1G-(8 etherCON + PoE++)
LU 01 00079-NDM-1G / GigaCore 10t -1G-(Neutrik DUOMMF)
LU 01 00079-POE-NDM-1G / GigaCore 10t -1G-(Neutrik DUOMMF + PoE++)
LU 01 00079-NQM-1G / GigaCore 10t -1G-(NeutrikQUAD MMF)
LU 01 00079-POE-NQM-1G / GigaCore 10t -1G-(NeutrikQUAD MMF + PoE++)
LU 01 00079-NDS-1G / GigaCore 10t -1G-(NeutrikDUO SMF)
LU 01 00079-POE-NDS-1G / GigaCore 10t-1G- (NeutrikDUO SMF + PoE++)
LU 01 00079-NQS-1G / GigaCore 10t -1G-(NeutrikQUAD SMF)
LU 01 00079-POE-NQS-1G / GigaCore 10t-1G- (NeutrikQUAD SMF + PoE++)
LU 01 00079-F2M-1G / GigaCore 10t-1G- (Fiberfox 2ch MMF)
LU 01 00079-POE-F2M-1G / GigaCore 10t -1G-(Fiberfox 2ch MMF + PoE++)
LU 01 00079-F4M-1G / GigaCore 10t-1G-(Fiberfox 4ch MMF)
