RPSU5580-550W

165200365

Redunded power supply solution for selected POE-models of the Luminex Gigacore Switch range.

Description Specification Brand information Downloads

The RPSU 5580 is a versatile ½ 19” power supply unit designed to complement selected POE versions of GigaCore Ethernet switches, offering enhanced power options for AV integration and installations where reliability is paramount.

In redundant mode, the RPSU 5580 ensures uninterrupted operation by seamlessly taking over in the event of a PSU or power cable failure, guaranteeing continuous performance of the connected GigaCore switch. Alternatively, when redundancy is not required, it can be used to significantly increase the PoE budget, providing additional power for demanding setups.

The RPSU 5580 can be rack-mounted as a standalone unit or paired with a ½ 19” GigaCore model within a single 1U rack space.

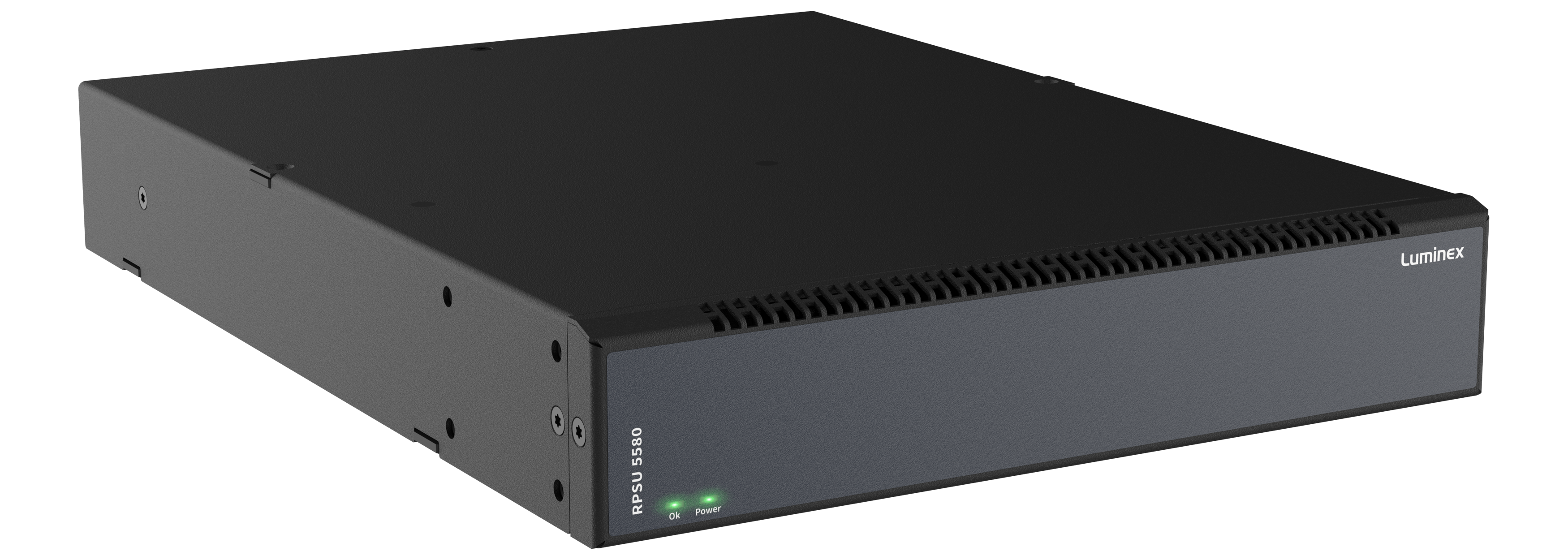

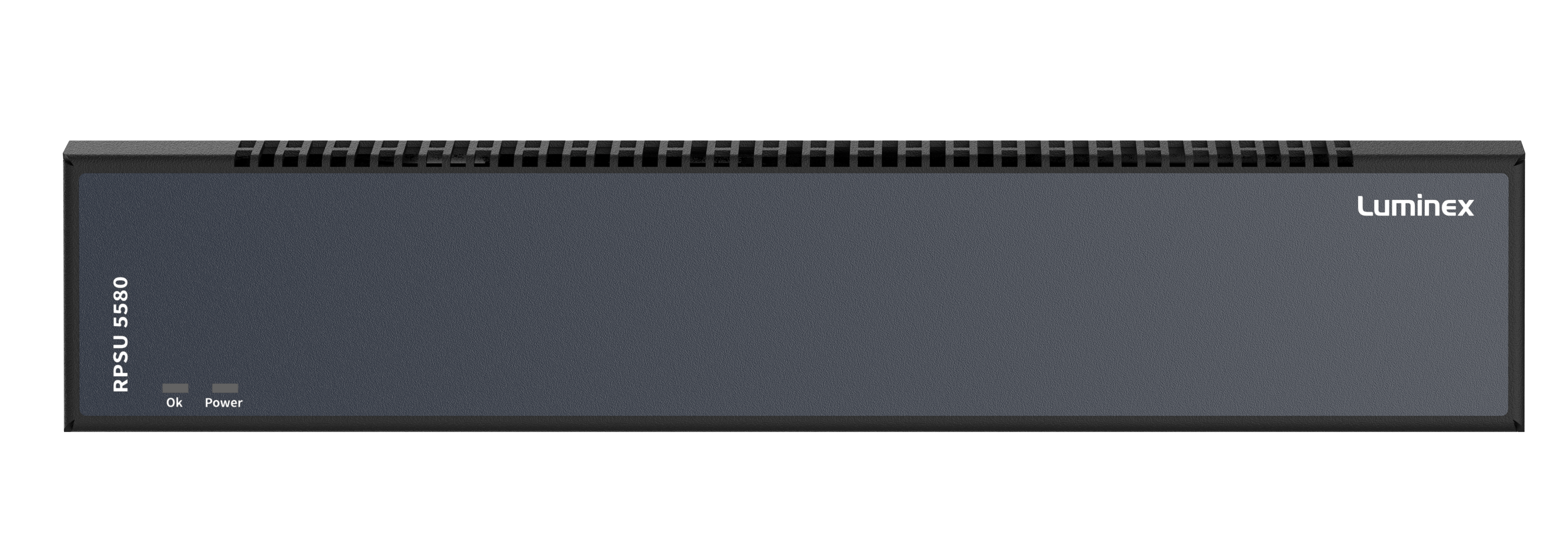

The RPSU 5580 features front-panel status indicator LEDs, while its redundancy or load-sharing status can be easily monitored and controlled via Araneo and displayed near the connected GigaCore switch.

Compatible with:

GigaCore 20t POE
GigaCore18t POE
GigaCore16t POE
GigaCore16tf POE
GigaCore 16i POE

Included in the package:

550W slide-in power supply (future upgradability to higher wattage PSU’s)
2m DC cable to conect GigaCore and RPSU 5580.
Rack mount and coupling kit for seamless integration into the rack.

Technical Specifications

Power input: 100-240V AC; 7A; 50-60Hz
Power consumption: 20-460W

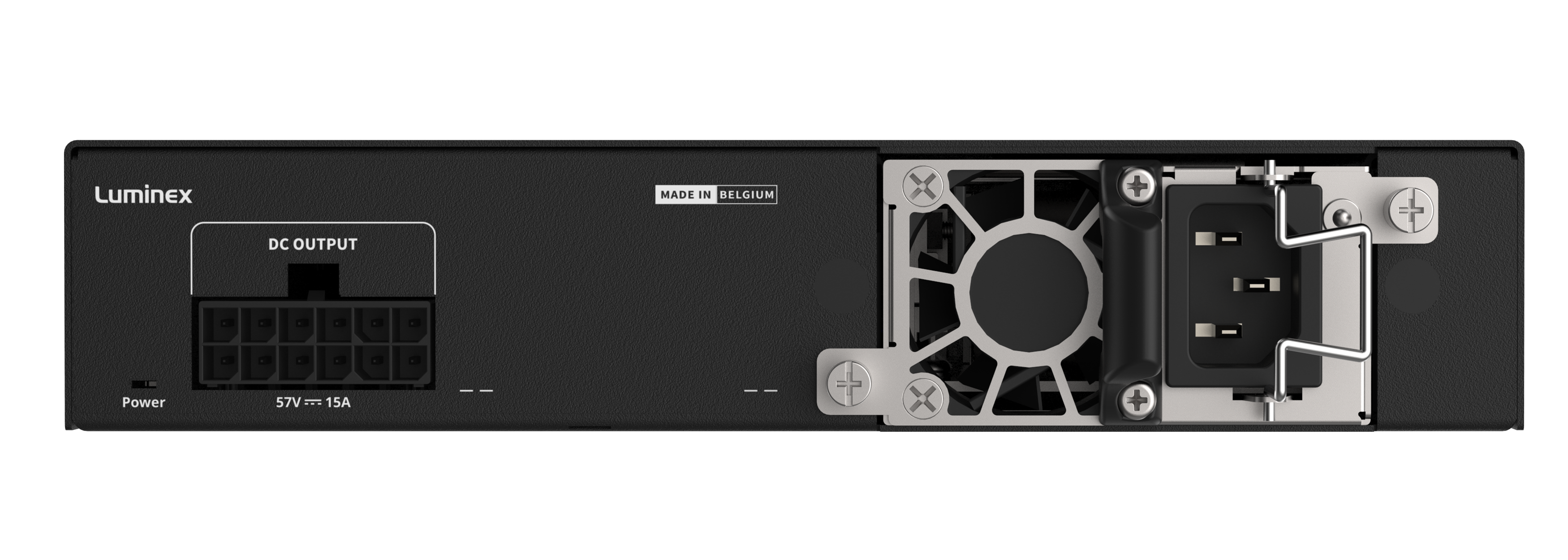

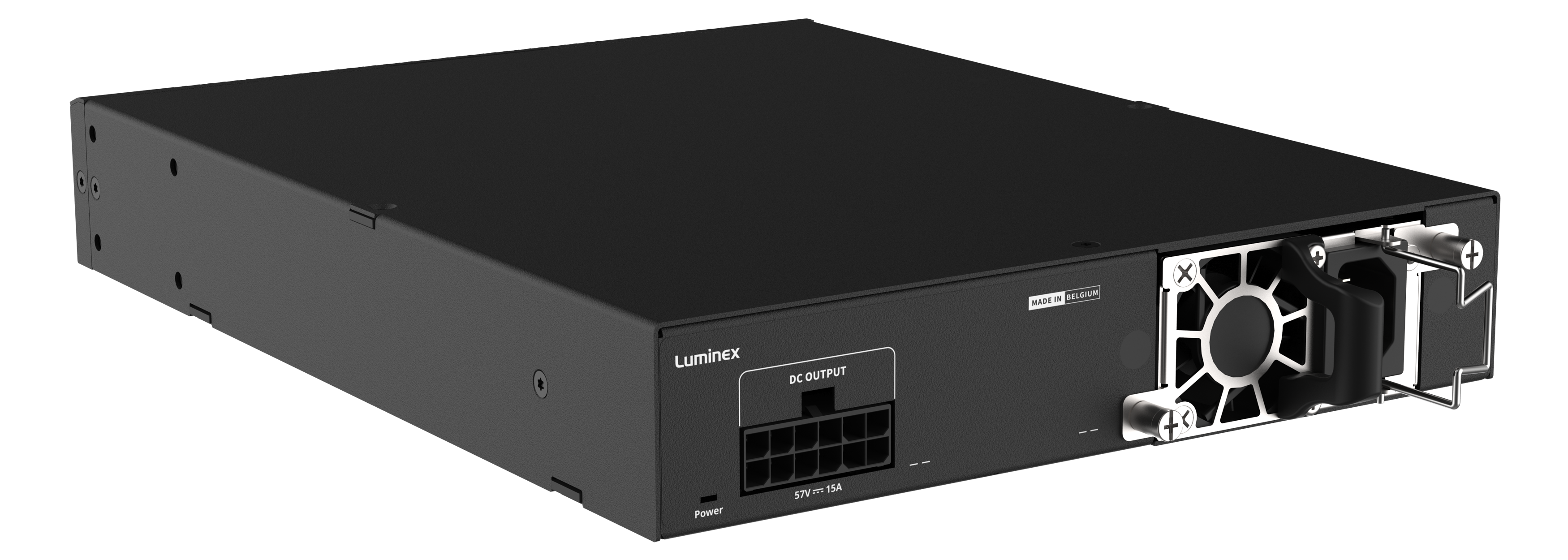

Power connectivity: 1 x IEC inlet
1x proprietary connector for 2m DC cable (supplied with unit)

Power redundancy: For use as a redundant power supply OR an increased PoE budget with compatible models

Operating temperature: 0 to +60 °C
Storage temperature: -40 to +70 °C
Humidity (non condensing): 5 to 95% RH

Mounting: Rack mount 1/2 19"
Enclosure: All metal
Dimensions (W x D x H): 220x296,4x43,2 mm 8,66x11,67x1,7 inch
Weight: 2,8kg (with 550W PSU)
Packaging: 550 mm x 335mm x 68 mm

Certificates/Approvals: cSGSus Mark (UL), CE Mark, UKCA Mark, CB certificate, RoHS
Standards: IEC 62368-1, UL 62368-1, CAN/CSA C22.2 No. 62368-1, EN 62368-1, FCC Part 15 CFR 47, CAN/ICES-003, EN 55032, EN 55024

Product codes: LU 01 00088-550 / RPSU5580 550W

Compatible with:

GigaCore 20t poe
GigaCore18t poe
GigaCore16t poe
GigaCore16tf poe
GigaCore 16i poe

Supplier SKU

LU 01 00088-550
