PIXIEBEAM - Super-fast LED beam, 1x60W RGBW/FC

PIXIEBEAM - Super-fast LED beam, 1x60W RGBW/FC

Name: PIXIEBEAM - Super-fast LED beam, 1x60W RGBW/FC
Brand: Prolights

530004500

Super-fast LED beam, 1x60W RGBW/FC Osram Ostar, 4.5°, infinity P/T, 82W, 4 kg

Description Specification Brand information Downloads

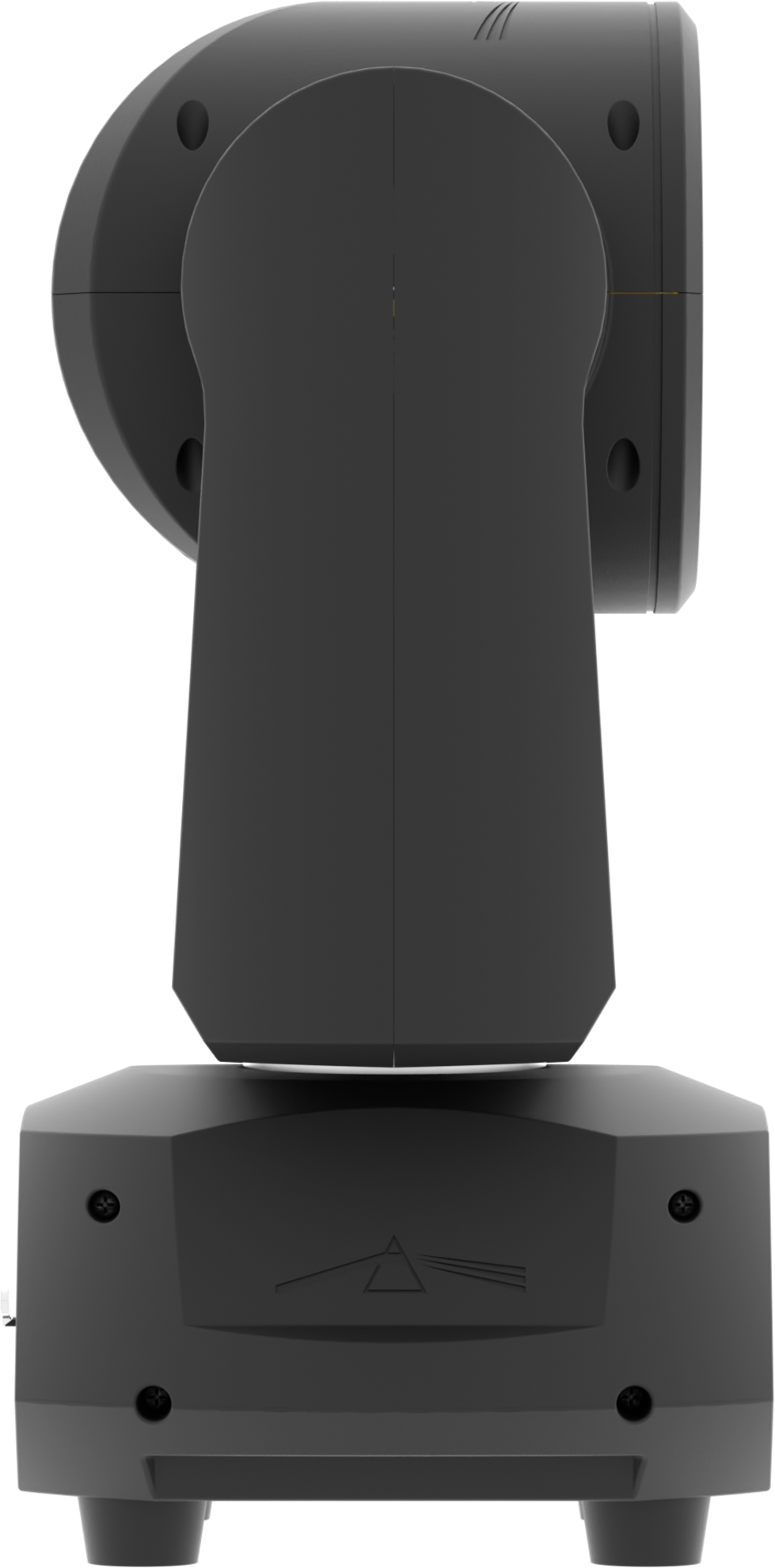

Pixie Beam is a fast, bright and compact moving LED beam luminaire. Some looks are all about scale. The Pixie Beam takes this idea to a different level featuring incredible speed and infinite rotation of both pan and tilt.

Technical Specifications

LIGHT SOURCE

Source: 60W RGBW Osram Ostar LEDs
Lux: 11'120lx @3 m full
Source life expectancy: > 50.000 h

OPTICS

Beam angle: 4,5°
Lens diameter: 100mm

COLOUR SYSTEM

Colour mixing: RGBW / FC
CCT: CCT control through dedicated DMX channel
White presets: 2.000 K ~ 8.000K
Colour wheel: virtual colour wheel with macros

BODY

Pan angle: ° with 360° continuous rotation
Tilt angle: ° with 360° continuous rotation
Pan/Tilt resolution: bit 8 / 16bit
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with hi-resistance polycarbonate cover
Body colour: black

CONTROL

Protocols: DMX512, RDM
DMX channels: 14 / 16 / 18channel
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Hibernation: power safe mode when lost DMX
Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Strobe / shutter: 1 - 25 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free operation

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 82W
Max power consumption (at 120V): 82W
Output (at 230V): 15 units on a single power line

PHYSICAL

IP rating: 20
Cooling: active, silent operation
Suspension and fixing: any position with quick-lock omega brackets
Signal connection: Amphenol XLR 5p IN/OUT connectors
Power connection: Neutrik powerCON IN/OUT connectors
Dimensions (WxHxD): 208x300x144mm
Weight: 4kg

Supplier SKU

PIXIEBEAM

Prolights

PROLIGHTS is the professional lighting division of Music & Lights S.r.l., an Italian company specialized in the manufacture of technologies for the show industry.

The PROLIGHTS brand was established in 2001 with a focus on the design and manufacture of professional lighting & video products for the entertainment, event, broadcast and installation markets.

PROLIGHTS is headquartered in Minturno, Italy, where the companies commerical, operational and R&D centres are all located.

PROLIGHTS continues to experience a sustained growth across all sectors, with its products found on stages and in studios all over the world. Founder Franco Sorabella, and his son Fabio, are both actively involved in the day-to-day running of the business and in the development of the product range.

http://www.prolights.it
