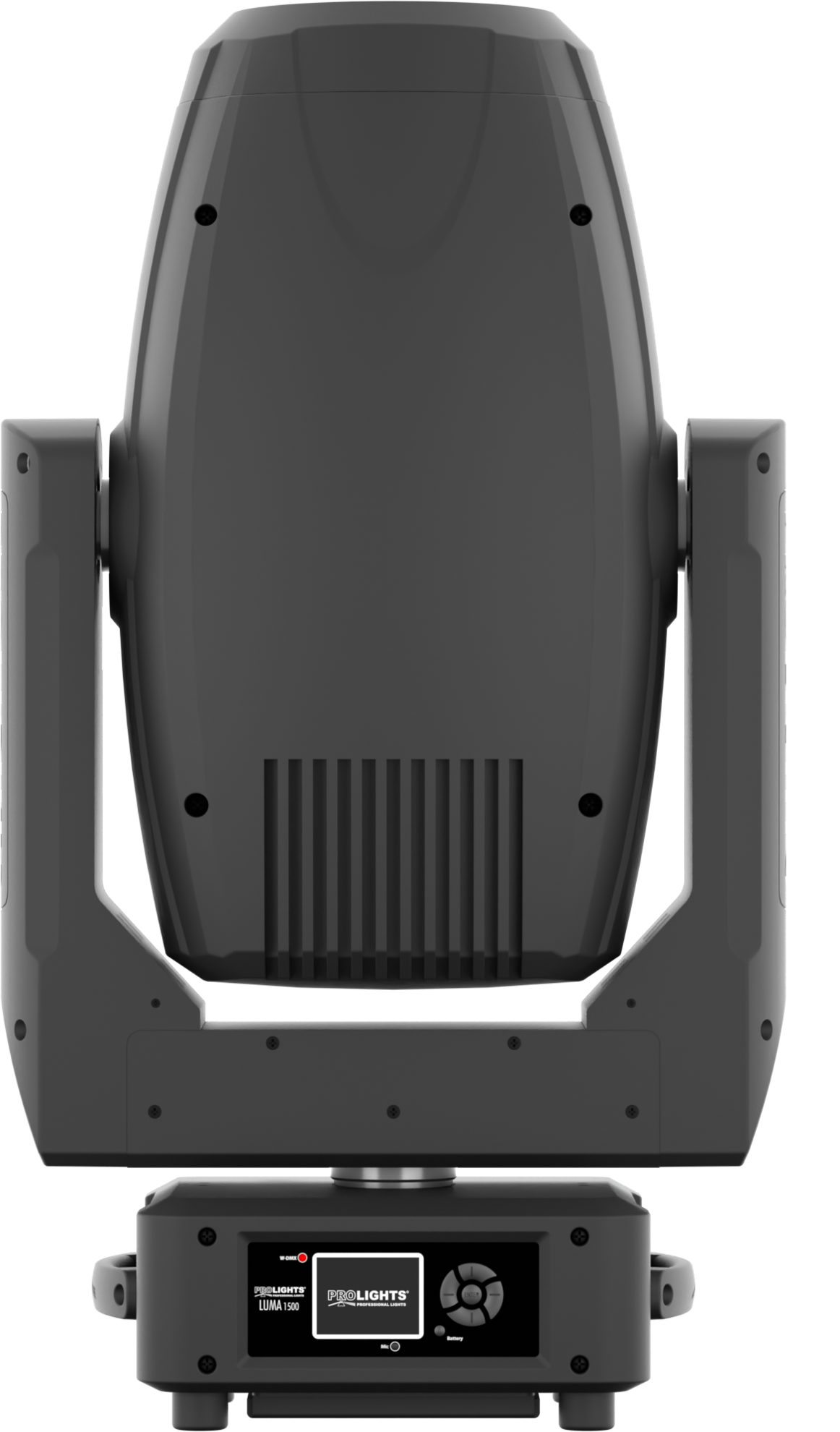

LUMA1500SH - Profiler moving-head/1x440W white LED

LUMA1500SH - Profiler moving-head/1x440W white LED

Name: LUMA1500SH - Profiler moving-head/1x440W white LED
Brand: Prolights

530002200

Profiler moving head, 1x440W white LED, 5-55° fast-zoom. 3f prism, 31 kg

Description Specification Brand information Downloads

Luma 1500SH is a 440W 6.500 K LED profile light designed to replace the 1.200W discharge fixture used in theatres, concerts, events and broadcast. The custom optical system delivers a consistent output with a flat-field and crisp gobo projection right through the massive 5° to 50° zoom range.

Technical Specifications

LIGHT SOURCE

Source: 440W high-power white LED
CCT: 6.500K
Lux: (5°) 26'533 lx - (50°) 1'535lx @5 m full
Source life expectancy: > 20.000 h

OPTICS

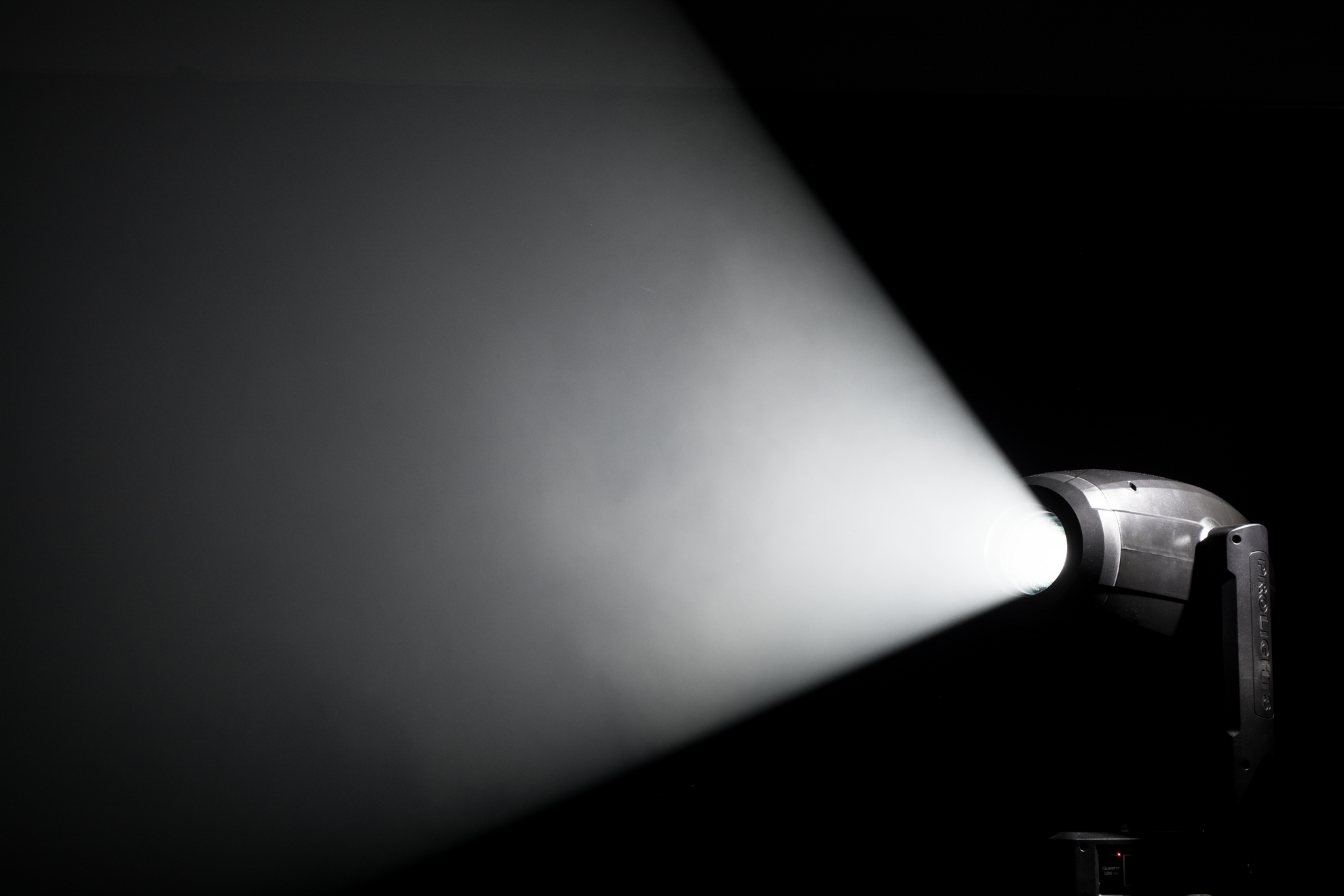

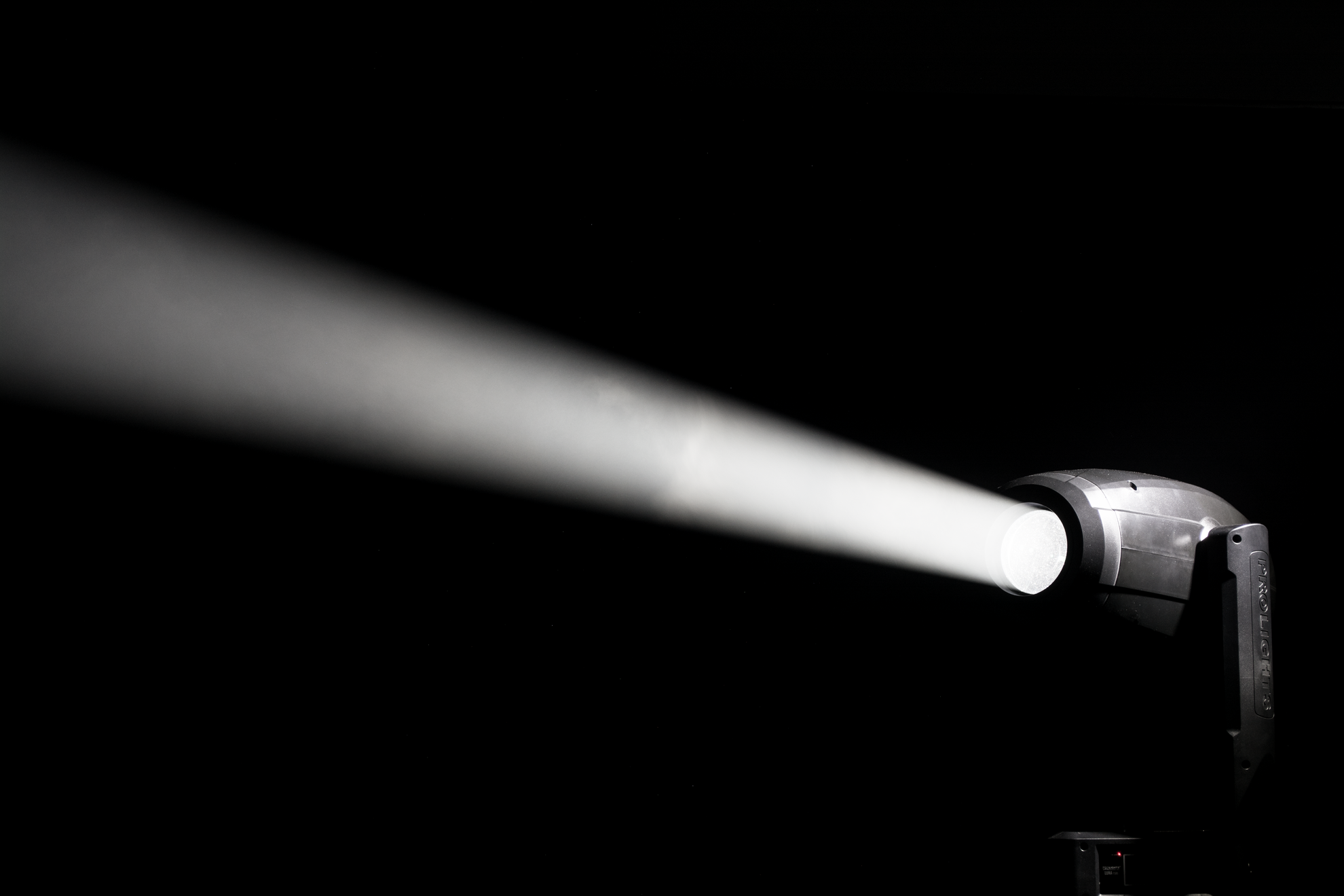

Zoom: 5° - 50° motorised linear zoom
Lens diameter: 120mm
Lens type: HD anti-reflection lenses with achromatic coating
Focus: motorised with auto-focus
Other: high-quality flat-field projection

COLOUR SYSTEM

Colour mixing: linear CMY
CCT: linear CTO correction 2.700 K ~ 6.000 K
Colour wheel: 7 colour filters

DYNAMIC EFFECTS

Shutter system: (inc) 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
Animation wheel: (opt) animation wheel with CW and CCW rotation
Rotating gobos: 6 rotating gobos + open, interchangeable, indexing
Gobo size: outer: 26,7 mm - image: 20 mm - thickness: 1,1 mm
Fixed gobos: 7 fixed gobos + open, interchangeable
Gobo size: outer: 26,7 mm - image: 20 mm - thickness: 1,1 mm
Circular prism: 3f with bi-directional rotation, indexing
Frost: linear 0 - 100% frost filter
Iris: 5 - 100% motorised iris

BODY

Pan angle: 630° - 540°
Tilt angle: 267°
Pan/Tilt resolution: bit 8 / 16bit
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with hi-resistance polycarbonate cover
Body colour: black

CONTROL

Protocols: DMX512, RDM, W-DMX
DMX channels: 28 / 30 / 37 / 38channel
W-DMX: included, wireless solution receiver
RDM: RDM for remote monitoring and settings
Display: LCD high resolution colour display
Firmware upgrade: yes, via USB - DMX interface (UPBOX2) not included
Hibernation: power safe mode when lost DMX

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Strobe / shutter: 1 - 28 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -10° ~ +45°

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 650W
Max power consumption (at 120V): 650W
Power factor: 0,98

PHYSICAL

IP rating: 20
Cooling: combination of heat pipe cooling system and low noise fan
Suspension and fixing: any position with quick-lock omega brackets
Pan / tilt lock: for transportation and maintenance

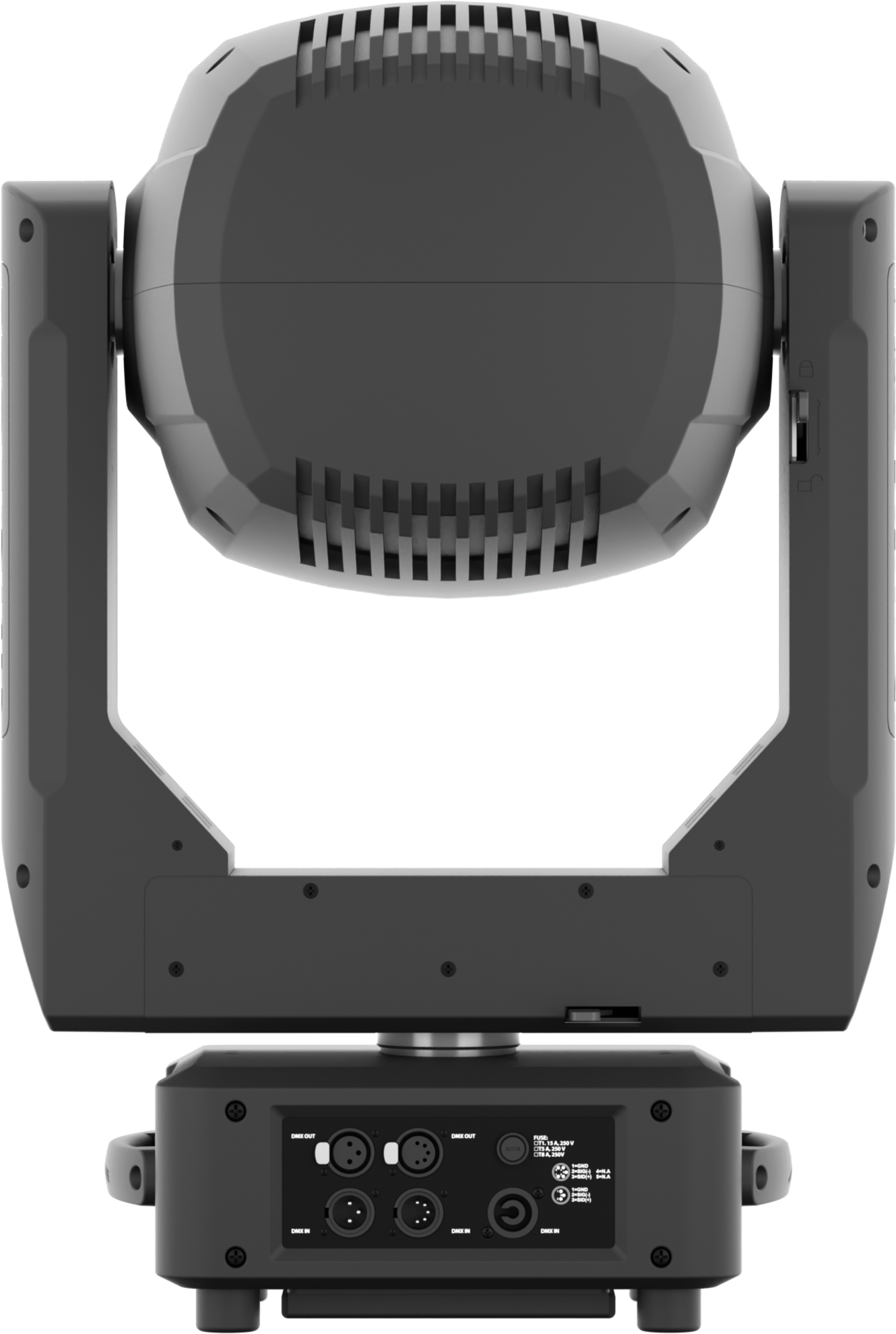

Signal connection: Amphenol XLR 3p + 5p IN/OUT connectors
Power connection: Neutrik powerCON TRUE1 IN connector
Dimensions (WxHxD): 428x757x291mm
Weight: 31kg
