ASTRA BEAM 120IP

530010420

IP65 beam moving head with a 120W white Laser source and CMY

Description Specification Brand information Downloads

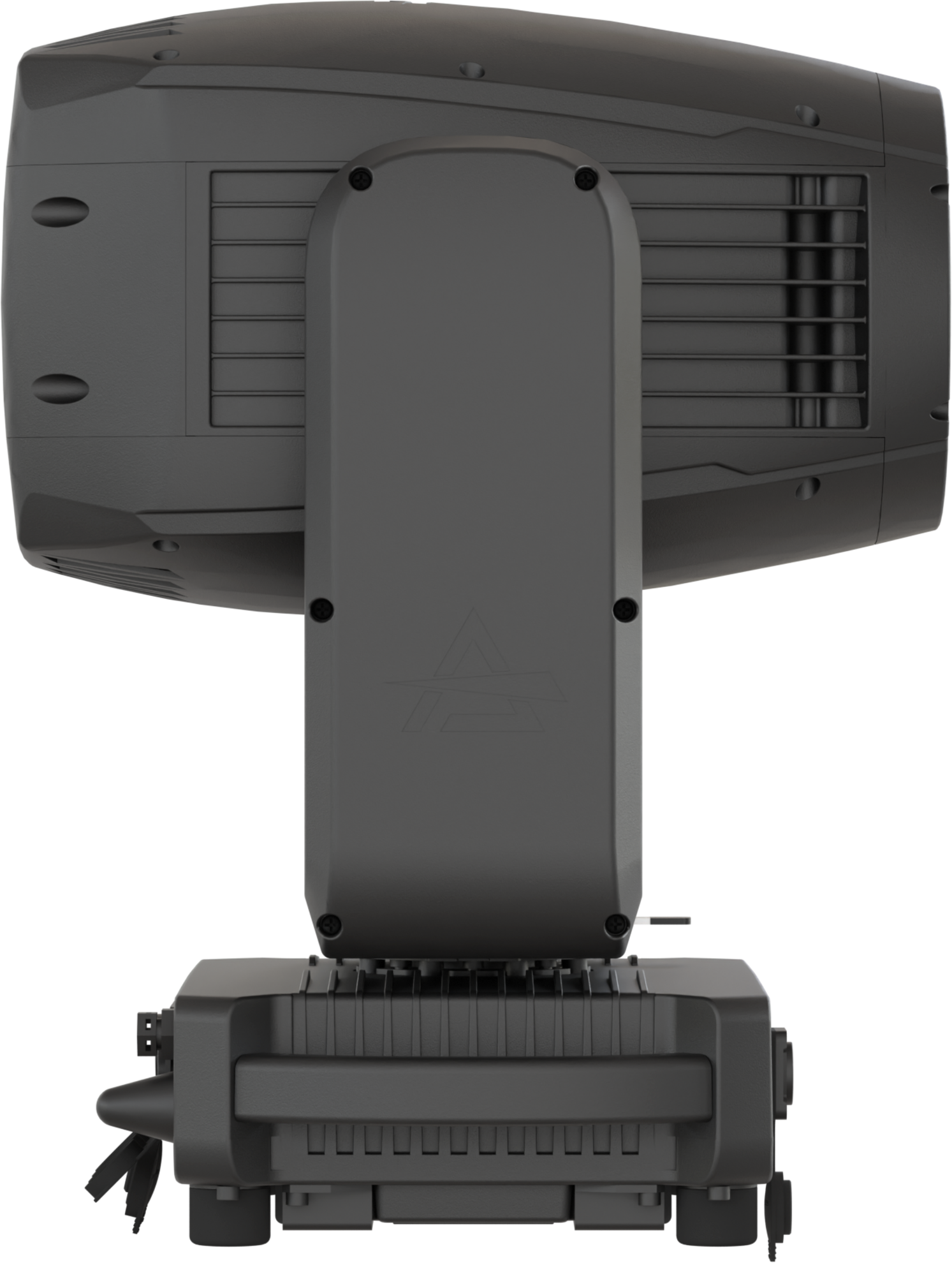

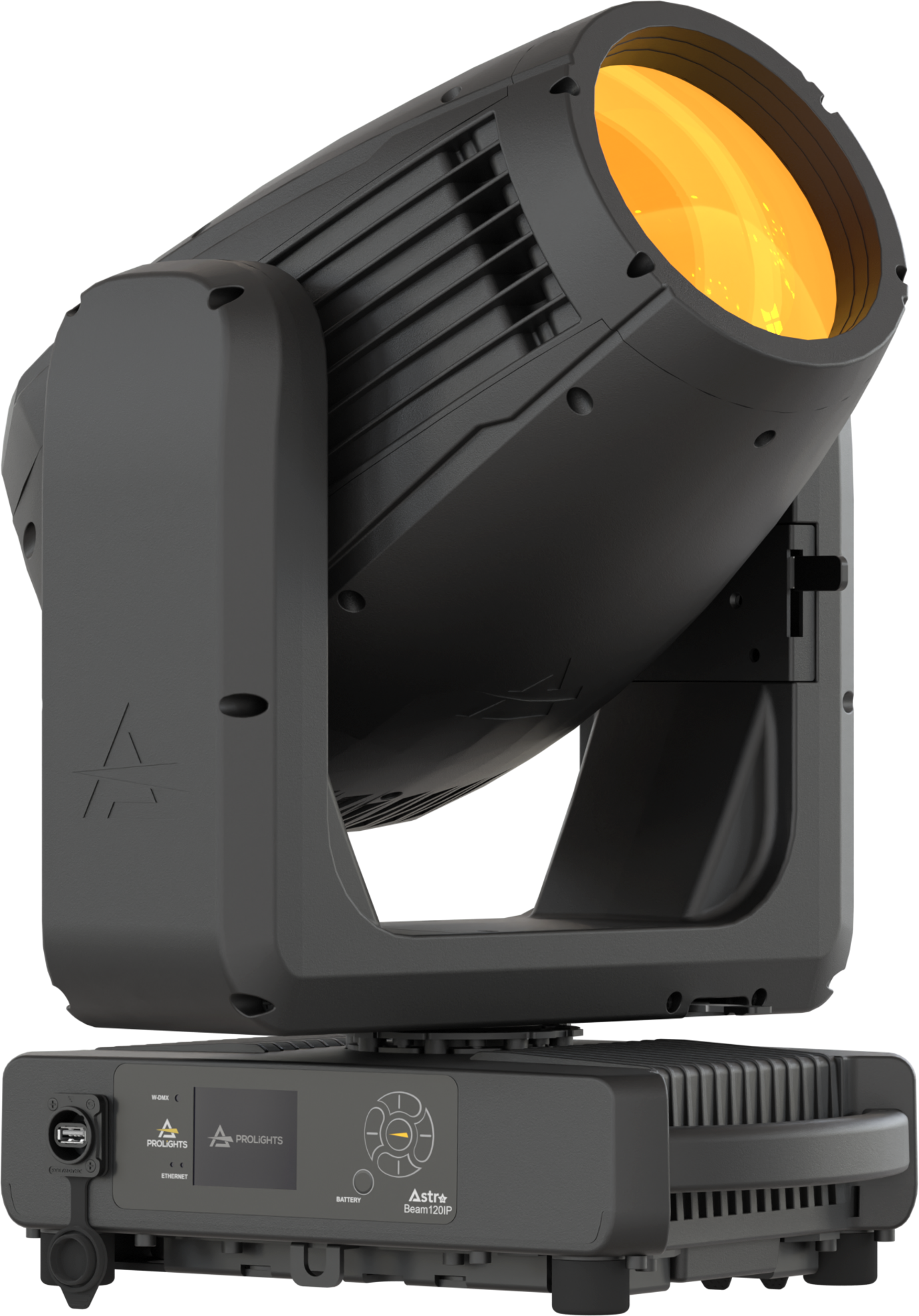

Astra Beam120IP

IP65 beam moving head with a 120W white Laser source and CMY

Astra Beam120IP stands as a formidable IP-rated pure beam moving head, leveraging a 120W phosphor laser source to cast intense white light. ,

Designed for both indoor and outdoor large stage applications, its power and versatility are unmatched.

This moving head's advanced phosphor laser source, characterized by a notably small light-emitting surface, works in tandem with a custom-engineered optical system.

The result is a striking 0.6° fat, parallel beam that excels in long throw aerial effects, offering unparalleled intensity and contrast.

The Astra Beam120IP is not just about raw power; it's a hub of creative potential. Its comprehensive feature set enables limitless color possibilities and visual effects.

This includes linear CMY color mixing, a color wheel, one rotating gobo wheel, one static gobo wheels and one animation wheel.

The unit also boasts four prisms, dual frost filters, and infinite Pan & Tilt rotation, further expanding its capacity for effect possibilities.

Main features:

IP65 Beam moving light equipped with a 120W white Laser source
0.6° beam angle for long throw applications
360° P&T, CMY, 1x color wheel, 13 rotating and 29 fix gobos, one animation wheel, 4 prisms, 2 frost

Technical Specifications

LIGHT SOURCE

Source: 120W Phosphor Laser source
CCT: 7'000K
Lux: 204'167lx @15 m full
Source life expectancy: > 12.000 h

OPTICS

Beam angle: 0,6°
Lens diameter: 143mm / 5.63''
Lens type: HD anti-reflection lenses with achromatic coating
Focus: motorised

COLOUR SYSTEM

Colour mixing: linear CMY
CCT: several CTB/CTO on wheel
Colour wheel: open + 24 colour filters

DYNAMIC EFFECTS

Control Resolution: 16-bit dimmer
Animation wheel: animation wheel with CW and CCW rotation
Rotating gobos: 13 rotating gobos + open, interchangeable, indexing
Gobo size: outer: 8,4 mm - image: 4 mm - thickness: 0,3 mm
Fixed gobos: 29 fixed gobos + open
FX generator: prisms overlap for spectacular aerial effects
Circular prism: (prism wheel 1) 16f and 6f (prism wheel 2) 8f with bi-directional rotation, indexing, interchangeable
Linear prism: (prism wheel 1) 6f (prism wheel 2) 4f and 6f with bi-directional rotation, indexing, interchangeable
Rotating prism wheel: 2 indipendent wheels with 3 prisms each
Frost: dual frost filter, soft-edge and heavy

BODY

Pan range: 540° with 360° continuous rotation
Tilt range: 270° with 360° continuous rotation
Pan/Tilt resolution: bit 8 / 16-bit
Feedback: automatic repositioning after accidental movement
Body: weatherproof IP65 construction with die-cast magnesium alloy
Body colour: black

CONTROL

Protocols: DMX512, RDM, ArtNet, sACN, CRMX
DMX channels: 32channel
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings

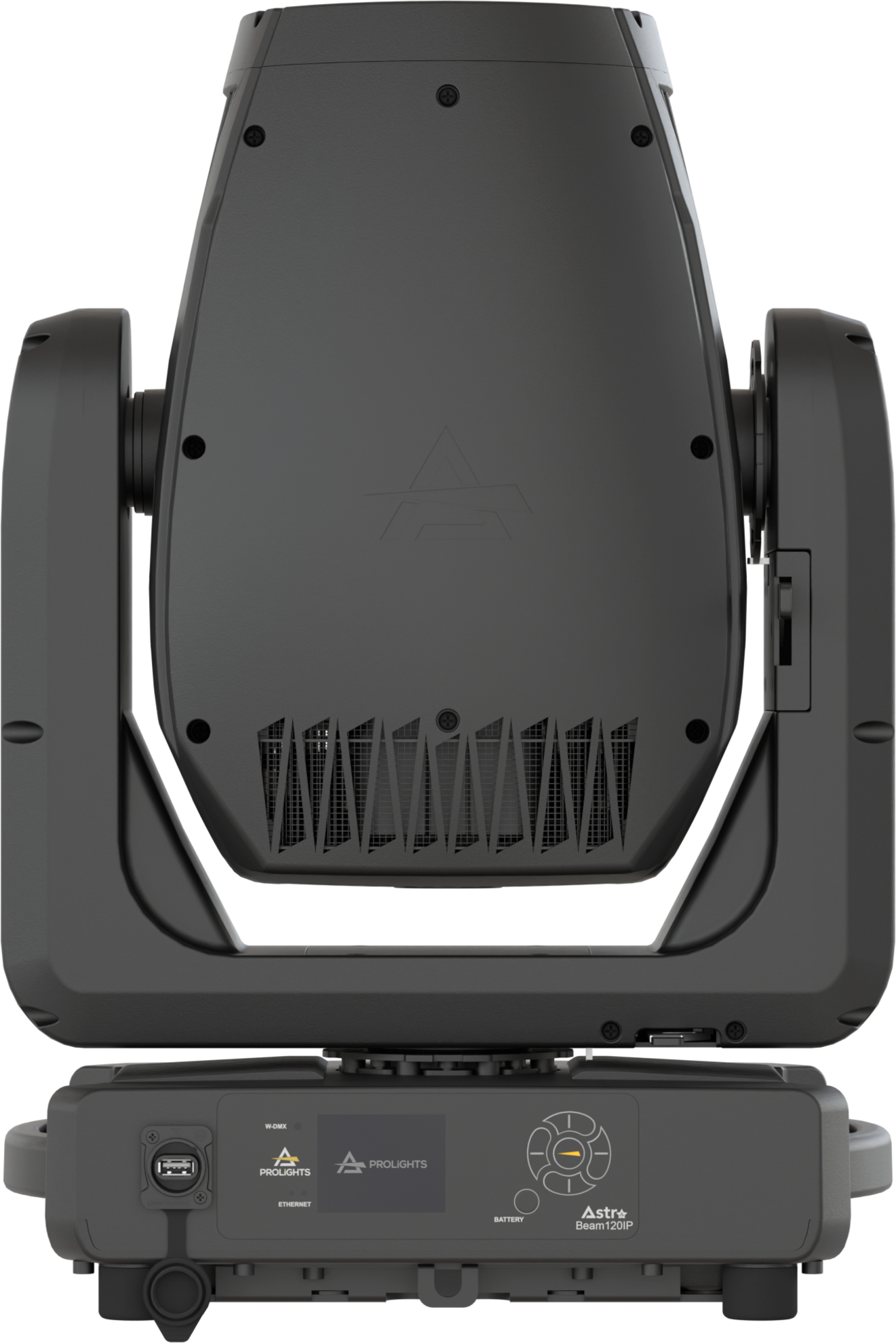

Display: LCD high resolution colour display with autoflip
Firmware upgrade: via DMX with UPBOXPRO (USB-DMX interface not included) or via USB pen drive
EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1-30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -20° C / +45° C (-4° F / +113° F) Ta
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 50.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 150W
Standby power: 66,4 W
Output (at 230V): 14 units on a single power line
Power factor: > 0,96

PHYSICAL

IP rating: 65 for temporary outdoor use (*)
Cooling: combination of heat pipe cooling system and low noise fan
Suspension and fixing: any position with quick-lock omega brackets
Pan / tilt lock: for transportation and maintenance

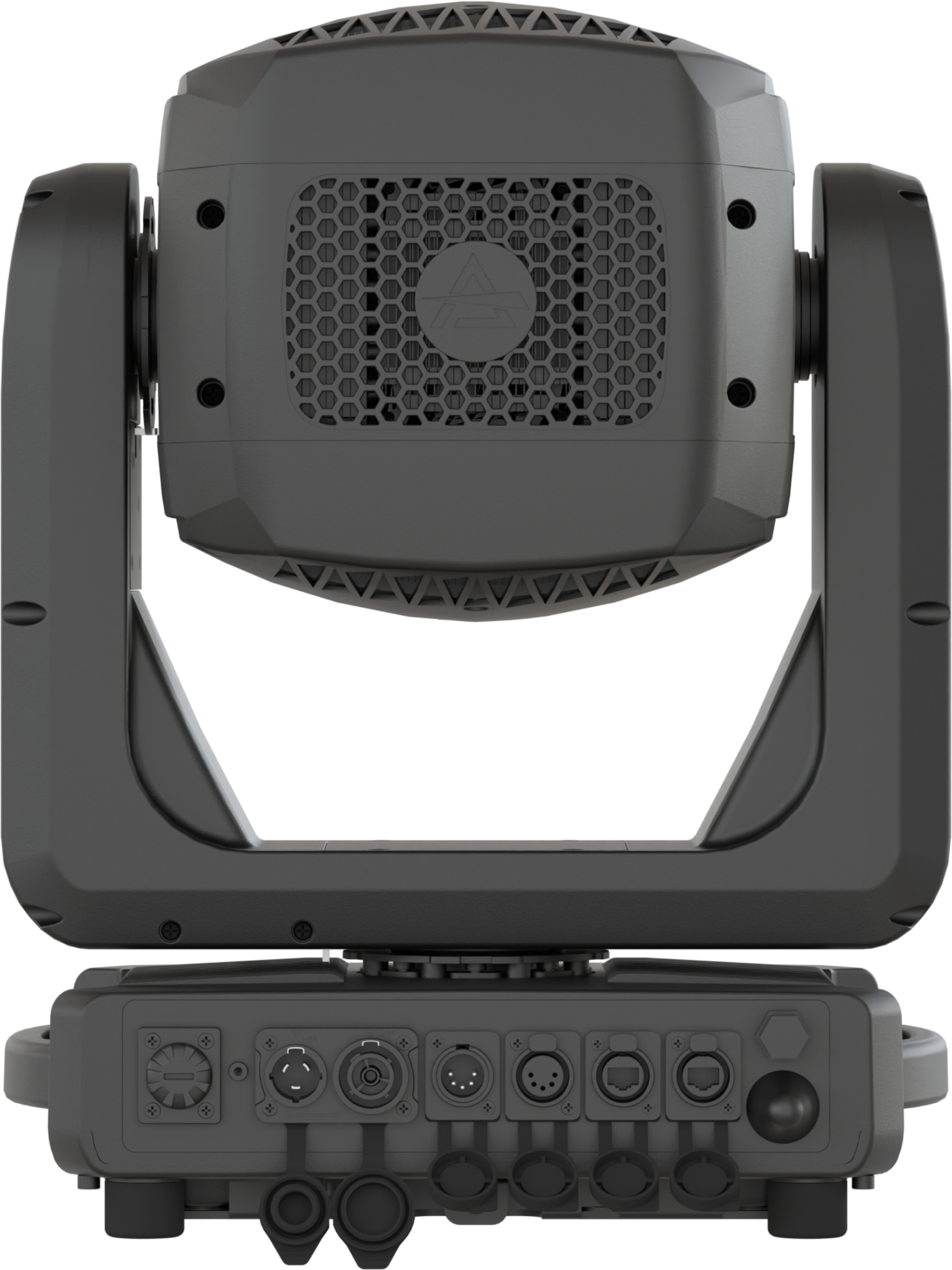

Signal connection: IP65 Seetronic XLR 5p IN/OUT connectors
Data connection: IP65 Seetronic Art-Net RJ45 IN/OUT
Power connection: Seetronic powerCON TRUE IP65 IN
Dimensions (WxHxD): 366x528x258mm / 14.41''x20.79''x10.16''
Weight: 20kg / 44.09lbs

(*)

NOTE: Suitable for permanent outdoor use, provided installation and maintenance cycles by qualified technicians are carried.

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, RCM

BOX CONTENT

1 x ASTRABEAM120IP
2 x OSIPPLUS
1 x Antenna
1 x 1,5 meters 3G1,5mmq power cable (BARE END - SEETRONIC POWERCON TRUE1 IP65 power connector)
User Manual

Supplier SKU

ASTRABEAM120IP
