EclFresnel PO Turnable White/6 colour

Name: EclFresnel PO Turnable White/6 colour
Brand: Prolights

530060970

FRESNEL projector PO BK, 260W full colour and TW LED, 17-57°, barndoors incl.

Description Specification Brand information Downloads

EclFresnel PTW is an advanced LED replacement of traditional 1.000W Fresnel lamps. Offering 6 colour mixing, delivering high precision reproduction of the white spectrum from 2.800 K to 10.000 K with high CRI and an extensive colour reproduction.
The optical system harnesses the power of a 260 W custom LED with 6 colours to create an even projection, beautiful colours and precise white, with the option to apply +/- green and magenta correction to match other sources of light.
Featuring HD dimming and tuning from 2.800 K to 10.000 K version, the EclFresnel PTW delivers the performance and quality of output demanded from this level of luminaire.

Technical Specifications

LIGHT SOURCE

Source: 260W 6 colour custom LEDs source (red, orange, green, royal blue, blue, lime)
CCT: 2.800 K - 10.000K
Luminous flux: (17°) 4'653 lm - (57°) 7'896lm @full
Lux: (17°) 1'678 lx - (57°) 344lx @5 m full
CRI: 90 @3.200 K; 89 @5.600 K
R9: 80 @3.200 K; 87 @5.600 K
TLCI: 77 @5.600 K
TM30 Rf: 87 @3.200 K; 81 @5.600 K
TM30 Rg: 106 @3.200 K; 106 @5.600 K
Source life expectancy: > 50.000 h

OPTICS

Zoom: 17° - 57° half peak angle
Lens diameter: 8'' - 200mm
Lens type: Fresnel zoom lens
Focus: manual

COLOUR SYSTEM

Colour mixing:
CCT: CCT control, + / - green correction, tungsten emulation
White presets: 2.800 K -10.000K
Colour wheel: virtual colour wheel with macros
Macros: several pre-build macros with adjustable speed

DYNAMIC EFFECTS

Static mode: selection of static colour
Manual mode: manual adjustment of intensity, CT, colour correction from knob
Auto mode: built-in programs with execution speed adjustment
Special features: linear crossfade channel from any white to any colour; virtual CTO on colours

BODY

Hardware on-board: filter frame, 8 doors barndoor, spigot
Pan angle: 360° with manual regulation
Tilt angle: 340° with manual regulation
Body: sturdy die-cast aluminium body

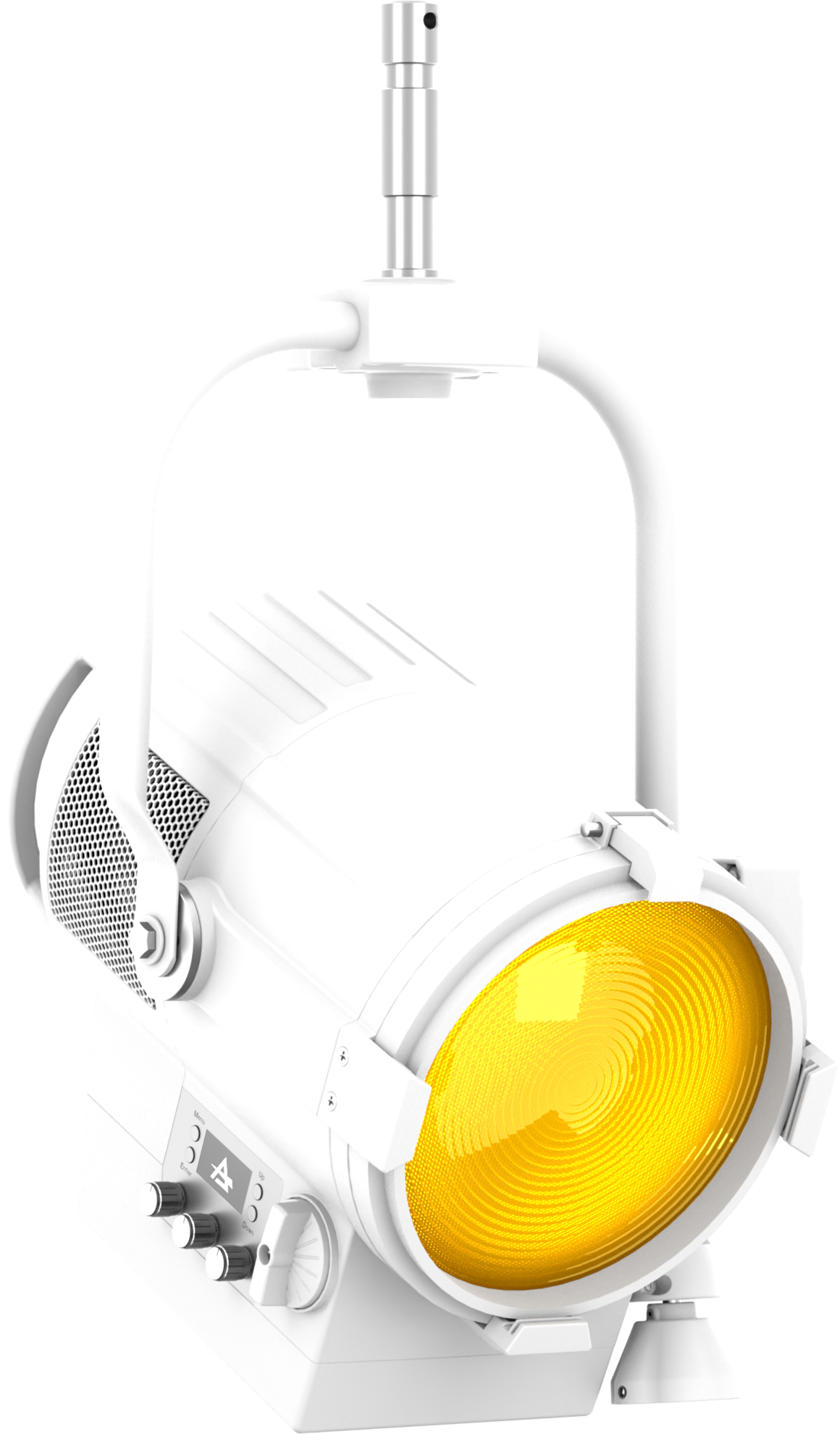

Body colour: black, white finishing available
Other: spigot 28 mm

CONTROL

Protocols: DMX512, RDM, rotatory knob
DMX channels: 1 / 2 / 5 - 1 / 5 - 2 / 7 / 9 / 12 / 13 / 16 / 19 / 21channel
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
Other: 16bit control of dimmer and colour

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 260W
Output (at 230V): 11 units on a single power line
Power factor: >0,93

PHYSICAL

IP rating: 20
Cooling: combination of heat pipe cooling system and low noise fan
Suspension and fixing: bracket for hanging and positioning
Signal connection: Amphenol XLR 5p IN/OUT connectors
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
Dimensions (WxHxD): 341x545x343mm
Weight: 9,7kg

Supplier SKU

ECLFRESNELPTW
