Ecl Fresnel Jr VW Pole Operated Black

Name: Ecl Fresnel Jr VW Pole Operated Black
Brand: Prolights

530067820

Variable White 2'700K-5'600K LED JR Fresnel, manual zoom 15,5° -83; 150W, BK, PO

Description Specification Brand information Downloads

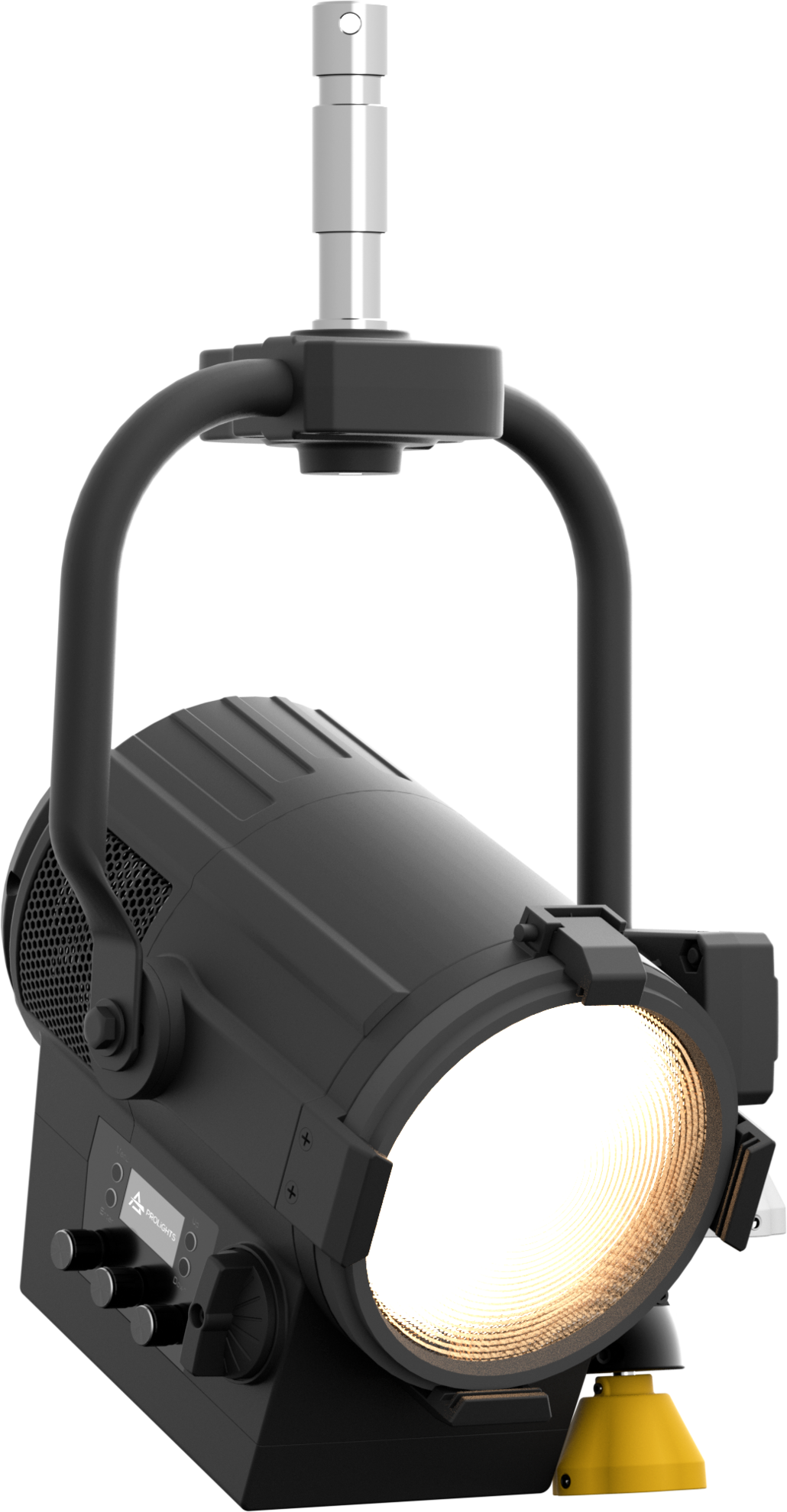

The EclFresnel JrVW is a compact LED Fresnel lamp, designed as a replacement for a 600W fixture, with a bright and high-quality variable-white light, from 2,700K to 5,600K, using a 150W LED source.

This is the perfect luminaire for those applications requiring high-quality white rendering, such as in TV studios, galleries, and virtual productions, with high CRI (>96), TLCI (>96), TM-30 and R9.

The EclFresnel JrVW has a manual zoom range from 15,5° to 83°, with precise focusing, and an 8-leaf barndoor (included).

This fixture has an intuitive user interface with rotatory knobs. It also has stand-alone settings, PowerCon True in & through connections and XLR in & through, offering an incredible user experience and easy setup.

Technical Specifications

LIGHT SOURCE

Source:150WVariable White LED
CCT: 2.700 K - 5.600K
Luminous flux: (15,5°) 2'270 lm - (83°) 4'558lm @full
Lux:(15,5°) 1'196 lx - (83°) 201lx@5 m full
CRI:94 @WW; 95 @CW; 94 @full

R9:89 @WW; 88 @CW; 78 @full
TLCI:98 @WW; 98 @CW; 98 @full
TM30 Rf: >94 @WW; >93 @CW; >94 @full
TM30 Rg: <102 @WW; <103 @CW; <104 @full
Source life expectancy:> 50.000 h

OPTICS

Zoom:15,5° - 83°manual
Lens diameter:6'' - 150mm
Lens type:fresnel zoom lens
COLOUR SYSTEM

Colour mixing:tunable white
CCT:CCT control through dedicated DMX channel
White presets: 2.700 K - 5.600K
Colour wheel: built-in white presets

DYNAMIC EFFECTS

Control Resolution:16-bit dimmer
Static mode:selection of static dimmer and color temperature
Manual mode: manual adjustment of intensity and CT from knob
Auto mode: built-in programs with execution speed adjustment

BODY

Hardware on-board: filter frame, 8 doors barndoor, spigot
Pan angle: (for pole operated version) 360° with manual regulation
Tilt angle:(for pole operated version) 340° with manual regulation
Body:sturdy die-cast aluminium body

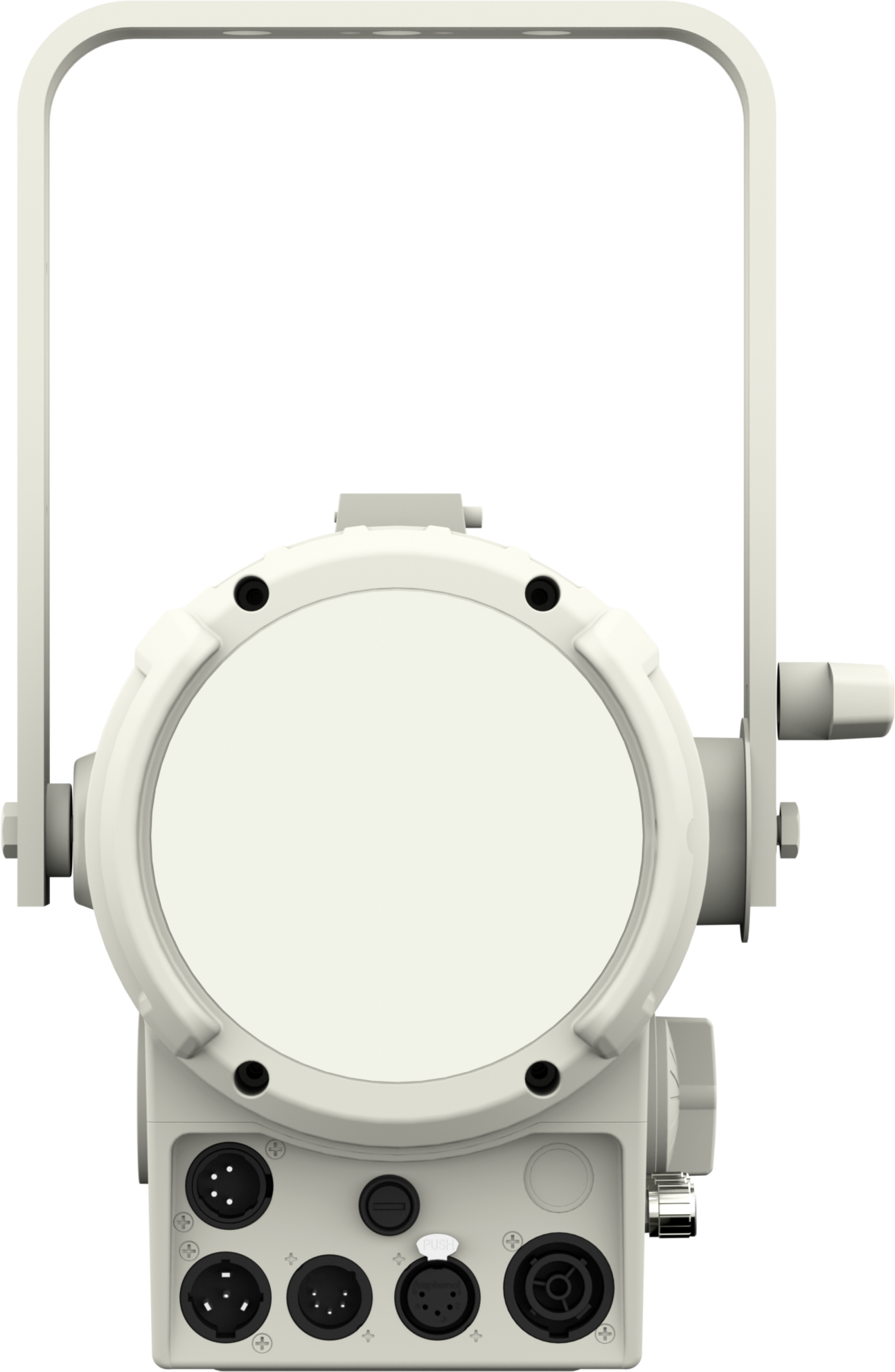

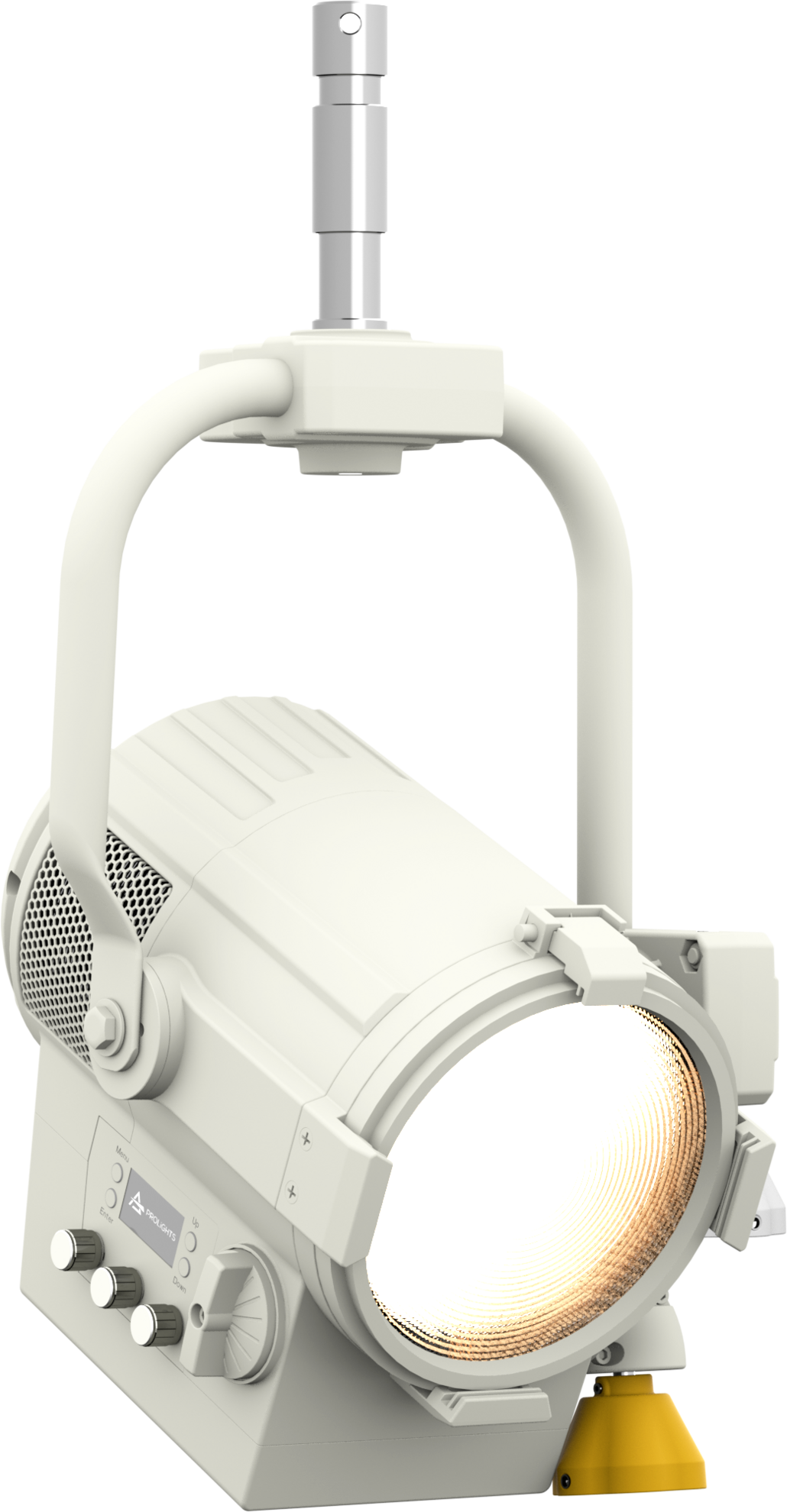

Body colour:RAL 9004 or RAL 9003

CONTROL

Protocols: DMX512, RDM Stand Alone:
3rotatory knobs
DMX channels: 1 / 2 / 4 / 5 / 11channel
RDM:RDM for remote monitoring and settings

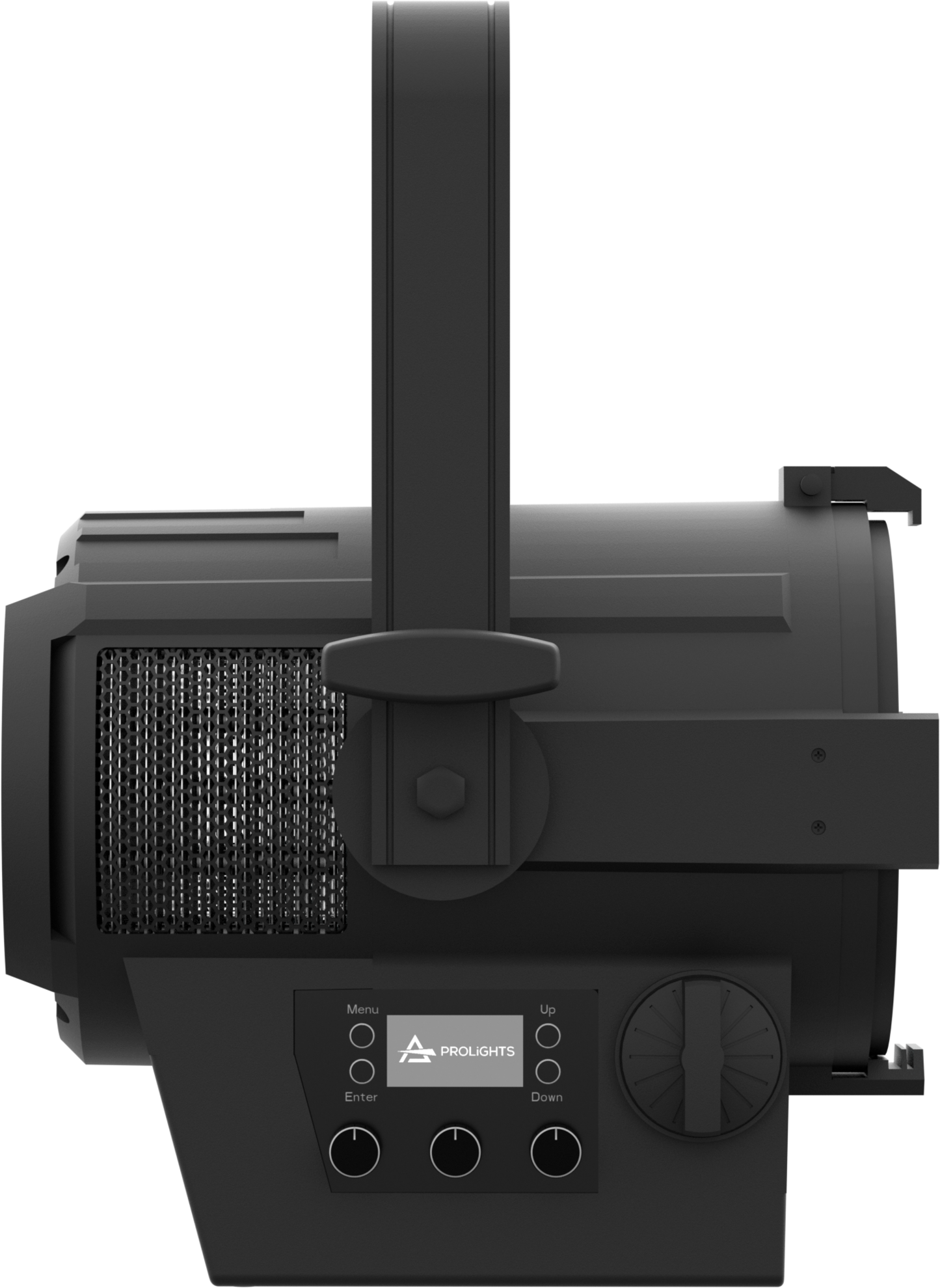

Display:Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included

ELECTRONICS

Dimmer: Linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30Hz, electronic
Operating temperature : -20° ~ +45°
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 125W
Output (at 230V): 23

units on a single power line Power factor:> 0,95

BATTERY

Battery:29,6V 4400 mAh external battery (optional ECLFRSJBP4)
Re-charge connection: connection for external battery throught

XLR 4p
Other: Voltage range: 22,4V-33,6V

PHYSICAL

IP rating: 20

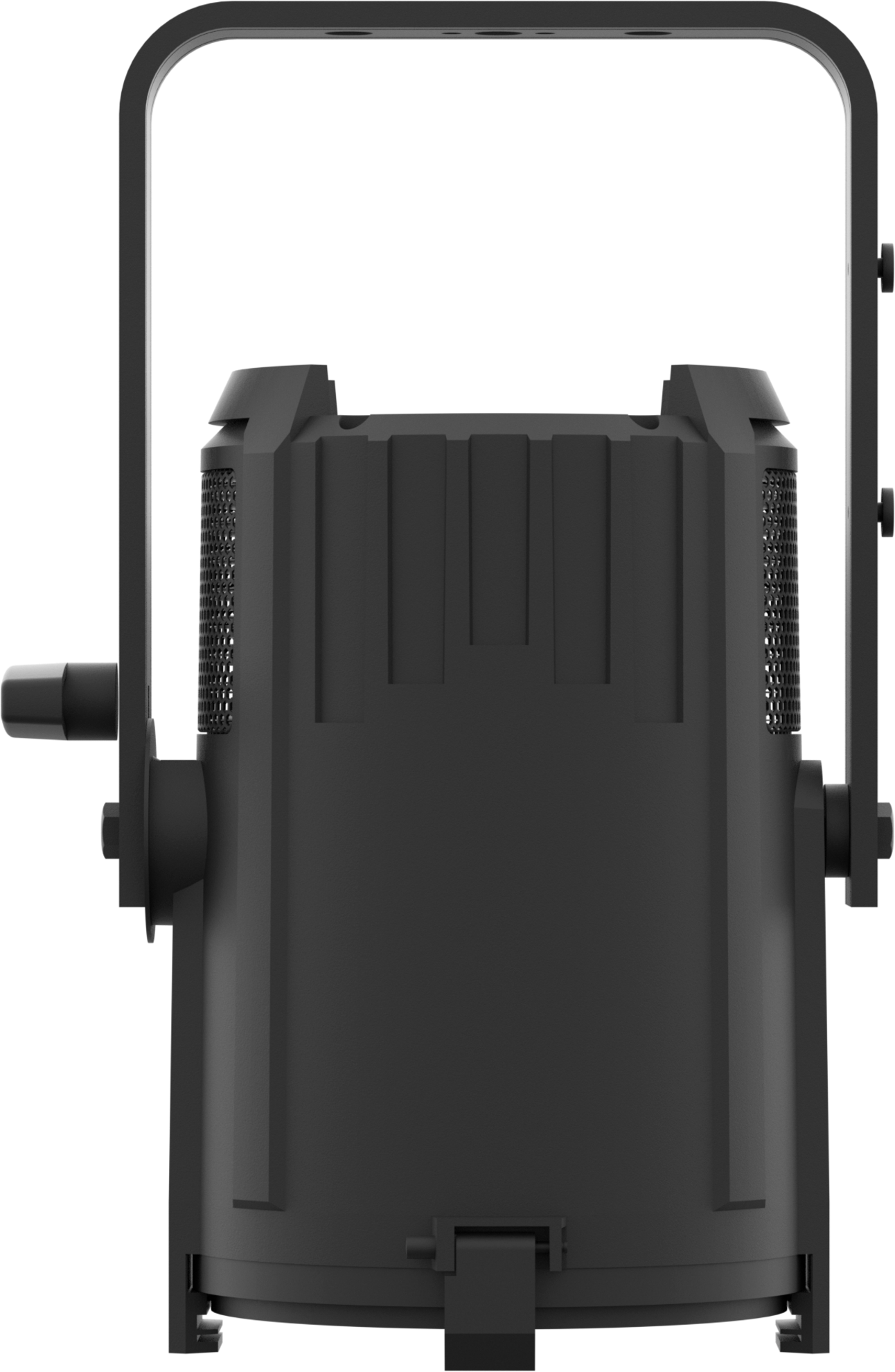

Cooling: combination of heat pipe cooling system and low noise fan
Suspension and fixing:bracket for hanging and positioning

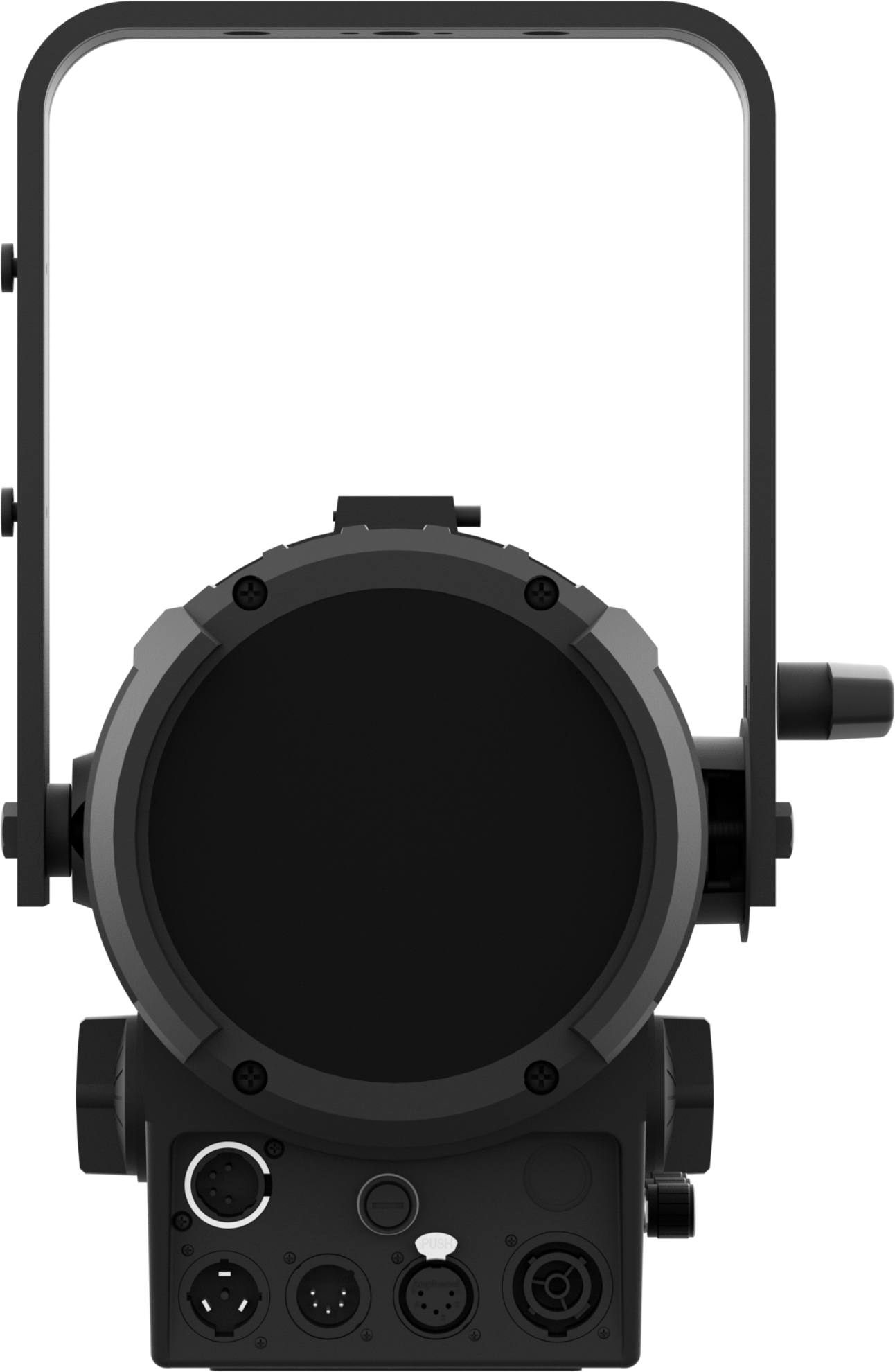

Signal connection:Amphenol XLR 5p IN/OUT connectors
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
Dimensions (WxHxD):235x360x260mm
Dimensions with PO system (WxHxD): 298x496x260 mm
Weight: 6kg
Weight with PO system: 7,5 kg

CERTIFICATIONS / APPROVALS

Certifications / Approvals:CE, UKCA, RCM

Supplier SKU

ECLFRESNELJVWPOBK

IP Rating

IP20
