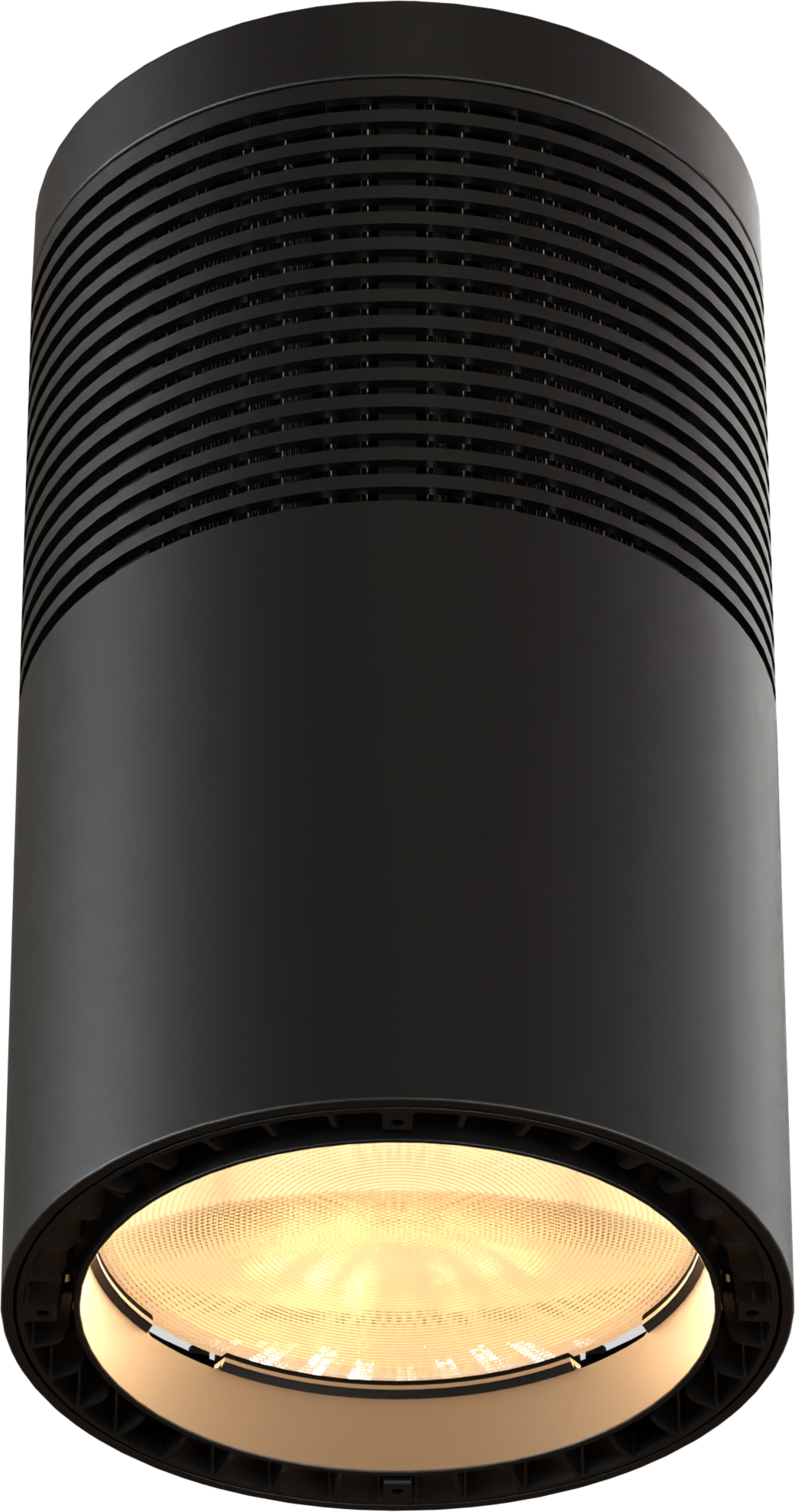

EclPendant VW 200W House Light

200W Variable White innovative pendant house light

Housing Colors

Please select variant!

Description Specification Brand information Downloads

The EclPendant VW is a beautifully designed house light packed with high-performing technology that makes any venue well-lit whilst staying eco-friendly.
This innovative series of pendant lights come with a full range of optics, accessories, mounting options and control.
The EclPendant VW has a 200-Watt LED source Variable White that have high-quality light output, a consistent colour temperature and unmatched durability.
Several advanced user settings are available from the unit's on-board GUI and control protocols like DALI, DMX + RDM and Wireless DMX (CRMX + W-DMX).
The EclPendant VW was made for several uses - its mounting options include pendant, surface, stem, wall mount, adjustable bracket, and recessed. It's also possible to wire the EclPendant VW series directly to mains (100-240AC or 48V DC) and DMX or DALI through terminal blocks or feed power and DMX using the TrueOne and DMX connections.
The fixture has a wide range of optics and accessories available, with an uncompromising approach to flexibility and precision. All the optics are easily changeable on-site, providing a hassle-free user experience.
The EclPendant VW has a fan-free thermal design and delivers a powerful and consistent lumen output over a long lifespan.

Technical Specifications

LIGHT SOURCE
Source: 200W Variable White LED
CCT: 2'700K - 6'500K
Luminous flux: (2'700K) 9'919 lm; (6'500K) 12'487 lm; (FULL) 14'571
Lux: (2'700K) 1'956 lx; (6'500K) 2'529 lx; (FULL) 2'933lx @5 m
CRI: 95,9 @2'700K; 96,3 @6'500K; 95,1 @ full
R9: 95 @2'700K; 95 @6'500K; 79,9 @ full
TLCI: 97 @2'700K; 96 @6'500K; 97 @ full
TM30 Rf: 95,2 @2'700K; 90,8 @6'500K; 92,6 @ full
TM30 Rg: 104,2 @2'700K; 100,4 @6'500K; 104 @ full
Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS
Beam angle: 20°
Field angle: 40°
Lens diameter: 157mm / 6.18''
Lens type: fresnel lens
Other: see available accessories

COLOUR SYSTEM
Colour mixing: tunable white
CCT: linear CCT control
Macros: built-in white presets

DYNAMIC EFFECTS
Static mode: selection of static dimmer and color temperature
Manual mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment

BODY
Body: sturdy die-cast aluminium body
Body colour: RAL 9004 or RAL 9010

CONTROL
Protocols: DALI Type8, DMX512, RDM, CRMX
DMX channels: 1 / 2 / 5 / 9 / 13channel
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
Other: 16bit control of dimmer and colour

ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1-30 Hz, electronic
Operating temperature: -10° ~ +45°
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 40.000 Hz

ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Low Voltage DC mains: DC 48V for emergency light use
Max power consumption: 225W
Standby power: 34,2 W
Power factor: > 0,95

PHYSICAL
IP rating: 20
Cooling: Heatsink with heat pipes, passive cooling and fan-free
Suspension and fixing: bracket for hanging and positioning (bracket not included on the product)

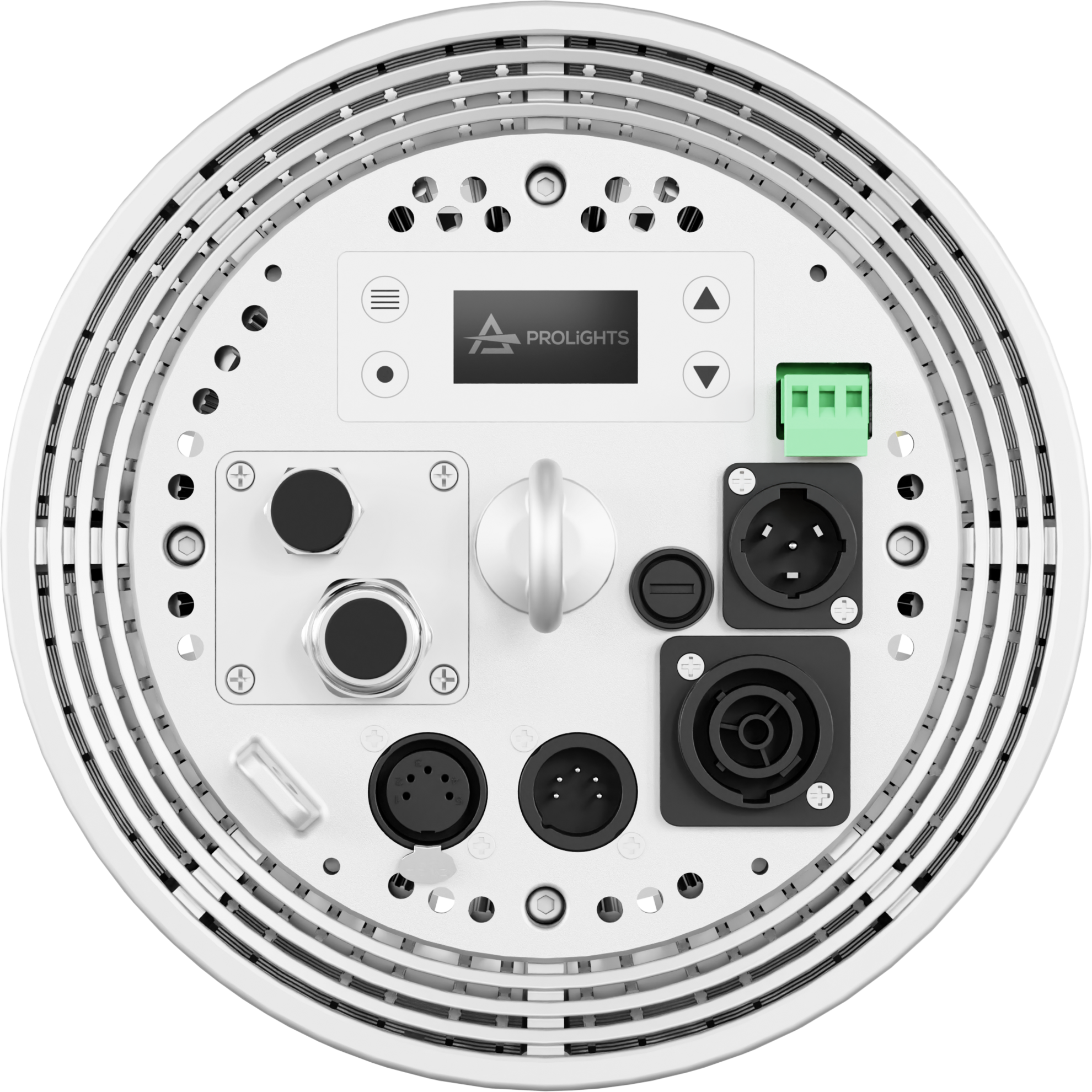

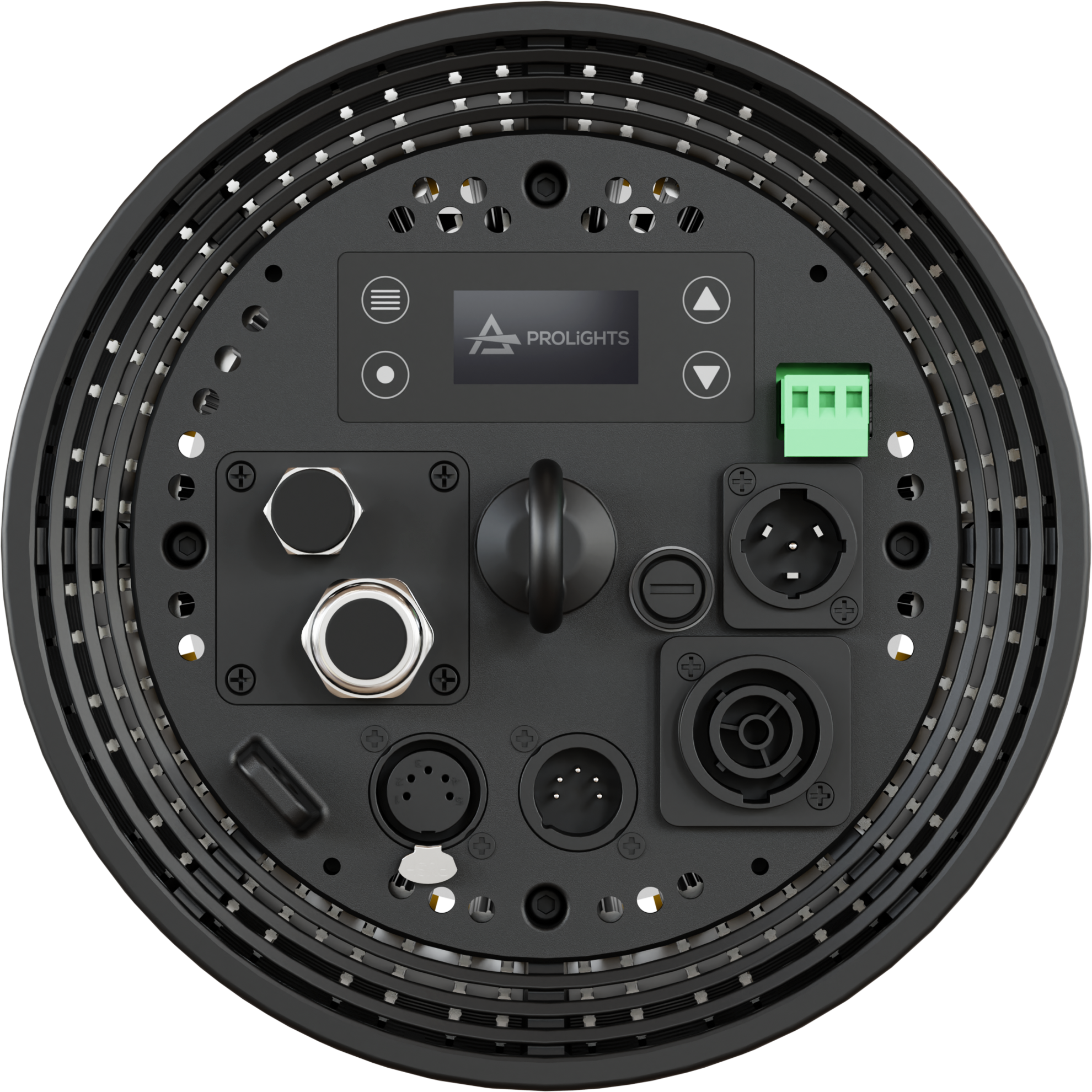

Signal connection: screw terminal block, Amphenol XLR 5p IN/OUT connectors
Power connection: screw terminal block, Neutrik powerCON TRUE1 IN/OUT connectors
Low Voltage DC connector: DC 48V through screw terminal block

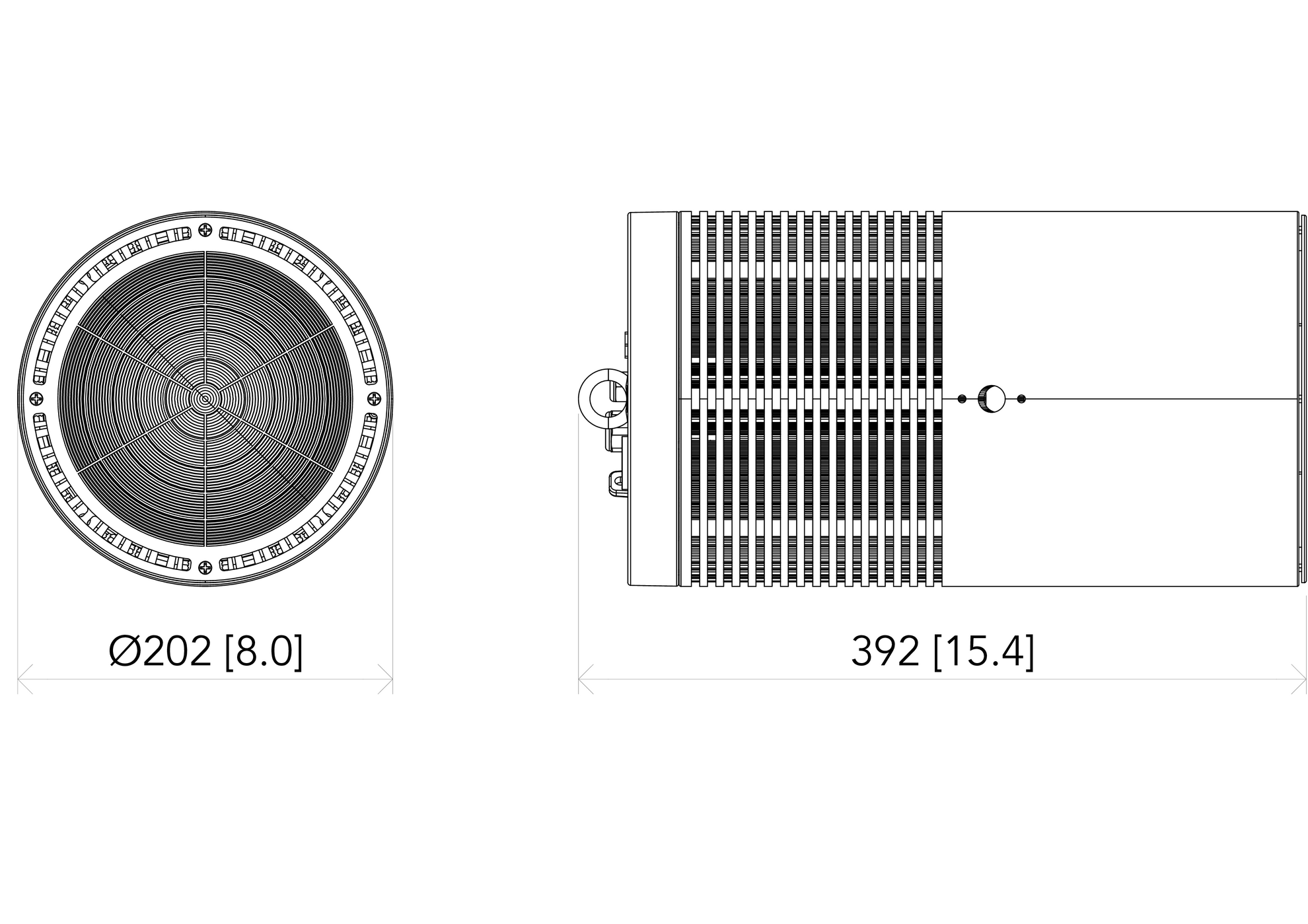

Dimensions (WxHxD): 202x392x202mm / 7.95''x15.43''x7.95''
Weight: 7,3kg / 16.09lbs

CERTIFICATIONS / APPROVALS
Certifications / Approvals: CE, RCM, cTUVus

BOX CONTENT
1 x ECLPENDANTVW
1 x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector)
1 x User Manual
NOTE: no hanging bracket ECLPENDHGBRK on board to the fixture

Supplier SKU

ECLPENDANTVWBK
