SunblastFLX IP65 modular and graphical LED Strobe

CRMX

SunblastFLX IP65 modular and graphical LED Strobe

Name: SunblastFLX IP65 modular and graphical LED Strobe
Brand: Prolights

530200550

IP65 modular and graphical LED Strobe with white string+RGB+WW panel, 1200W peak

Description Specification Brand information Downloads

The Sunblast FLX is a high-performance, IP65-rated LED fixture that combines both strobe and washlight capabilities for versatile applications. Its hybrid design includes a central linear white LED beam that replicates the traditional xenon-bulb filament of classic strobes, alongside RGB+Warm White LED plate that provide intense washlight with superior color rendering, powered by Spektra OS.

With advanced pixel mapping, the Sunblast FLX offers precise control over 28 individual pixels - 12 for the white LED strip and 16 for the RGB+WW panel - enabling dynamic effects and creative flexibility. With a peak power output of 1200W when strobing and 400W for continuous floodlighting, it's engineered to deliver exceptional brightness.

Designed for easy, tool-free assembly, the Sunblast FLX features a modular rigging system that supports both vertical and horizontal configurations in clusters. Its rugged IP65 rating ensures dependable performance in outdoor environments, making it an ideal solution for festivals, events, and temporary architectural lighting. Equipped with both wired (sACN and Art-Net) and wireless (CRMX) control options, it integrates seamlessly into any lighting system.

Technical Specifications

LIGHT SOURCE

Source: (Plate 16 px) 1.024 x 1,2W RGB+WW LEDs + (Beam 12 px) 60 x 12W White LEDs
Luminous flux: Full Power Strobe - Combined: 108'526 lm @full
Luminous flux: Full Power Wash - Plate: 32'771 lm @full
Luminous flux: Full Power Wash - Beam: 45'170 lm @full
Luminous flux: Full Power Wash - Combined: 40'507 lm @full
Lux: Full Power Strobe - Combined: 1'710lx @5 m full
Lux: Full Power Wash - Plate: 467lx @5 m full
Lux: Full Power Wash - Beam: 729lx @5 m full
Lux: Full Power Wash - Combined: 621lx @5 m full
Source life expectancy: > 20.000 h

OPTICS

Beam angle: (Plate) RGB+WW: 112° - (Beam) White LEDs: 49° x 130°
Field angle: (Plate) RGB+WW: 152° - (Beam) White LEDs: 79° x 155°

COLOUR SYSTEM

Colour control: CCT, RGBW, HSI, Colour Macros
Colour mixing: RGB+WW + White LEDs
CCT:
CCT control range from 2.800K to 10.000K, + / - green correction, tungsten emulation
White presets: 2.800-10.000K
Macros: Gels library on-board

DYNAMIC EFFECTS

Control Resolution: 16-bit dimmer, colours
Pixel patterns: pre-programmed dynamic and static patterns
FX generator: adjustable foreground/background colour, index, speed, direction
Static mode: selection of static dimmer, colors and color temperature
Manual mode: manual adjustment of colour
Auto mode: built-in programs with execution speed adjustment

BODY

Bracket system: Several brackets available for simply array mounting - see available accessories
Hardware on-board: fast ancor points on the front for accessory mounting and on board mechanics for modular assembly of multiple fixtures
Body: Weatherproof IP65 construction with die-cast magnesium alloy
Body colour: black

CONTROL

Protocols: DMX512, RDM, ArtNet, sACN, CRMX
DMX channels: 7 / 13 / 21 / 36 / 32 / 42 / 47 / 60 channel
Pixel control: 16 px RGB+WW LEDs + 12 px White LEDs individually select and control sections
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
Other: Ethernet pass through in case of failure

ELECTRONICS

Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -20° C / +45° C (-4° F / +113° F)
LED Control: flicker free operation
Selectable PWM: 600 ~ 25.000 Hz

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: strobe: 1.200 W (peak) - wash: 400W
Standby power:7,6W

Output (at 230V): 2 units on a single power line
Power factor: > 0,94

PHYSICAL

IP rating: 65 for temporary outdoor application, not for fixed installations
Cooling: active, silent operation
Suspension and fixing: hanging bracket for floor positioning with \"Quick-Lock\" system
Signal connection: IP65
Seetronic XLR 5p IN/OUT connectors
Data connection: Seetronic Ethernet IP in/out connectors
Power connection: Seetronic powerCON waterproof IN/OUT connectors

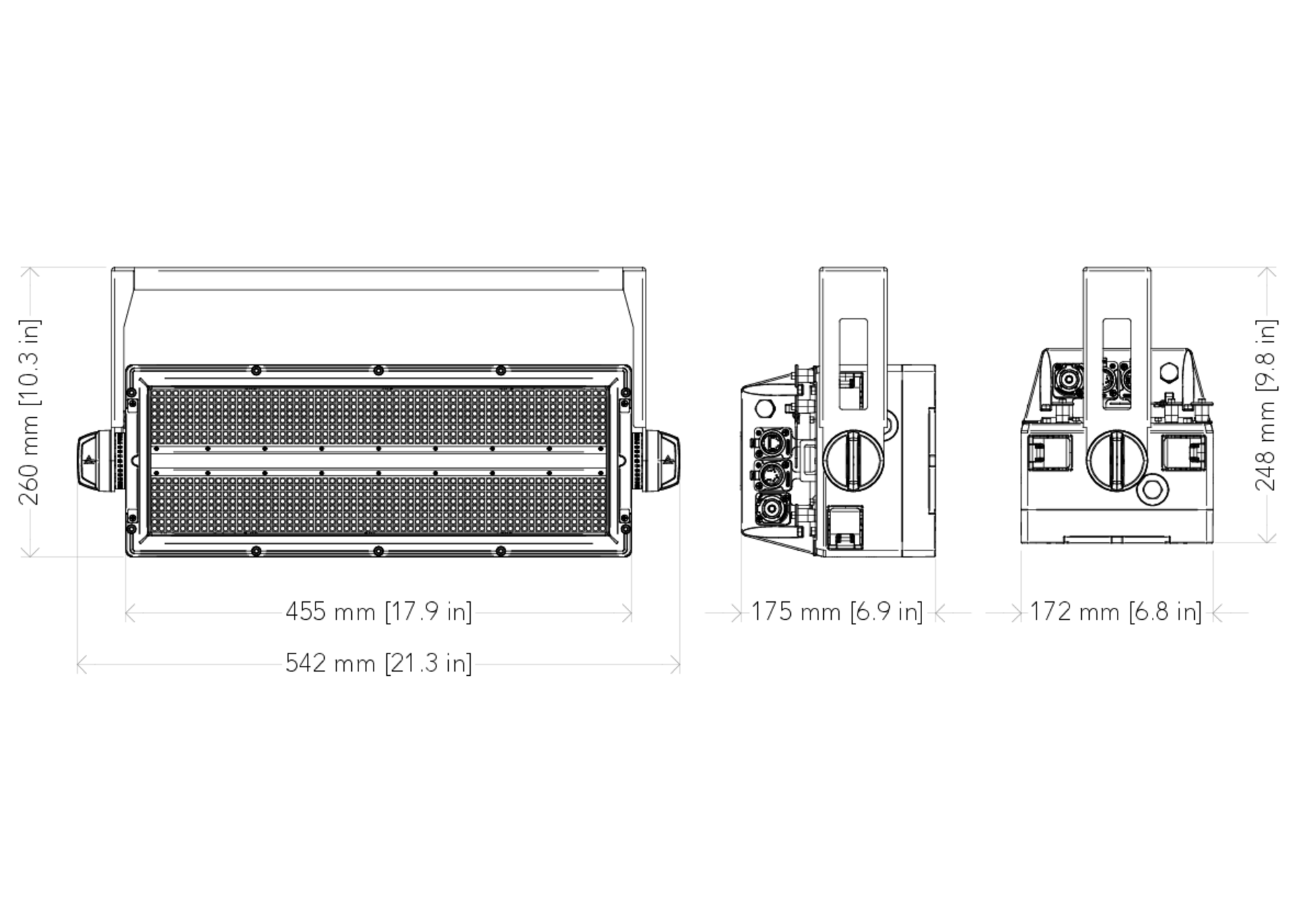

Dimensions (WxHxD): 460 x 170 x 170mm
Weight: 11,6kg

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, RCM, FCC, cTUVus
