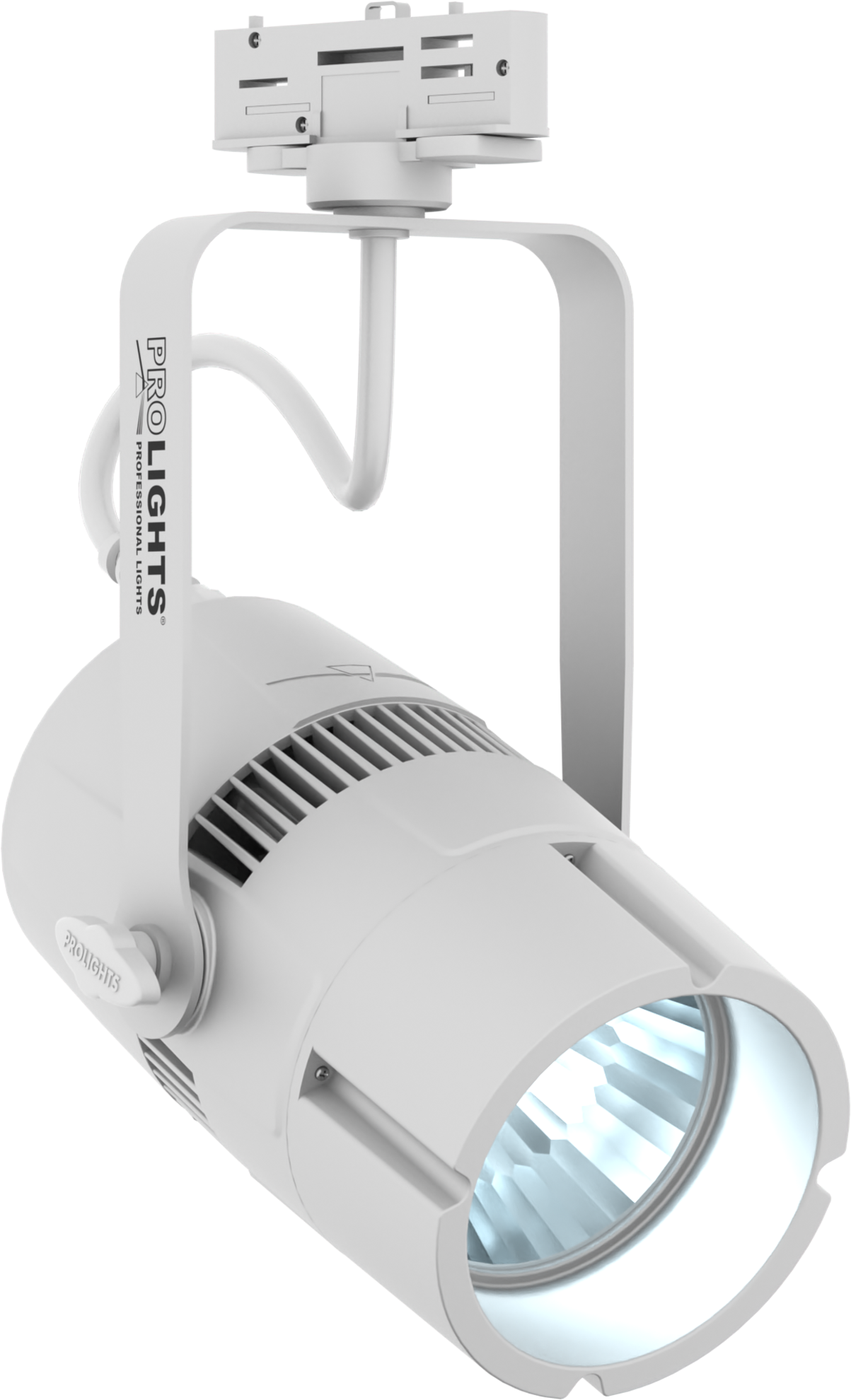

PIN SPOT TRDY - Track Pinspot , White

Name: PIN SPOT TRDY - Track Pinspot , White
Brand: Prolights

1x13W LED projector, track, dimmer knob, beam 6°, 20W, white, 1.8Kg

Color temperature (K)

Please select variant!

Description Specification Brand information Downloads

Pin SpotTR LED is a true LED replacement for a traditional Pin Spot. Featuring both the beam and output characteristics of the original, the Pin SpotTR is able to be used in all the same applications.

Technical Specifications

LIGHT SOURCE

Source: 13W high-power white LED
CCT: (TU) 2.800 K - (DY) 6.100K
Luminous flux: (TU) 775 lm - (DY) 978lm
Lux: (TU) 5'030 lux - (DY) 6'320lx @3 m
CRI: (TU) 90 - (DY) 80
Source life expectancy: > 30.000 h

OPTICS

Beam angle: 6°
Field angle: 12°

DYNAMIC EFFECTS

Static mode: selection of static dimmer
Manual mode: manual adjustment of dimmer and strobe
Auto mode: built-in programs with execution speed adjustment

BODY

Body: sturdy die-cast aluminium body
Body colour: white

ELECTRONICS

Dimmer: linear 0 ~ 100%, manual knob dimmer
Operating temperature: -10° ~ +45°

ELECTRICAL

Mains power supply: 100-240V - 50/60Hz
Max power consumption: 18,9W
Max power consumption (at 120V): 19,6W

PHYSICAL

IP rating: 30
Cooling: passive cooling and fan-free
Suspension and fixing: track-adapter included for suspension and fixing
Power connection: track adaptor (EUTRAC, STAFF, GLOBAL, IVELA, Eurostandard Plus compatible)
Dimensions (WxHxD): 209x167x238mm
Weight: 1,8kg

Supplier SKU

PINSPOTTRDY
