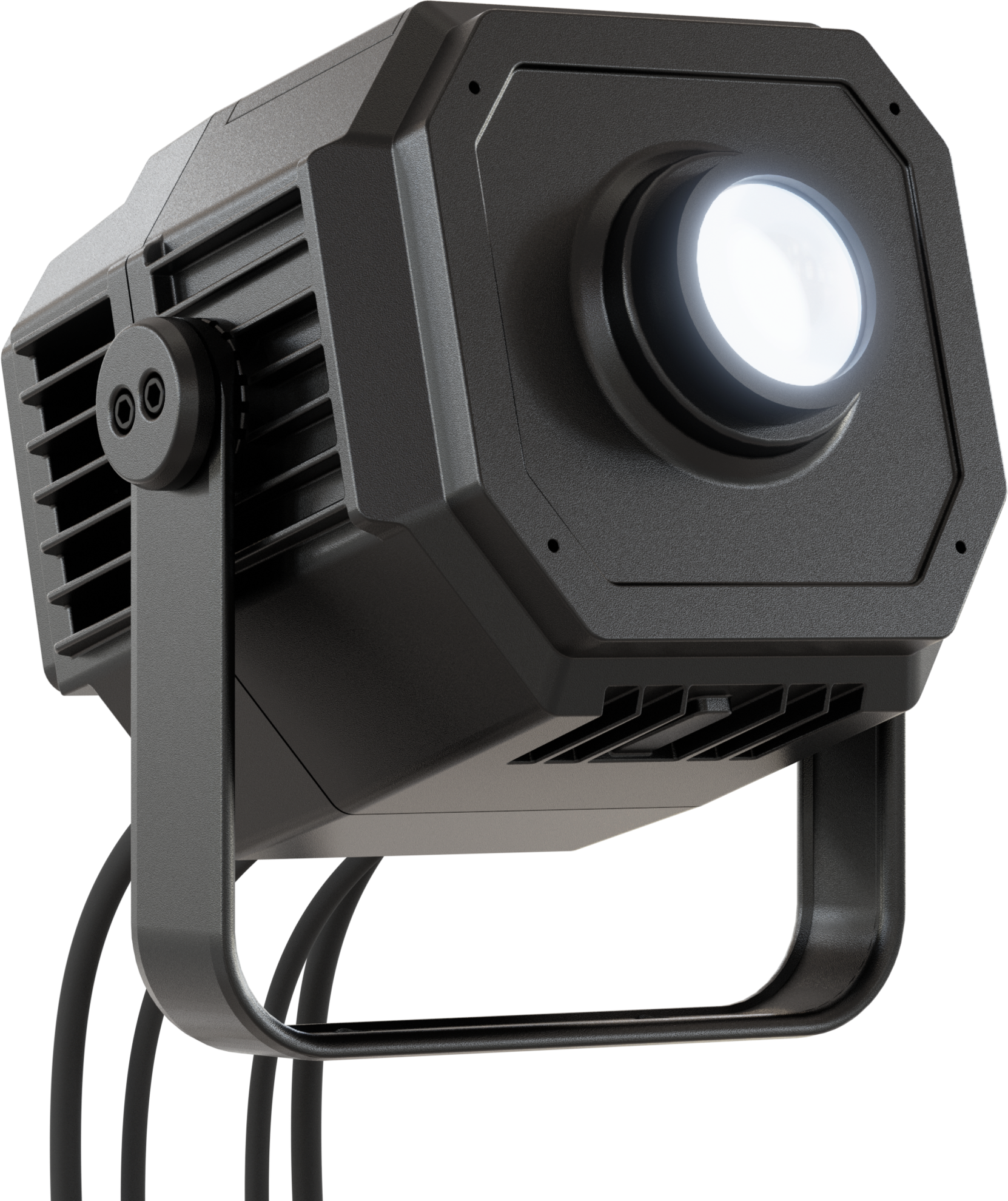

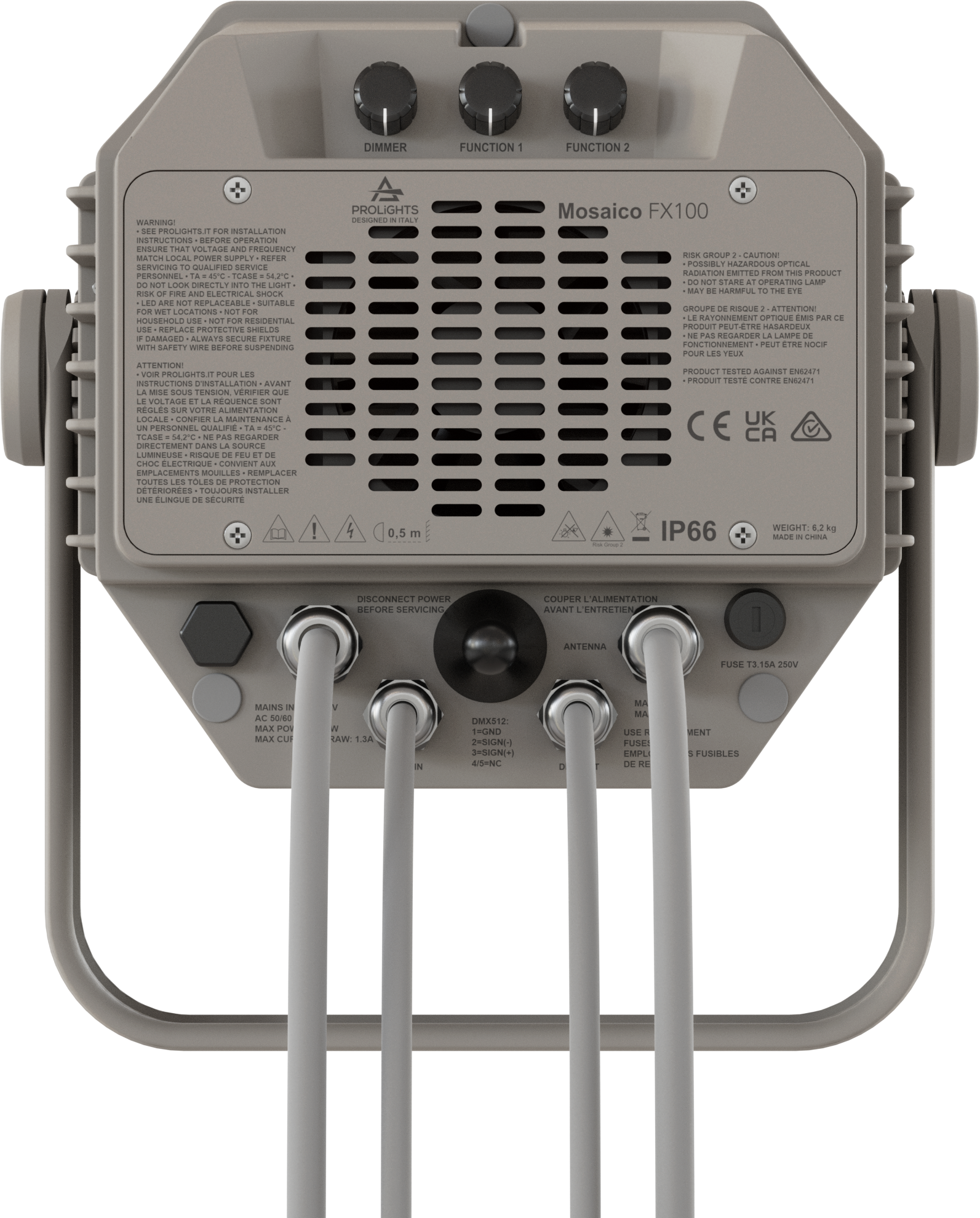

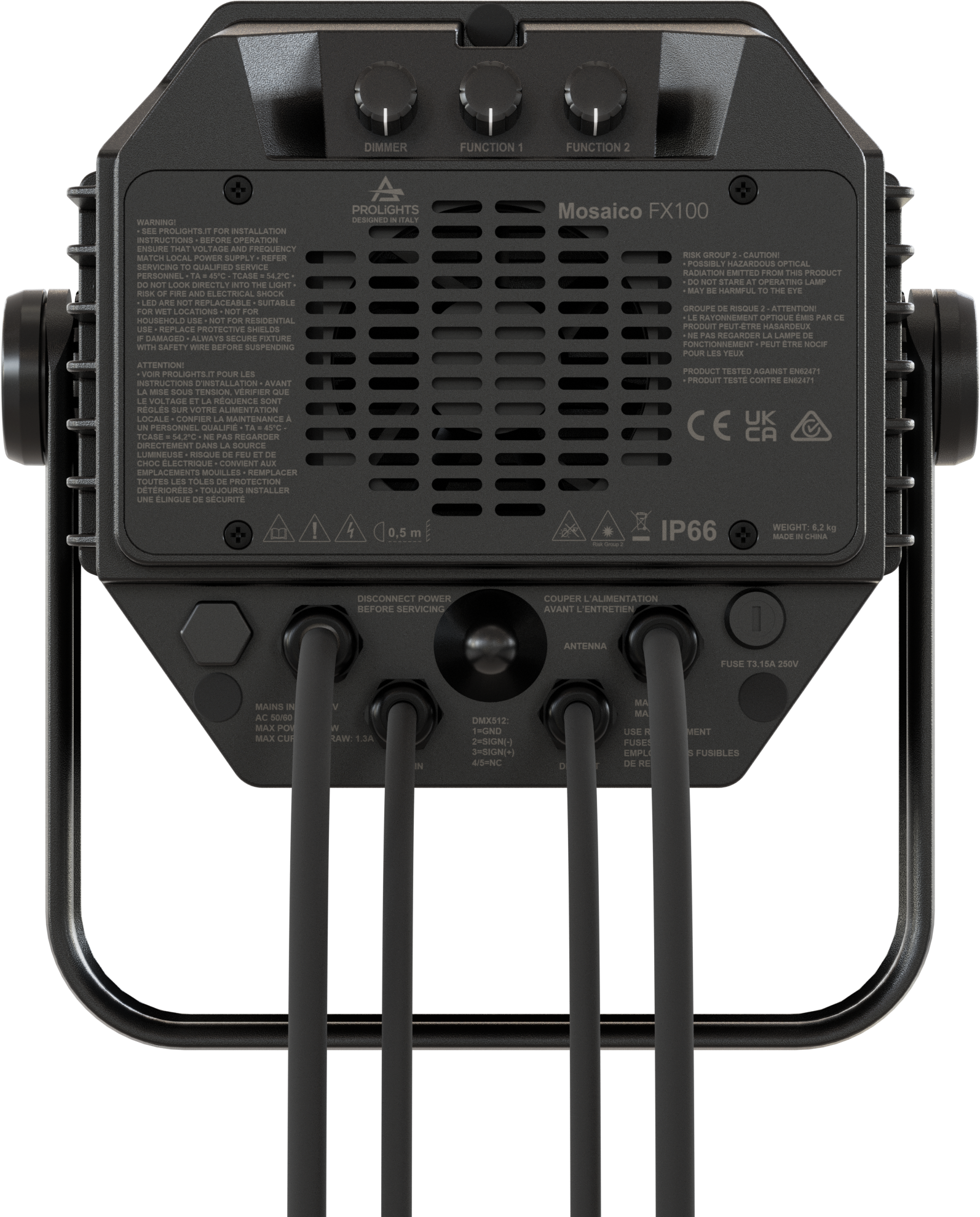

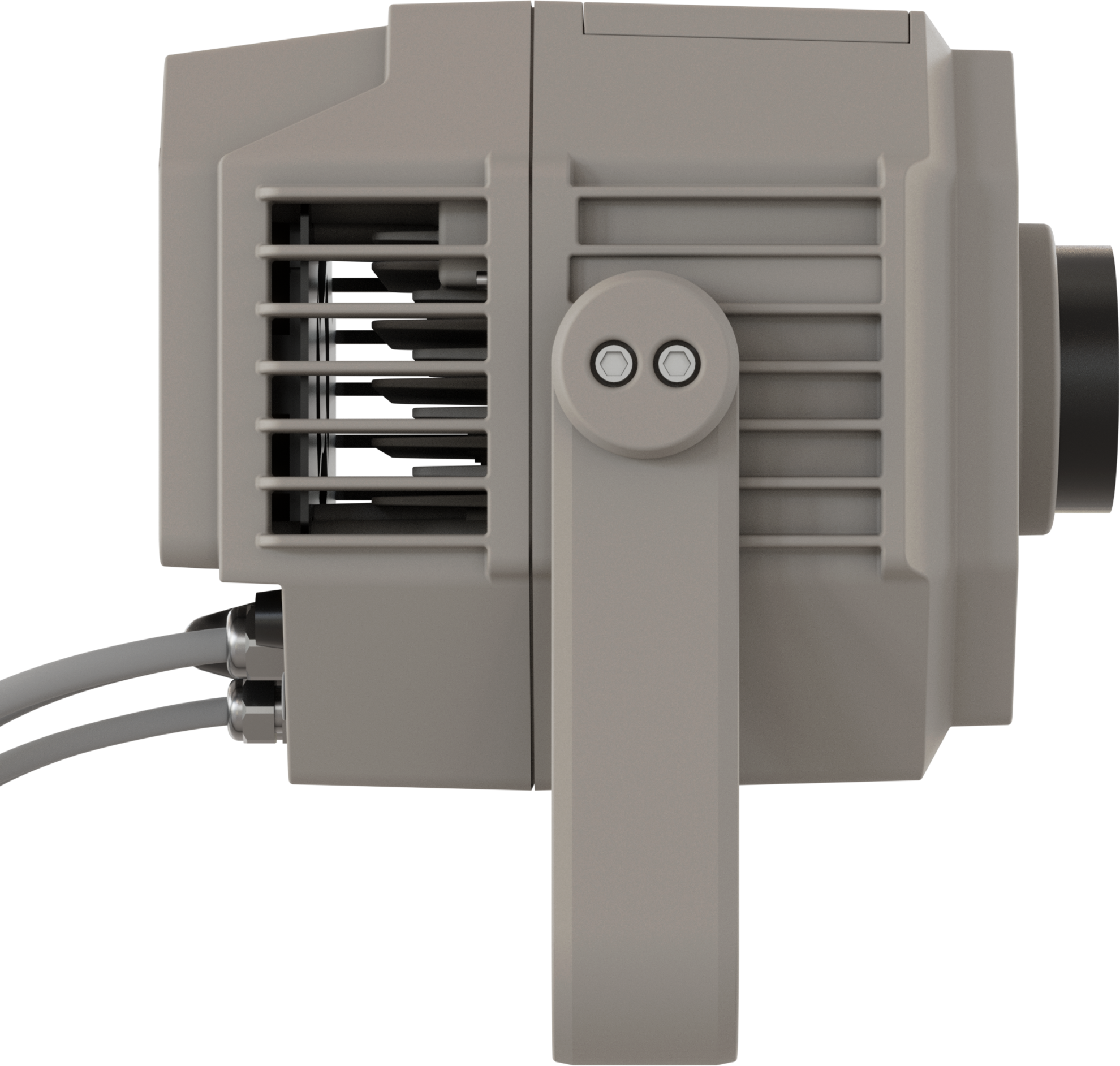

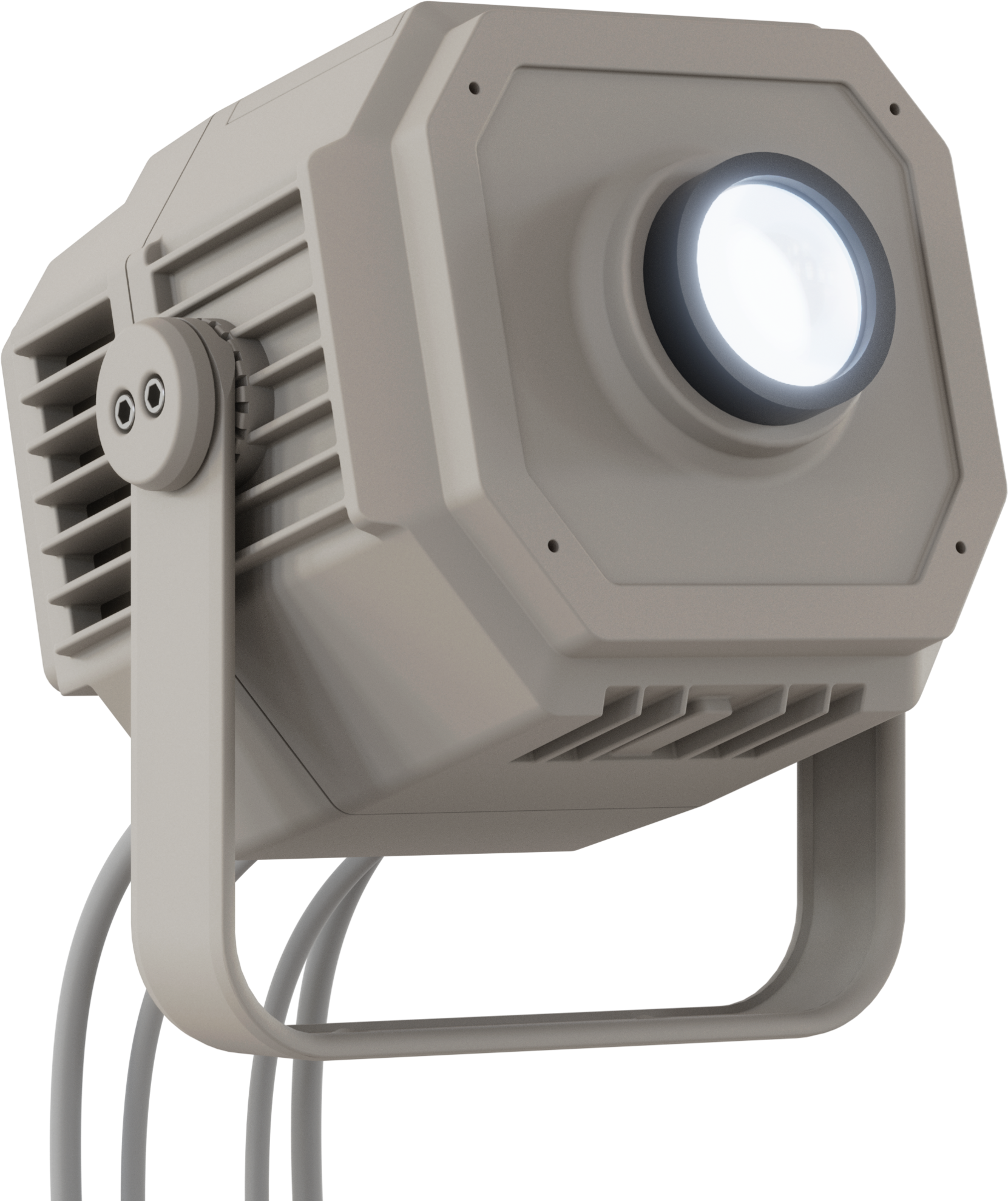

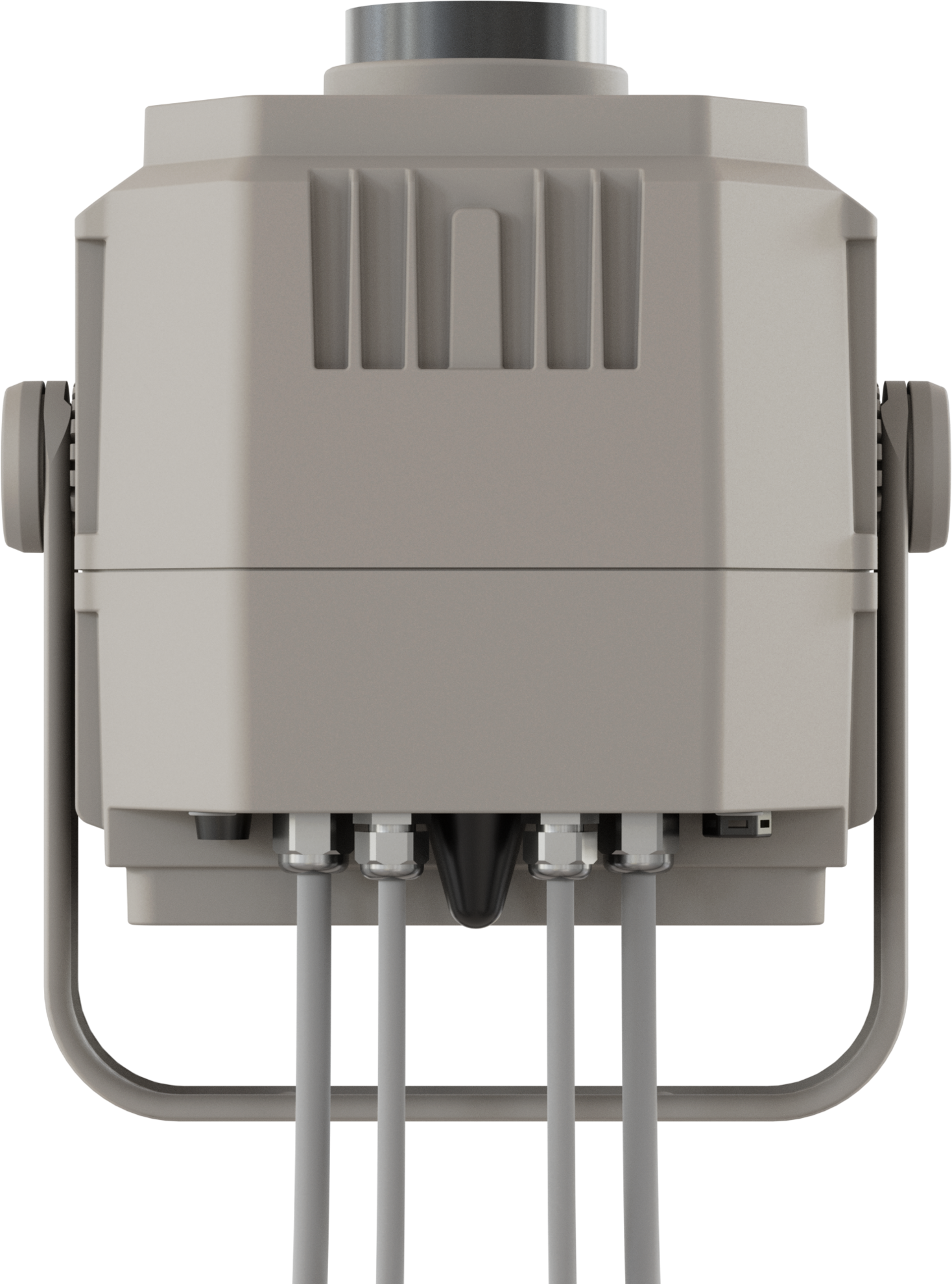

Mosaico FX100

Name: Mosaico FX100
Brand: Prolights

100W IP66 modular LED image projector with 2 effect wheel and 1 gobo slot, black or Gray

Housing Colors

Please select variant!

Description Specification Brand information Downloads

Mosaico FX100 is an 100W white source LED IP66 image projector, engineered to be the modular platform to add building blocks to design your creative architectural lighting landscape.

Mosaico FX100 is supplied with two controllable effect wheels on board made in structured glass material to animate your projection, with linear motion control for creating reflected water, blowing fire or northern lights effects. The kit contains also one indeaxable gobo holder and a colour holder both with magnetic attachment.

Mosaico FX100 is compatible with a wide range of high definition optics, each optimized for the required application (animation or image projection): 15°, 30°, 50° and 70°.

This unit can be controlled via DMX, both wired and wireless and also easily operated locally through the simplified stand alone operations.

Please note that Mosaico FX100 do not ship with a lens or other images or colors. Choose from the available lenses when ordering to meet your design requirements.

Technical Specifications

LIGHT SOURCE

Source:100W

high-power white LED
CCT:8'000K
Luminous flux:

(15°) 3'174 lm; (30° - WT) 3'246 lm; (30° - GB) 3'029 lm; (50° - WT) 3'646 lm; (50° GB) 2'217 lm; (70°) 2'367lm@full
Lux:

(15°) 1'612 lx; (30° - WT) 954 lx; (30° - GB) 114 lx; (50° - WT) 345 lx; (50° GB) 179 lx; (70°) 176lx@5 m full
Source life expectancy: > 30.000 hrs (L70B10 @Ta 25° C / 77° F)

OPTICS

Optics:interchangeable - see available accessories
Focus: manual

COLOUR SYSTEM

Colour wheel: included 1 color holder accessory for 1 color (color not included)
Colour wheel: optional color wheel with 5 colors included on board (see available accessories) - included colors Light Orange, Light Green, Yellow, Aquamarine, Pink

DYNAMIC EFFECTS

Control Resolution:16-bit dimmer
Animation wheel:included 2 interchangeable wheels with indexing and CW and CCW rotation with variable speed (see available accessories)
Rotating gobos:included 1 gobo holder with manual adjustable index position system for 1 gobo (gobo not included - see available accessories)
Gobo size (BW): outer: 26,9 mm - image: 22 mm
Gobo size (Color):outer: 26,9 mm - image: 20,5 mm
Fixed gobos:optional gobo wheel for 5 gobos + open (gobos not included - see available accessories)
Static mode:selection of static dimmer and effects rotation mode

BODY

Body:weatherproof IP66 construction
Body colour:RAL 9006 or RAL 9004
Other:Inspectable cover window for effects and gobo replacement and maintenance

CONTROL

Protocols:DMX512, RDM, CRMX + WDMX, 3 push encoder
Stand Alone:3push encoder
DMX channels:8 channel
Wireless Control:included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display:user interface through DATAMASTER external coder (not included)
Firmware upgrade:yes, via USB - DMX interface (UPBOX2) not included
Master/Slave:for synchronised operation of more units linked in a chain

ELECTRONICS

Dimmer:linear 0 ~ 100%, electronic and manual knob dimmer
Dimmer curves:selectable dimming modes available
Strobe / shutter:1-30

Hz, electronic
Operating temperature:-20° C / +45° C (-4° F / +113° F)
LED Control:flicker free frequency with adjustable PWM
Selectable PWM:600 ~ 25.000 Hz

ELECTRICAL

Mains power supply:100-240V - 50/60Hz
Max power consumption:127W
Output (at 230V):25 units on a single power line
Power factor: >0.95

PHYSICAL

IP rating:66 for outdoor installations
Cooling: active, silent operation
Suspension and fixing: bracket for hanging and positioning
Adaptors:XLR and BARE END 16A adaptors included
Signal connection:35 cm moulded IP signal IN/OUT connectors
Power connection: 35 cm moulded IP power IN/OUT connectors

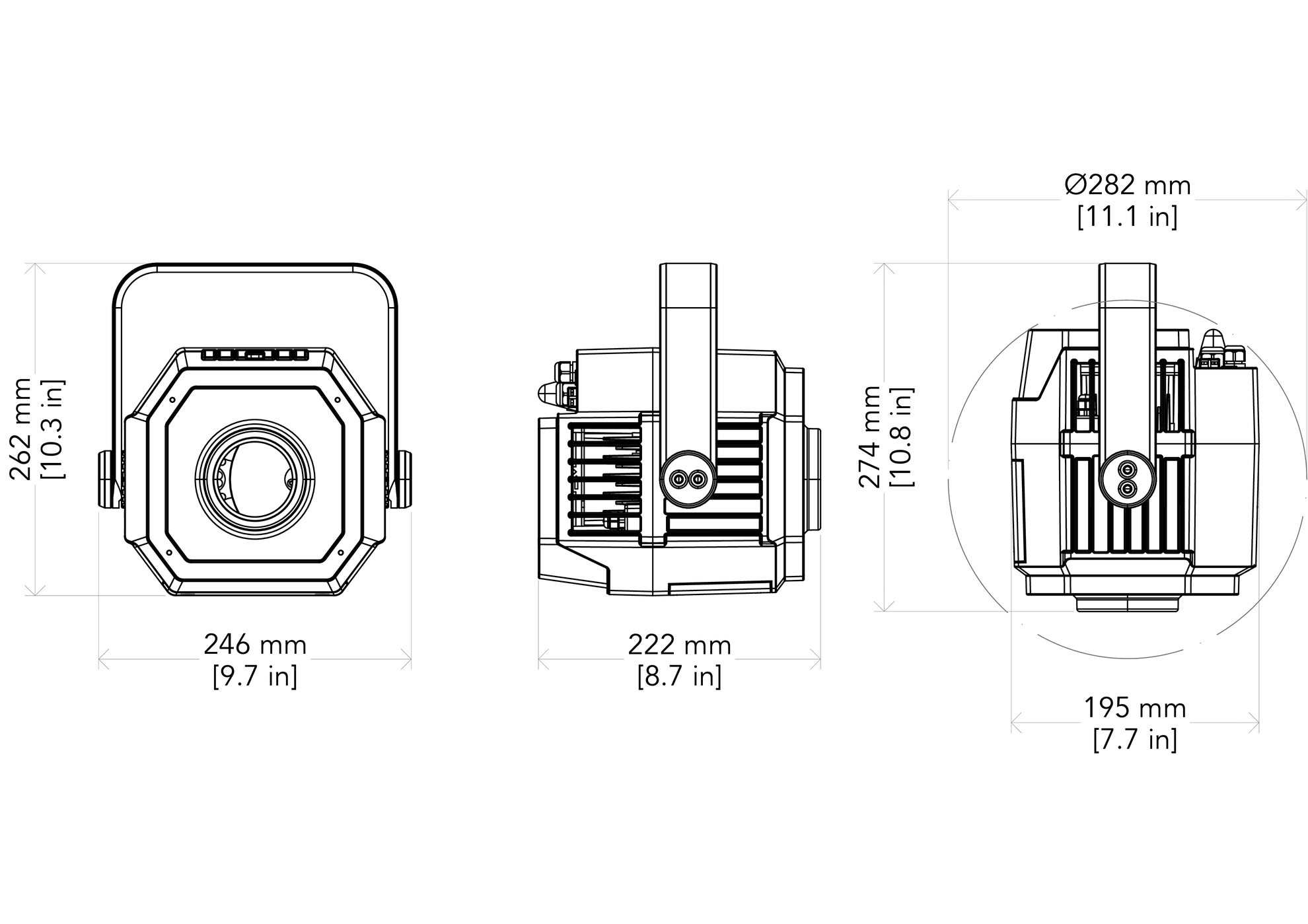

Dimensions (WxHxD): 224x261x221 mm
Weight:5,7 kg

CERTIFICATIONS / APPROVALS

Certifications / Approvals: CE, UKCA, RCM
