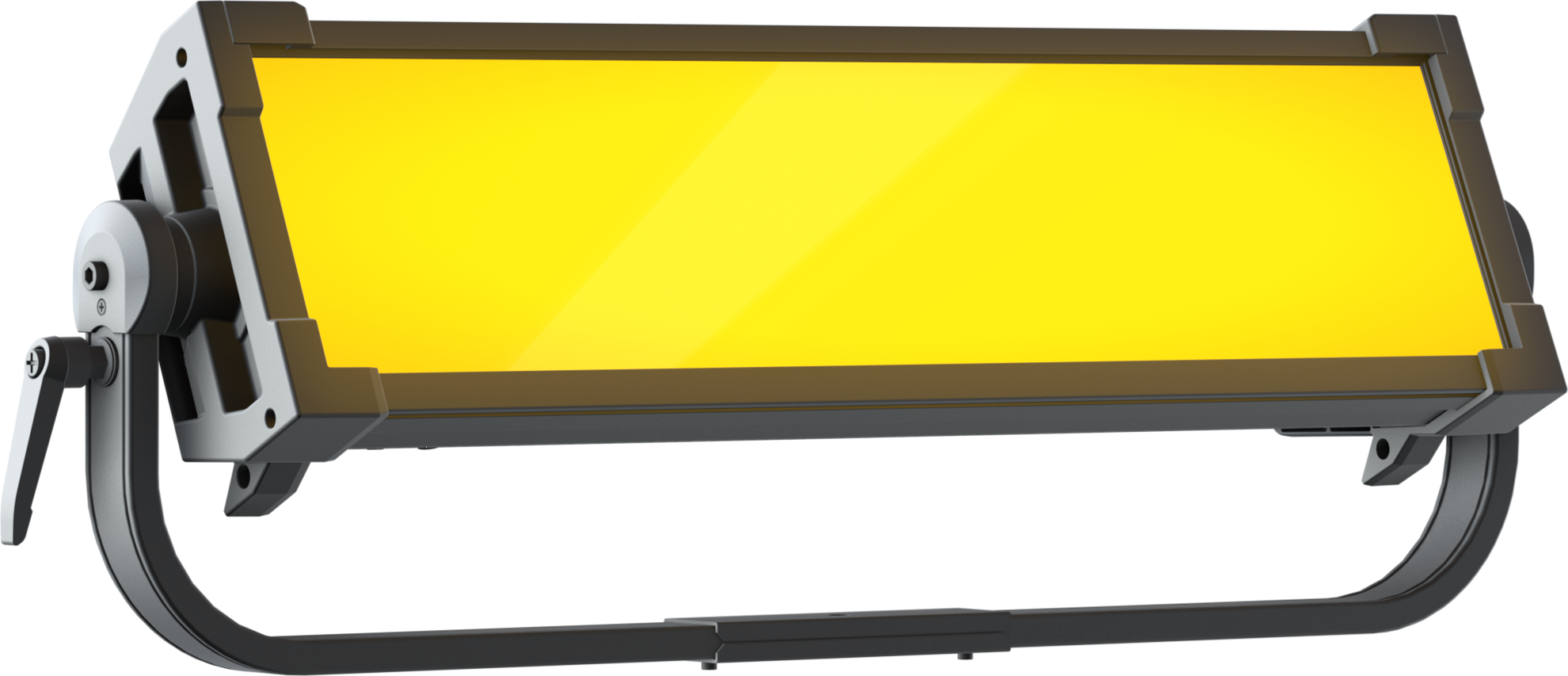

EclPanel TWC JR LED soft light 4x1
The EclPanel TWCJR4x1 is a compact LED linear soft light that provides a beautiful, wide source of soft and precise colours.
In addition to this, the EclPanel TWCJR4x1 comes with a full range of white presets, from daylight to tungsten tones, and produces a tremendous output whilst keeping high CRI, TLCI and TM-30 values.

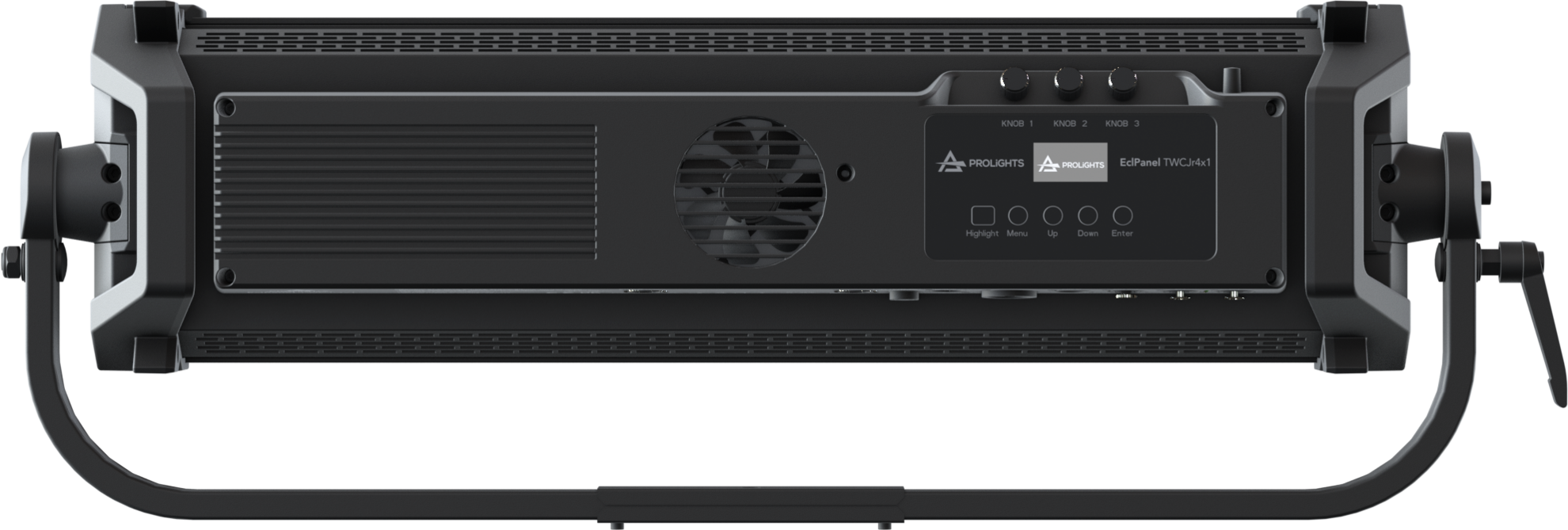

The EclPanel TWCJR4x1 has 3 precision rotatory knobs, with multiple stand-alone control modes: CCT with +/- green shift, CCT presets, HSI for total control of hue, saturation and intensity, RAW RGBW mode, XY and FX mode, allowing to scroll through the built-in cinema effects engine.
The 2 sections are controlled individually or simultaneously, allowing to play on-board customizable, cinematic effects through its built-in engine or from a console.
The EclPanel TWCJR4x1 has several colour control modes: RGBW, RGB, CMY, HSI, XY, RAW Direct, CCT Linear and CCT Presets with +/- green shift, source emulation and industry-standard colour gels.
Despite its lightweight, it has an on-board driver, a built-in power supply, Wireless DMX (CRMX+W-DMX), network connectivity (Art-Net, sACN, Kling-Net) and low voltage inputs (24-36V and 48VDC)
- Source: 230W RGB + Warm White LED
- Luminous flux: 16'260lm @3.200 K with MD filter
- Lux: 257lx @5 m full
- CRI: 93 @3.200 K; 94 @5.600 K
- R9: 96 @3.200 K; 94 @5.600 K
- TLCI: 92 @5.600 K
- TM30 Rf: 92 @3.200 K; 90 @5.600 K
- TM30 Rg: 104 @3.200 K; 104 @5.600 K
- Source life expectancy: > 50.000 h
- Beam angle: 102°
- Field angle: 154°
- Lens type: medium density diffusion panel (interchangeable)
- Additional optics: see available accessories
- Colour control: XY, CCT, RGBW, Gel, HSI, Source Emulation, Color Macros, CTO on colors
- Colour mixing: RGB + Warm White
- CCT: CCT control range from 2.200K to 15.000K, + / - green correction, tungsten emulation
- White presets: 2.800 K - 10.000K with 28 K resolution
- Colour wheel: virtual colour wheel with macros
- Macros: Gels library on-board
- Control Resolution: 16-bit dimmer, colours
- Pixel patterns: pre-programmed pixel macros and cinema lighting effects patterns
- Special features: linear crossfade channel from any white to any colour; virtual CTO on colours
- Body: sturdy die-cast aluminium body
- Body colour: black
- Protocols: DMX512, RDM, Art-Net, sACN, W-DMX
- Stand Alone: selectable mode through 3 rotatory knobs
- Pixel control: 2 linear section control
- Wireless Control: integrated, CRMX + WDMX TRX
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: 4 selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Operating temperature: -10° ~ +45°
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 600 ~ 40.000 Hz
- Mains power supply: 100-240V - 50/60Hz
- Low Voltage DC mains: 48Vdc and 24-36V
- Max power consumption: 240W
- Power factor: >0,93
- IP rating: 20
- Cooling: active, silent operation

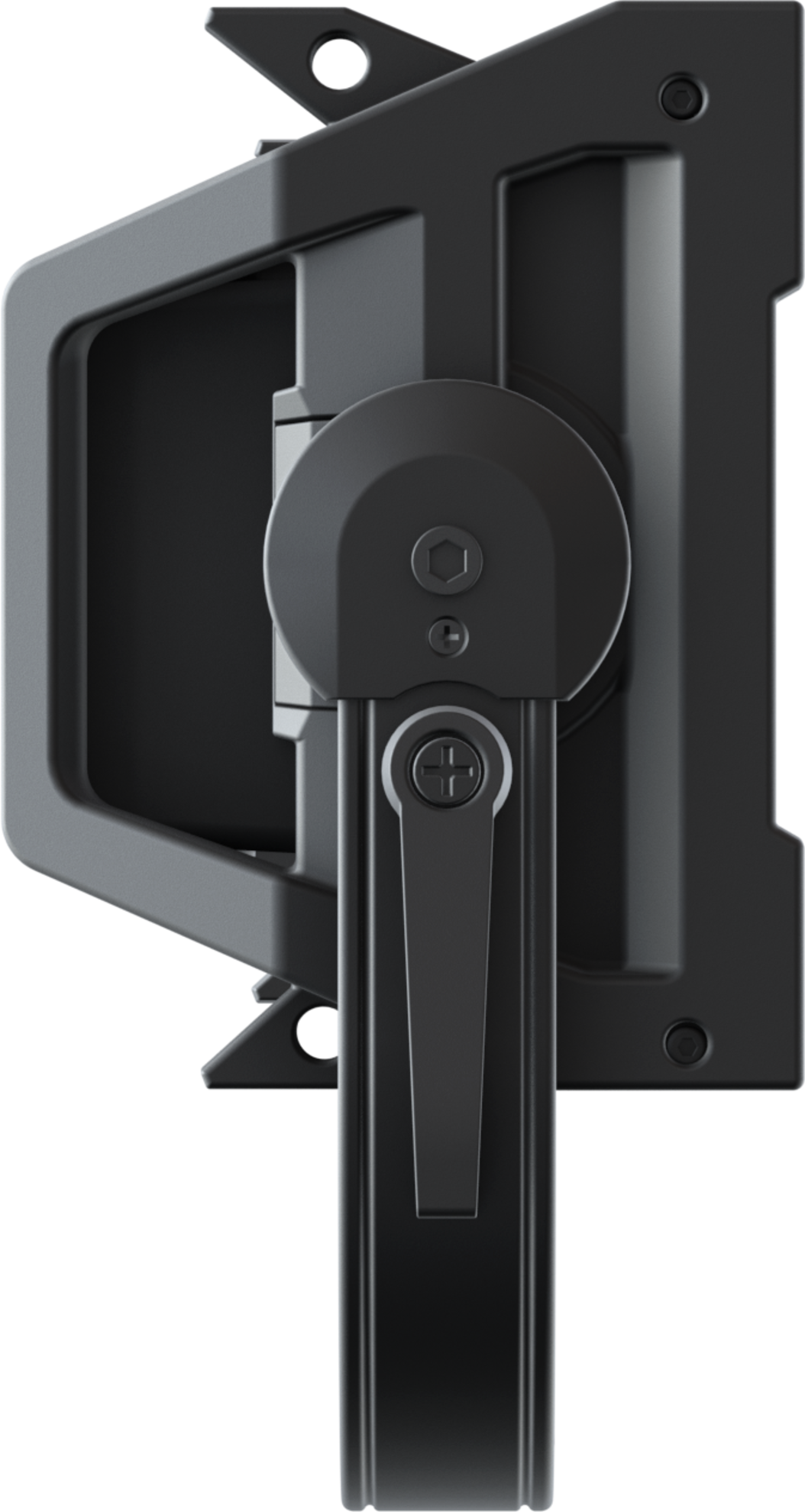

- Suspension and fixing: bracket for hanging and positioning

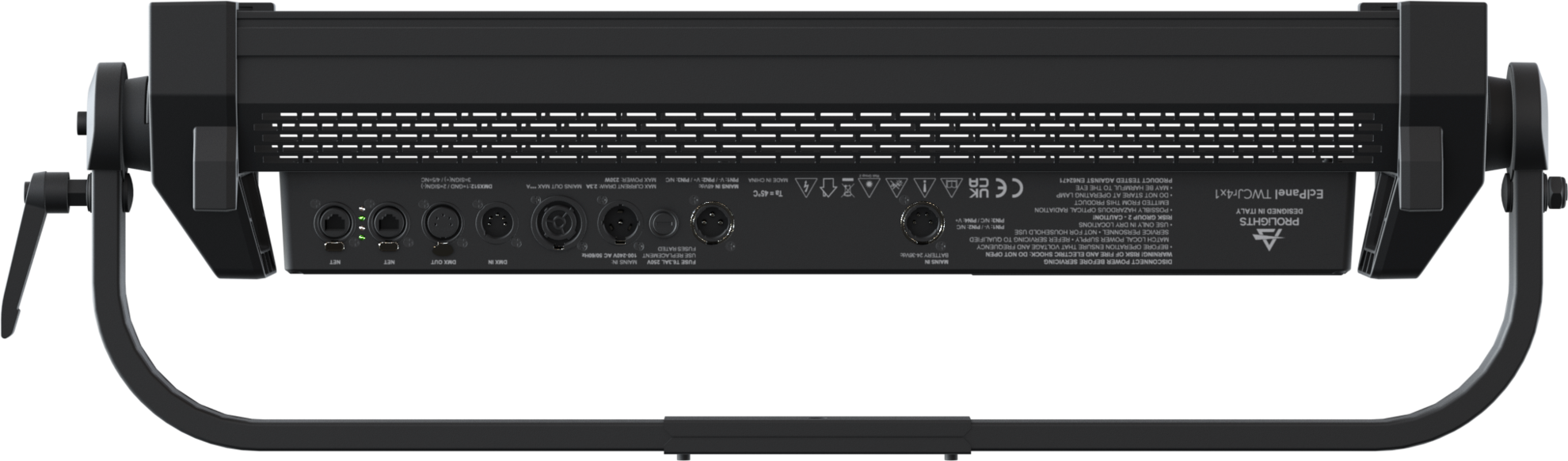

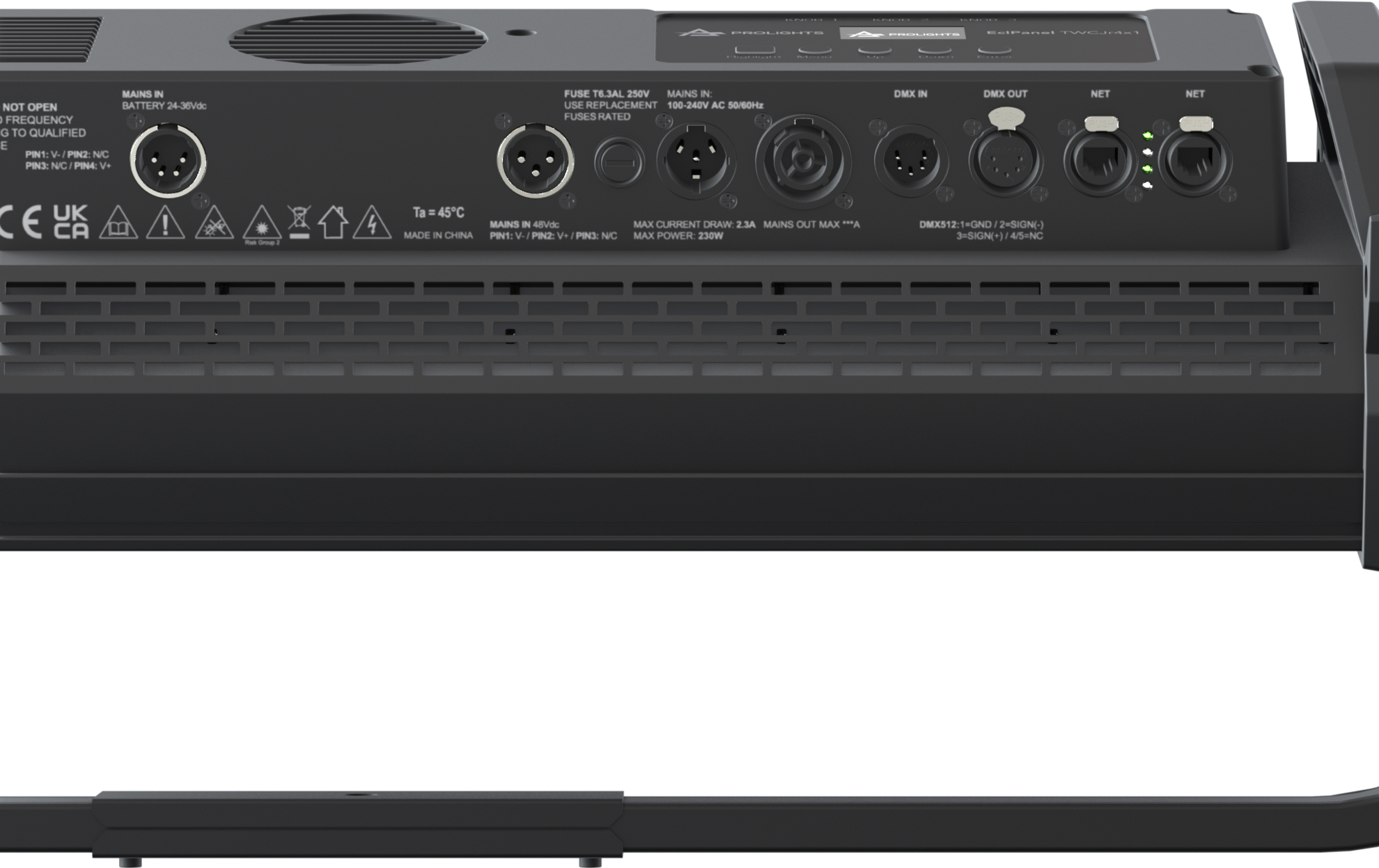

- Signal connection: Amphenol XLR 5p IN/OUT connectors
- Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
- Low Voltage DC connector: XLR 3p for 48V and XLR 4p for 24V-36V
- Dimensions (WxHxD): 819x276x144mm
- Dimensions with PO system (WxHxD): 836x396x144mm
- Weight: 10kg
- Weight with PO system: 12.3kg
- Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
