ECL EXPO FLOOD 150 FC BK

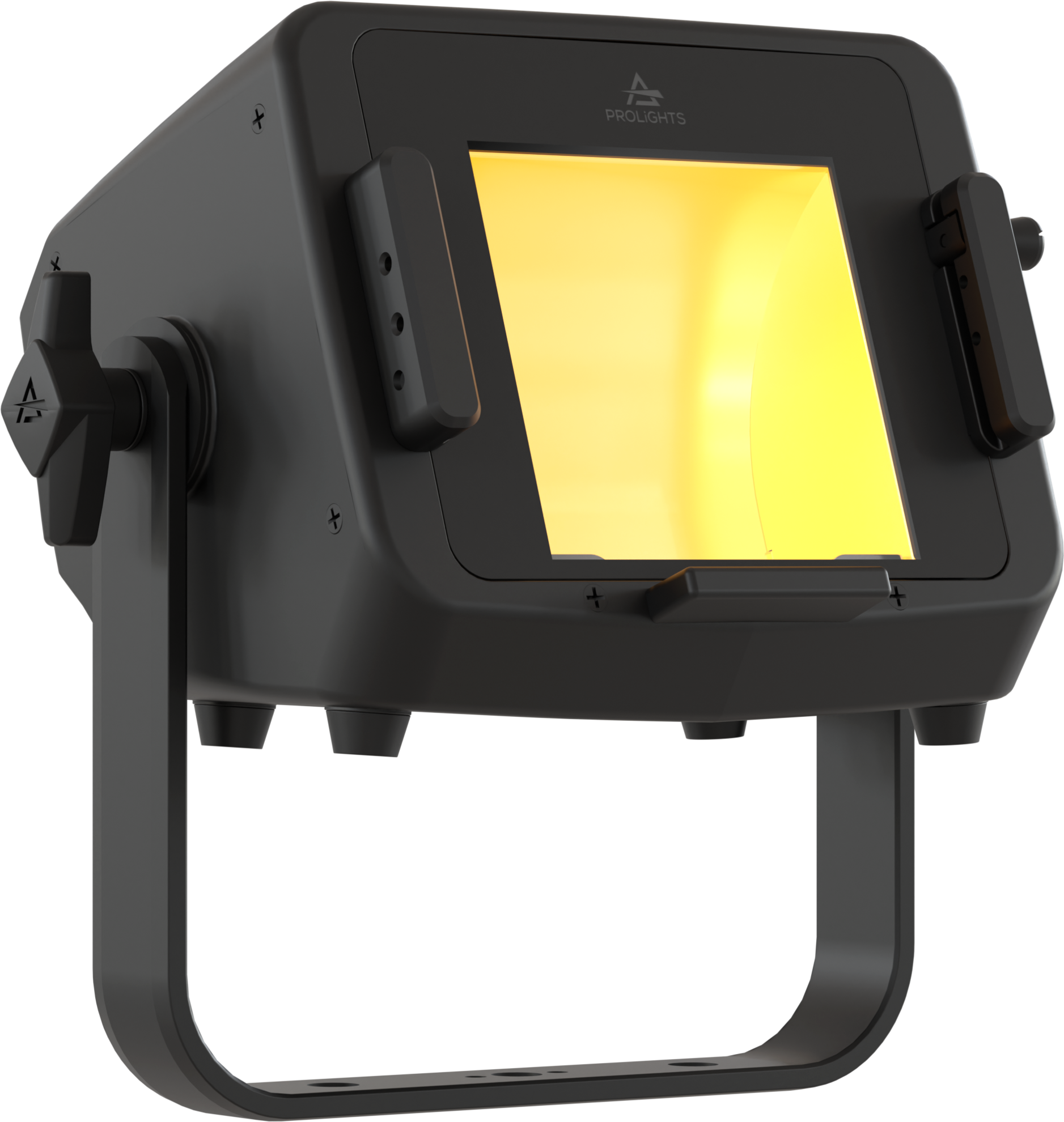

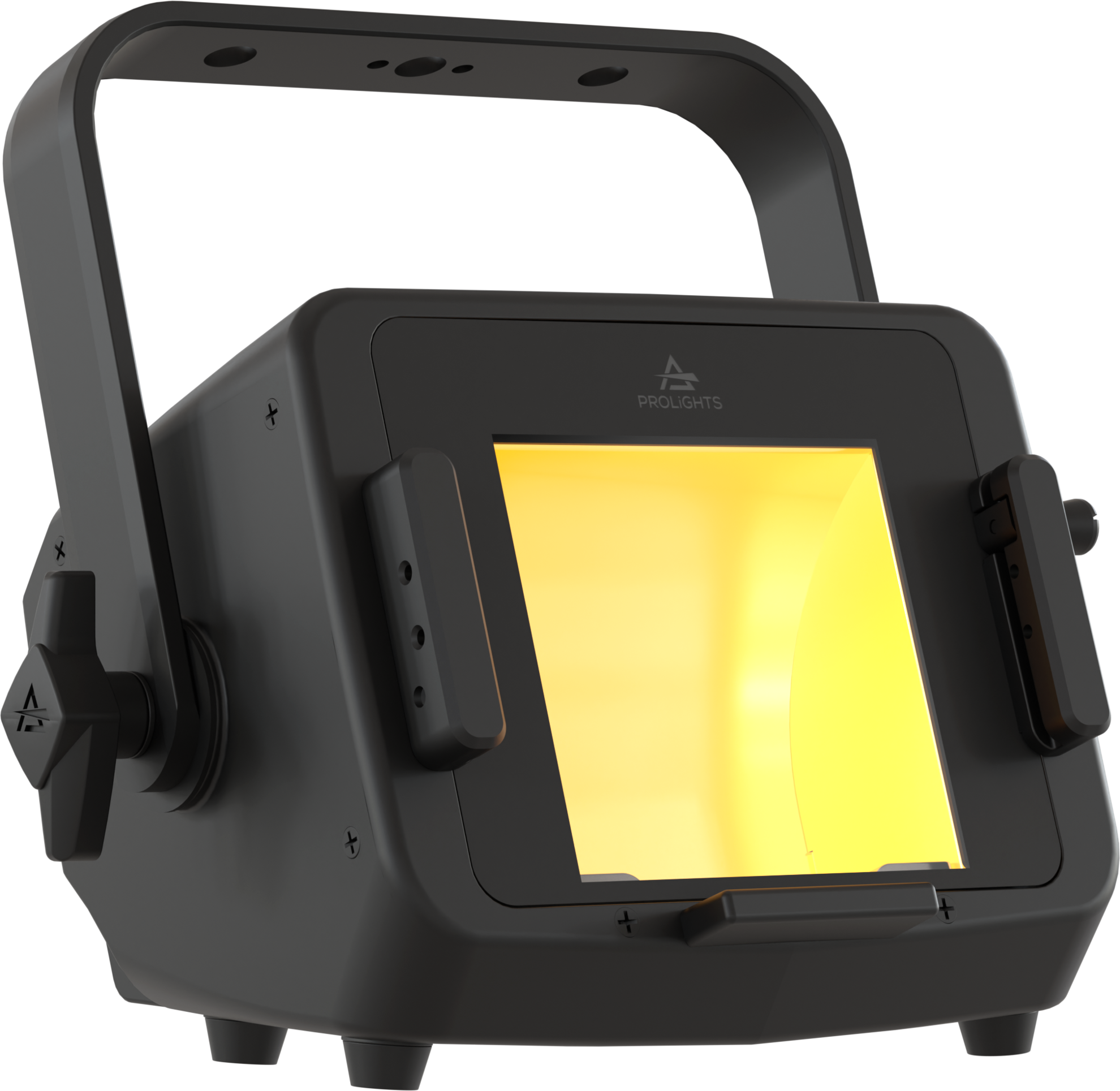

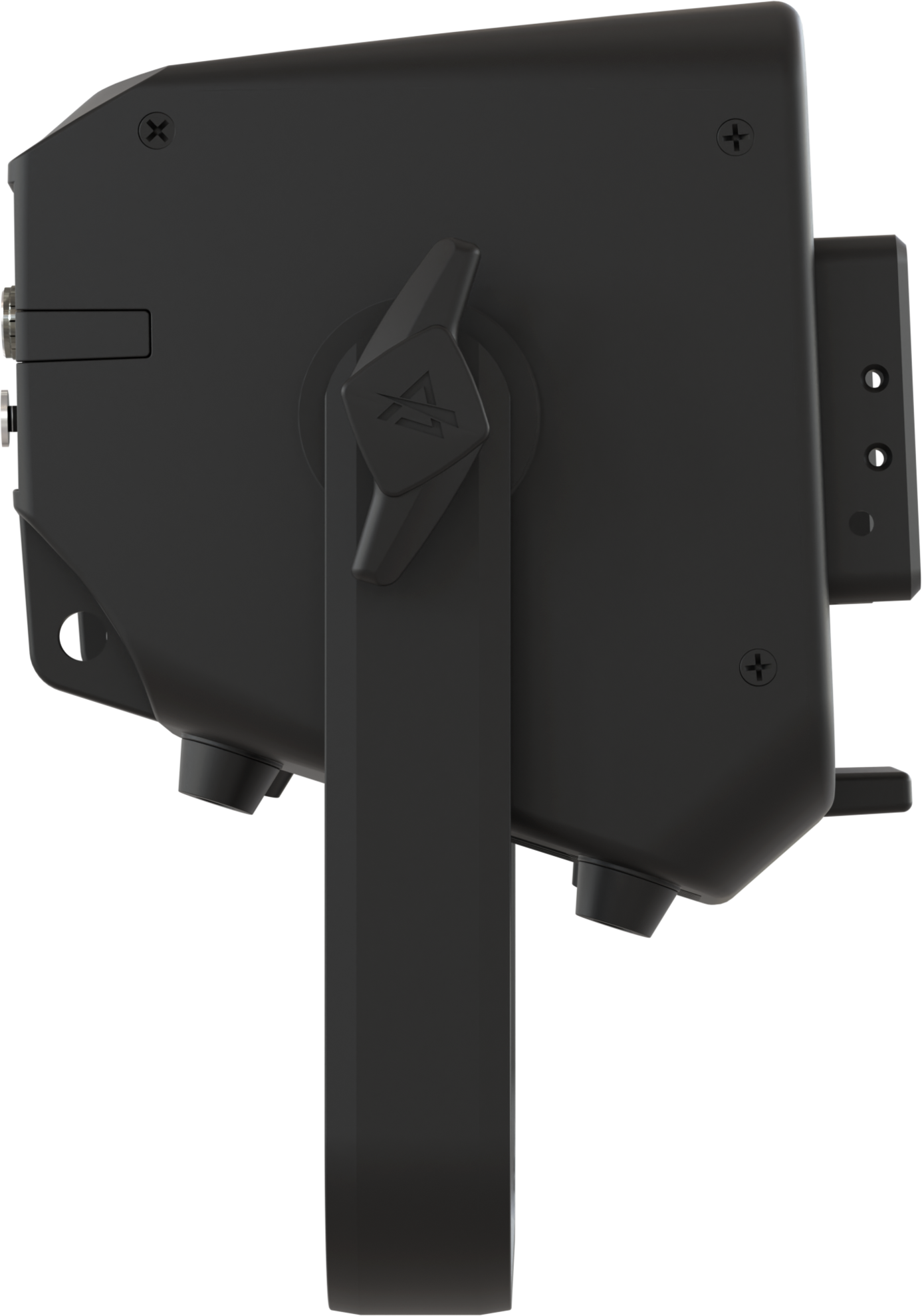

The EclExpo Flood150 is a compact, bright, and versatile floodlight that is designed to be a substitute for traditional CDM, HMI, and tungsten small floods in tradeshows, theaters, or as a work light. Just like its classic predecessors, but with a custom LED source, this unit features a linear light source combined with a reflector, which ensures a wide coverage of 100° (Horizontal) x 60° (Vertical) of indirect light emission.
The EclExpo Flood150 is available in two source variants:
- FC, which utilizes RGB+WarmWhite calibrated LED with high Color Rendering.
- VW, which uses a bi-color Vari White LED source with a CCT range of 2,700K-6,500K.
This unit is incredibly user-friendly, offering immediate stand-alone access through the knobs or through wired DMX/RDM or Wireless CRM (optional). Timeless Elegance meets Green Innovation: The EclExpo Flood150 - Where Classic Beauty Embraces Modern Technology
-
Source: 150W RGB + Warm White LED
-
Luminous flux: 5'342 lm @full
-
Lux: 65lx @5 m full
-
CRI: preliminary 92,8 @5'600K
-
R9: preliminary 94,7 @5'600K
-
TLCI: preliminary 92 @5'600K
-
TM30 Rf: preliminary 91,3 @5'600K
-
TM30 Rg: preliminary 106 @5'600K
-
Source life expectancy: > 20.000 h
-
Optics: asymmetrical beam reflector in pure aluminium 99,6%
-
Beam angle: (H) 100° x (V) 60°
-
Additional optics: 5° smooth filter on-board
-
Colour mixing: RGB + Warm White
-
CCT: CCT control, + / - green correction, tungsten emulation
-
White presets:2.800 K - 10.000K
-
Colour wheel: built-in white presets
-
Control Resolution:16-bit dimmer
-
Static mode: selection of static dimmer, colors and color temperature
-
Manual mode: manual adjustment of intensity, CT, colour correction from knob
-
Auto mode: built-in programs with execution speed adjustment
-
Body: sturdy die-cast magnesium body
-
Body colour: RAL 9004
-
Other: see available accessories
-
Protocols: DMX512, RDM, CRMX
-

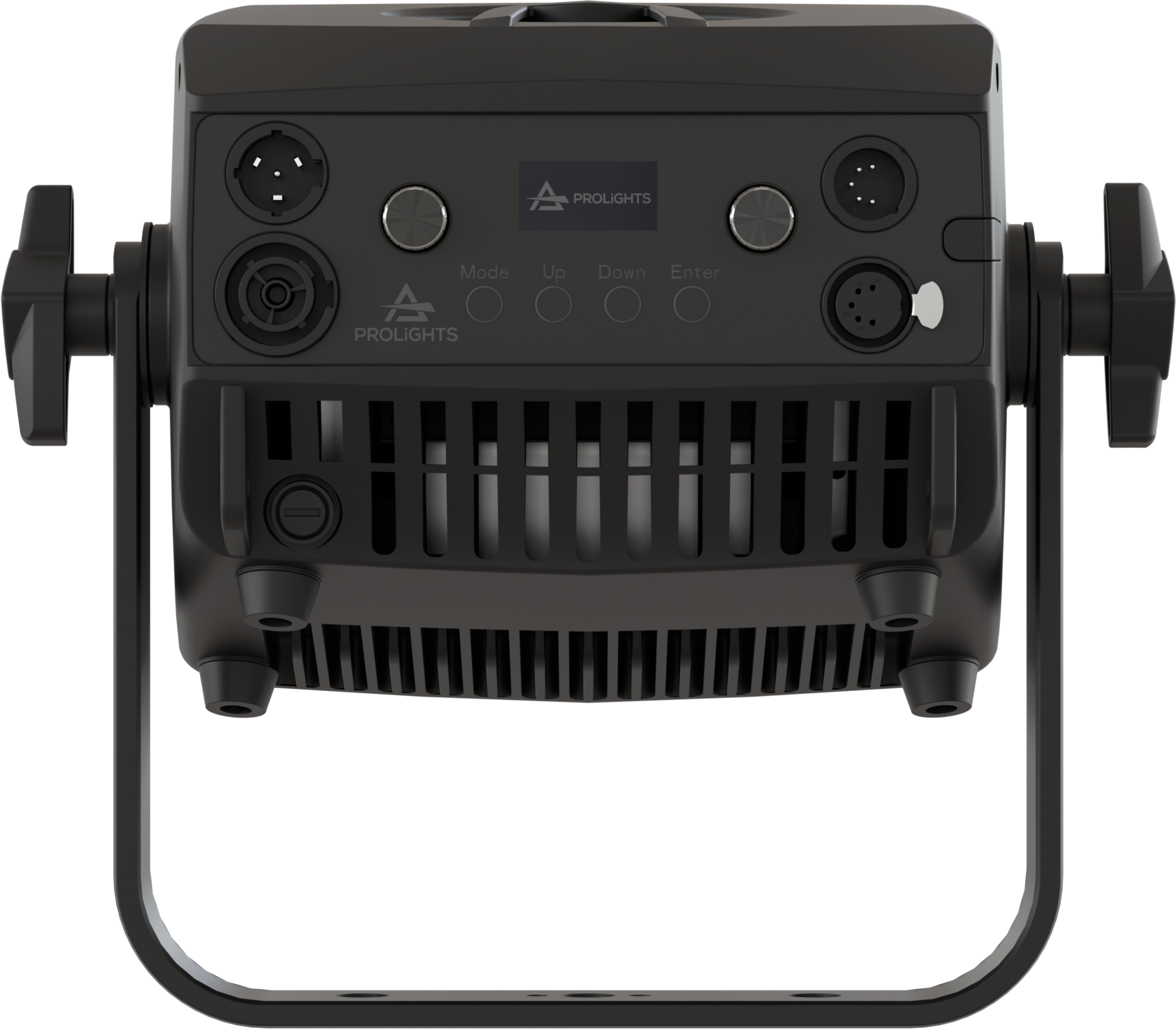

Stand Alone: 2 rotatory knobs
-
DMX channels: 1/2/5/9/10/12/18 channel
-
Wireless Control: optional, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
-
RDM: RDM for remote monitoring and settings
-
Display: Graphic User Interface
-
Firmware upgrade: yes, via USB - DMX interface (UPBOX1) not included
-
Master/Slave: for synchronised operation of more units linked in a chain
-
Dimmer: linear 0 ~ 100% electronic dimmer
-
Dimmer curves: 4 selectable dimming modes available
-
Strobe / shutter: 1 - 30 Hz, electronic
-
Operating temperature: -10° ~ +45°
-
Selectable PWM: 600 ~ 40.000 Hz
-
Mains power supply: 100-240V - 50/60Hz
-
Max power consumption: 154W
-
Output (at 230V):7 units on a single power line
-
Power factor:> 0,94
-
IP rating: 20
-

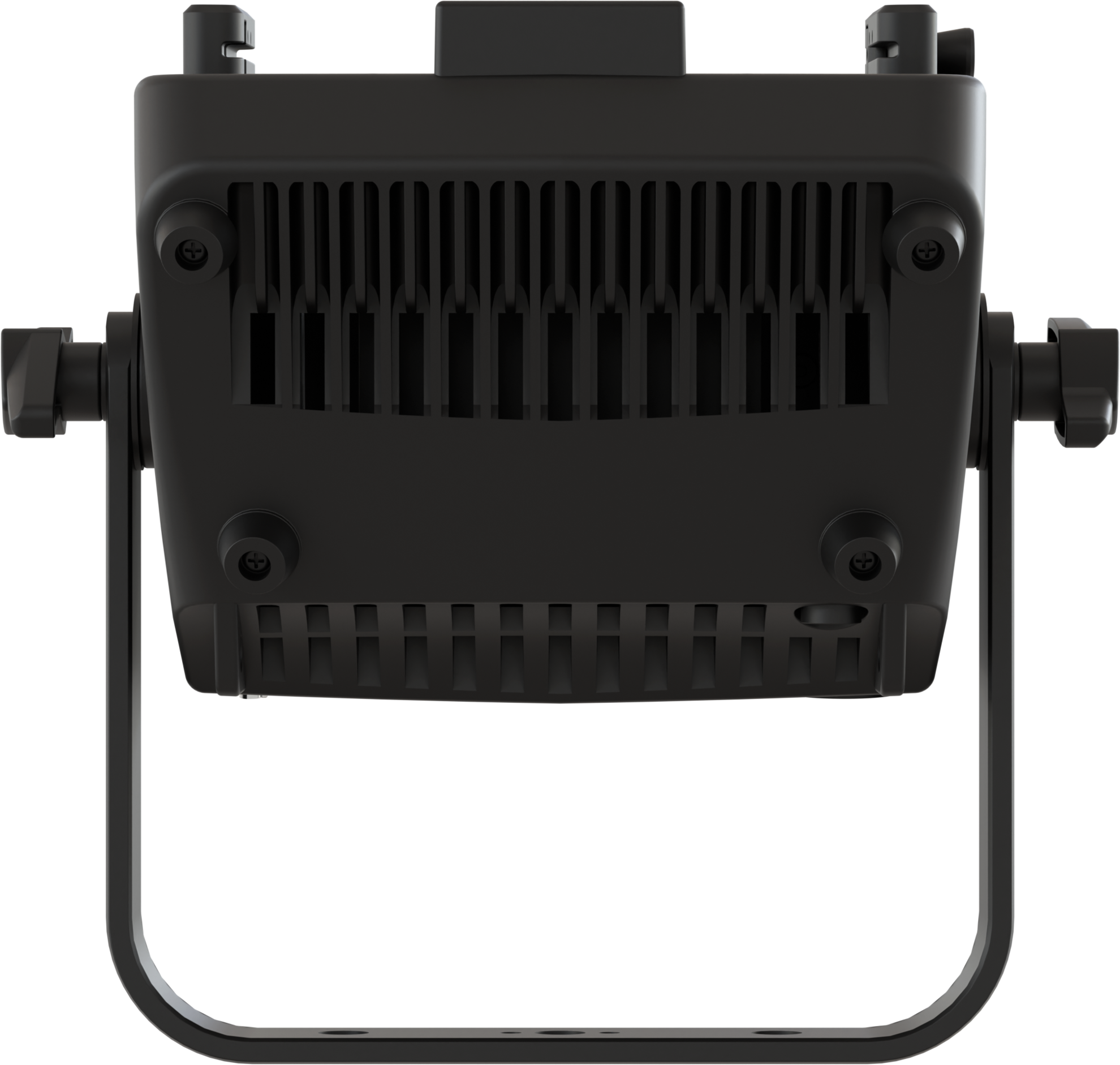

Cooling: active, silent operation
-
Suspension and fixing: bracket for hanging and positioning
-
Signal connection: Amphenol XLR 5p IN/OUT connectors
-
Power connection: Seetronic powerCON TRUE IP65 IN/OUT
-

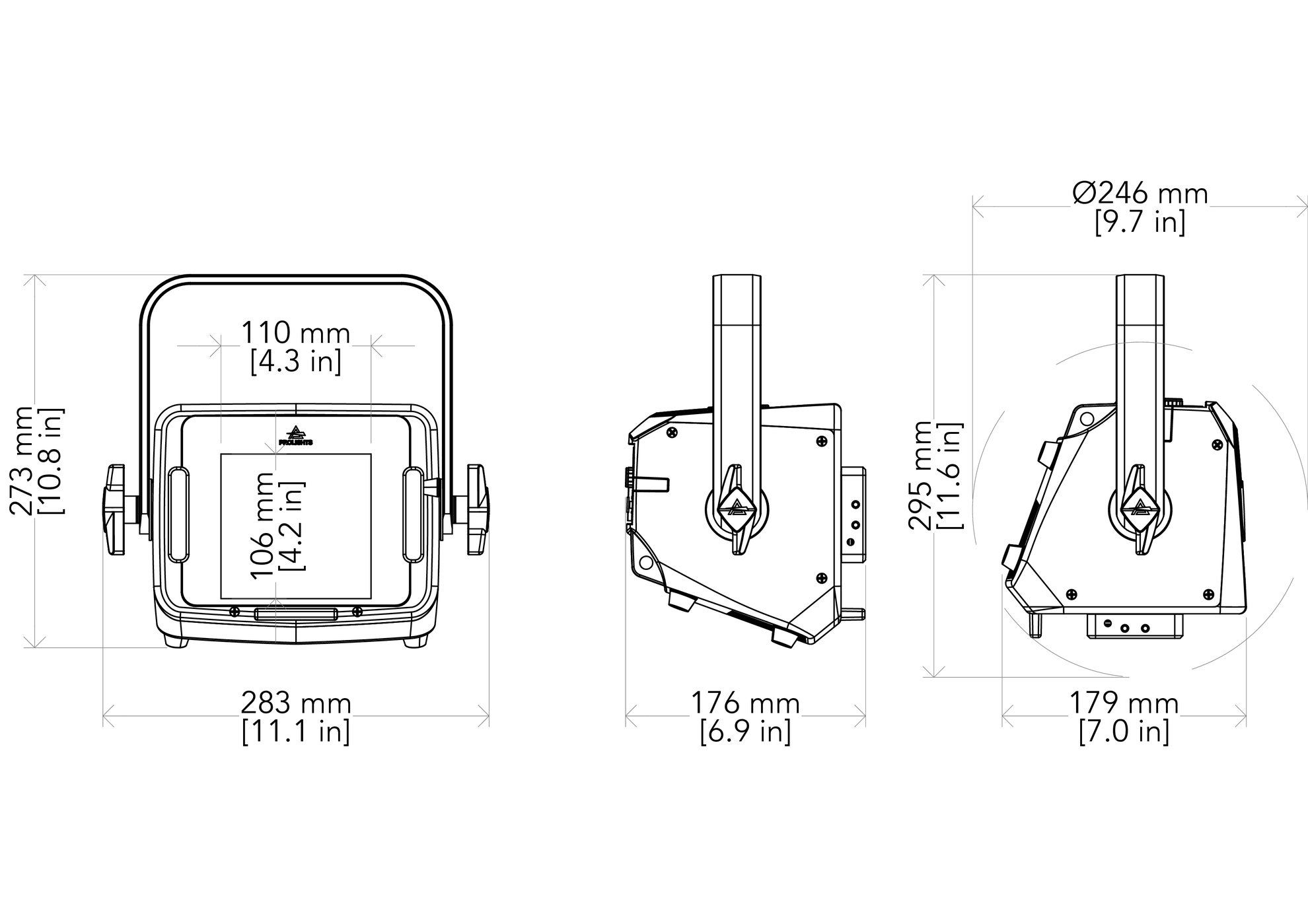

Dimensions (WxHxD): 283x273x176mm
-
Weight: 3,2kg
-
Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
Prolights
PROLIGHTS is the professional lighting division of Music & Lights S.r.l., an Italian company specialized in the manufacture of technologies for the show industry.
The PROLIGHTS brand was established in 2001 with a focus on the design and manufacture of professional lighting & video products for the entertainment, event, broadcast and installation markets.
PROLIGHTS is headquartered in Minturno, Italy, where the companies commerical, operational and R&D centres are all located.
PROLIGHTS continues to experience a sustained growth across all sectors, with its products found on stages and in studios all over the world. Founder Franco Sorabella, and his son Fabio, are both actively involved in the day-to-day running of the business and in the development of the product range. |
