LUMIPIX 12UQ PRO - LED Linear Batten 12px 25°

532030600

12x8W RGBW/FC high-efficiency LED batten12x 8W leds RGBW 3+5p+powerCON,WIFI . Opt. Receiv

LumiPix 12UQPRO is a 1 m long linear colour changer equipped with 12 high-efficiency RGBW/FC LED (8W each). The control system is customisable allowing section control and advanced possibilities in effect generation such as LED video or sound activated arrays.

Main features:

  • Pixel control: section control
  • Advanced on-board effects generation
  • USB port for USB WIFI transceiver (optional)
  • Flicker-free operations



Technical Specifications


LIGHT SOURCE

  • Source: 12x8W RGBW LEDs
  • Luminous flux: 2'241
  • Lux: 1'813lx @3 m full
  • Source life expectancy: > 50.000 h

OPTICS

  • Beam angle: 19°
  • Field angle: 36°
  • Lens diameter: 38mm / 1.5''
  • Additional optics: 45° (optional)

COLOUR SYSTEM

  • Colour mixing: RGBW / FC
  • Colour wheel: virtual colour wheel with macros
  • Macros: several pre-built pixel macros with adjustable speed

DYNAMIC EFFECTS

  • Static mode: selection of static colour
  • Manual mode: manual adjustment of colour
  • Auto mode: built-in programs with execution speed adjustment
  • Sound mode: music activation through internal microphone and sensitivity control

BODY

  • Body: sturdy die-cast aluminium body
  • Body colour: black

CONTROL

  • Protocols: DMX512
  • DMX channels: 4 / 7 / 9 / 12 / 17channel
  • Pixel control: 1 / 3 section control
  • Wireless Control: optional, proprietary protocol compatible with WIFIBOX, WDBOX
  • Display: LED display user interface
  • Firmware upgrade: yes, via USB - DMX interface (UPBOXPRO/UPBOX1) not included
  • IR: infrared sensor controlled by remote
  • Master/Slave: for synchronised operation of more units linked in a chain

ELECTRONICS

  • Dimmer: linear 0 ~ 100% electronic dimmer
  • Dimmer curves: 4 selectable dimming modes available
  • Strobe / shutter: 1 - 28 Hz, electronic
  • Operating temperature: 0° ~ +45°
  • LED Control: flicker free frequency with adjustable PWM

ELECTRICAL

  • Mains power supply: 100-240V - 50/60Hz
  • Max power consumption: 73,6W
  • Max power consumption (at 120V): 71W
  • Output (at 230V): 19 units on a single power line
  • Output (at 120V): 7
  • Inrush current: 110VAC/9.7A, 230VAC/11.07A

PHYSICAL

  • IP rating: 20
  • Cooling: passive cooling and fan-free

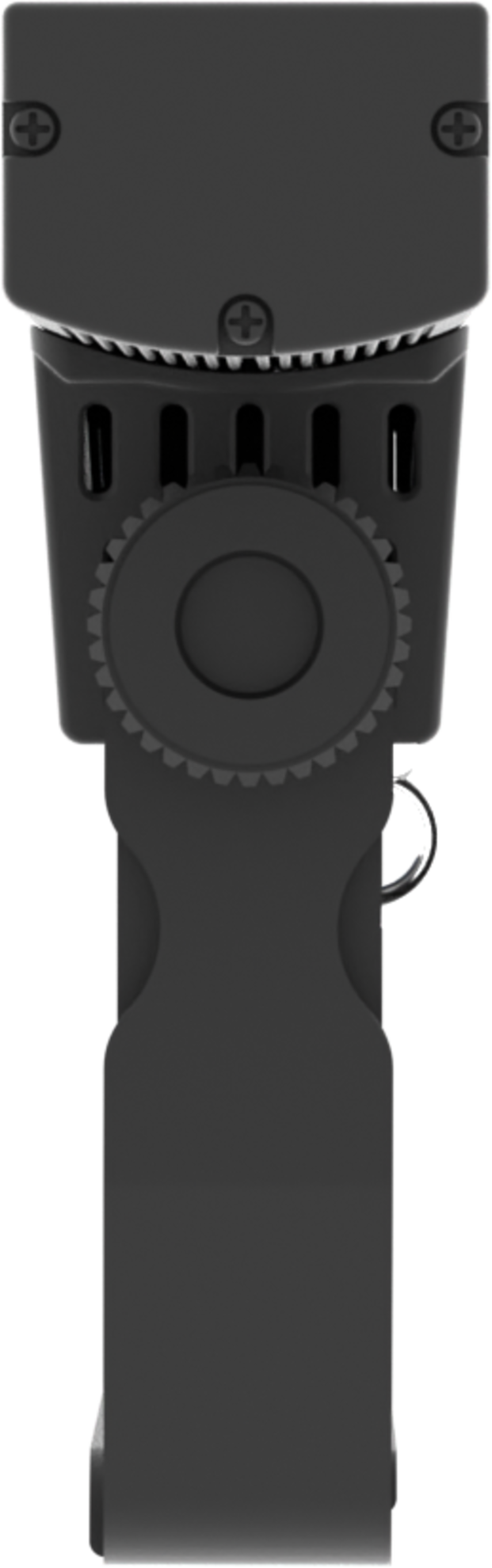

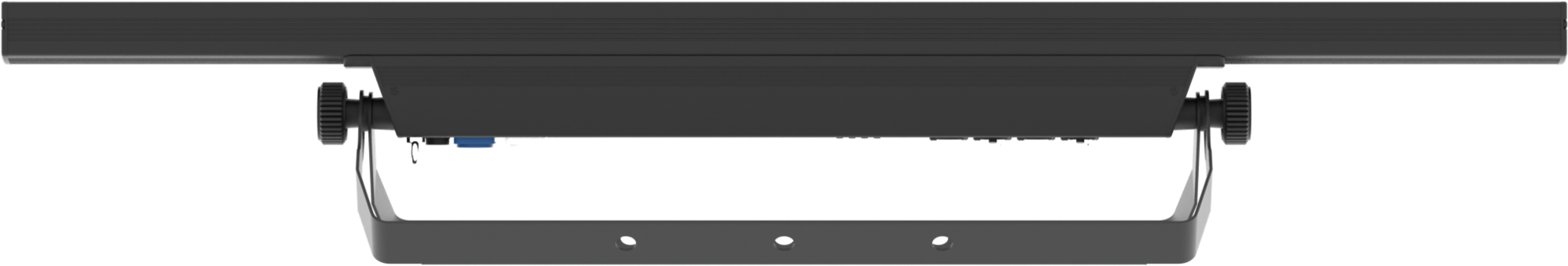

  • Suspension and fixing: double hanging bracket suitable for safe hanging and for floor positioning

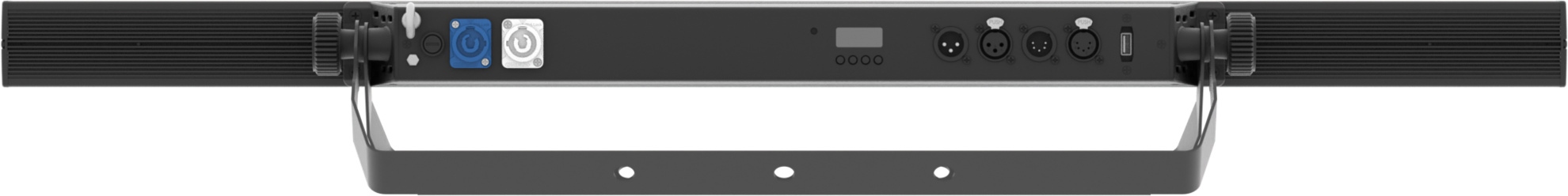

  • Data: USB port for USB WIFI transmitter (optional)
  • Signal connection: XLR 3p + 5p IN/OUT connectors
  • Power connection: Seetronic powerCON IN/OUT connectors
  • Dimensions (WxHxD): 1000x56x168mm / 39.37''x2.2''x6.61''
  • Weight: 3,3kg / 7.28lbs

CERTIFICATIONS / APPROVALS

  • Certifications / Approvals: CE, UKCA, RCM

BOX CONTENT

  • 1 x LUMIPIX12UQPRO
  • 1 x 1,5 meters power cable (BARE END - SEETRONIC power connector)
  • User Manual
Supplier SKU
LUMIPIX12UQPRO
