Keep it compact
grandMA3 compact / grandMA3 compact XT
Compact flexibility for every stage
Do you need a console with a small form factor, but no compromises in features and flexibility? Are you working in a small venue, a television studio or house of worship and you need a powerful lighting control? Or do you need a lightweight model which is easy to transport? Then the grandMA3 compact consoles are the best choice for you.

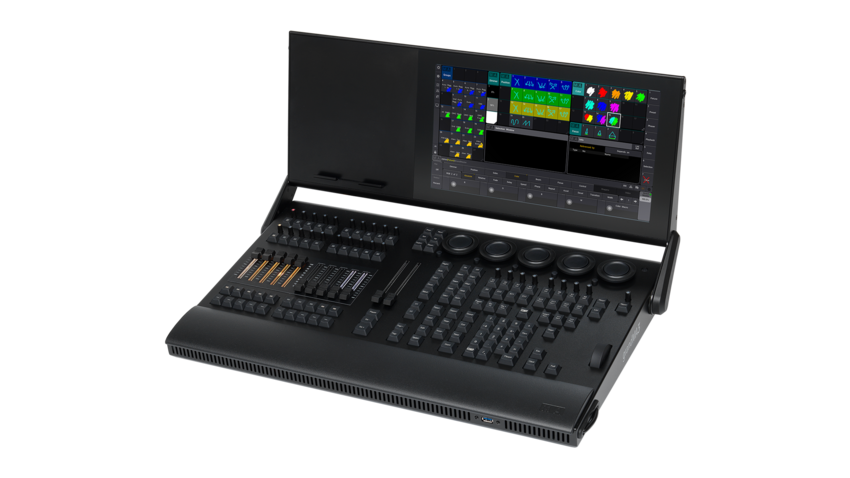

grandMA3 compact
With the grandMA3 compact you get the smallest form factor in the grandMA3 control range, with the full grandMA3 system benefits. This console provides a travel-ready size with one screen and all connections directly on board. It´s ideal for club tours, small TV studios or architectural lighting jobs.

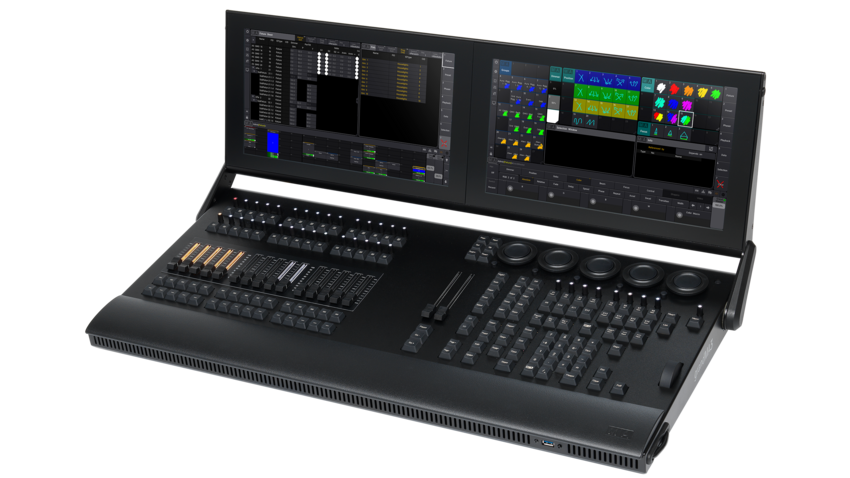

grandMA3 compact XT
The grandMA3 compact XT is the larger of the two compact models. You get two big screens for your personal views and a powerful section with 60 physical playbacks. You can find it at small and mid-sized festivals, theatres, houses of worship and cruise lines.
Flexible. Portable. Scalable.
Flexible.
The compact consoles run the same grandMA3 software as the bigger consoles - so there are no compromises in the feature set. Together with the powerful playback area and all connections directly on board, you get the full flexibility.
Portable.
The small form factor together with the foldable monitor wing provide an ideal setup for transport and touring. Wherever you go, the grandMA3 compact series delivers the freedom to create stunning looks with low space requirements.
Scalable.
The consoles are scalable up to 250 000 parameters with the use of additional grandMA3 processing units. Both models offer the full benefits of the grandMA3 system - from a standalone console, via simple backup up to the most complex multi-user environments.
The compact battle
Want to know which console is the right fit for you? Dive into the video and discover the key differences between the grandMA3 compact and grandMA3 compact XT. From features and performance – get a clear, in-depth look at what sets these two models apart. Whether you’re looking for ultimate portability or extra power for larger setups, this video will help you make the right choice for your next project.
| Specs | grandMA3 compact | grandMA3 compact XT |
| DMX outputs/ DMX inputs | 6 DMX outputs, 1 DMX input | 6 DMX outputs, 1 DMX input |
| Parameters | 8 192 | 8 192 |
| Internal foldable monitor multi-touch screen | 1 | 2 |
| Rotary RGB backlit encoder | 29 | 39 |
| Dual encoders | 5 | 5 |
| Backlit motorized 60 mm faders | 10 | 15 |
| Separate playbacks | 40 | 60 |
| Assignable x-keys | 16 | 16 |
| USB connectors | 5 | 5 |
| Dimensions | 661 x 563 x 325 (max. 410) mm / 26 x 23 x 13 (max. 17) in (width x depth x height, unfolded) |
661 x 563 x 325 (max. 410) mm / 26 x 23 x 13 (max. 17) in (width x depth x height, unfolded) |
| Net weight | 16 kg / 36 lbs | 20 kg / 45 lbs |
